SWITCH / LEVER

ELECTRICAL 1 FOR YAMAHA R3 2024

ELECTRICAL 2

Item numbers

IGNITION COIL ASSY

B1X823100000 B1X823100000

110,25 $

Unit Price

BATTERY (GSGTZ8V) "FA"

1WDH21000000

GTZ8V0000000

134,63 $

Unit Price

PAD, BATTERY

1WDH21210000 1WDH21210000

29,30 $

Unit Price

BAND, BATTERY

1WDH21310000 1WDH21310000

23,44 $

Unit Price

FAISCEAU DE FILS COMPLET

B1XH25900000 B1XH25900000

Not available

FUSE (7.5A BL)

1WDH21512000 1WDH21512000

3,15 $

Unit Price

FUSE (15A-BL)

1WDH21511000 1WDH21511000

3,15 $

Unit Price

FUSE

1WDH21513000 1WDH21513000

3,17 $

Unit Price

RELAY ASSY

1WDH19500000 1WDH19500000

78,87 $

Unit Price

STARTER RELAY ASSY

1WDH19400000 1WDH19400000

58,21 $

Unit Price

FUSE

1WDH21510100 1WDH21510100

1,98 $

Unit Price

BAND

1WDH21550000 1WDH21550000

7,12 $

Unit Price

BOLT

913120500800 913120500800

0,58 $

Unit Price

WIRE, PLUS LEAD

2WDH21150100 2WDH21150100

56,39 $

Unit Price

WIRE, MINUS LEAD

B6WH21160000 B6WH21160000

59,99 $

Unit Price

BAND

BR5H25920000 BR5H25920000

20,80 $

Unit Price

BAND

904643680000

1UA825910000

3,11 $

Unit Price

CLAMP

904647080000 904647080000

1,77 $

Unit Price

CLAMP (5MX1)

904642280000 904642280000

0,77 $

Unit Price

CLAMP

904647080000 904647080000

1,77 $

Unit Price

MAIN SWITCH STEERI

B1XH25010000

BRAH25010000

236,77 $

Unit Price

BLANK KEY

1WDH25110900 1WDH25110900

26,29 $

Unit Price

BOLT

90109060G400

901090628200

5,89 $

Unit Price

MAIN SW. STRG. LOCK SUB ASSY

B1XXH2500000 B1XXH2500000

569,13 $

Unit Price

SWITCH, SIDE STAND

1WDH25660100

1WDH25660200

214,53 $

Unit Price

BOLT, SOCKET

901100580900

913170501800

1,98 $

Unit Price

BAND

1WDH25910000 1WDH25910000

9,65 $

Unit Price

CLAMP

904642600100 904642600100

2,48 $

Unit Price

PROTECTER, WIRE HA

2D1825890200 2D1825890200

19,70 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

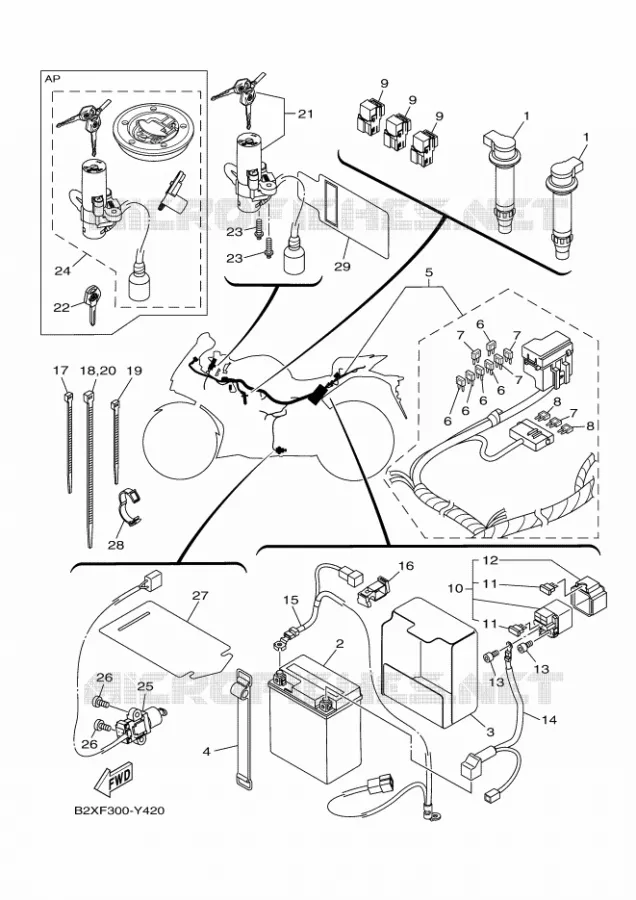

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha R3 of 2024. Let us know if you have any questions.
