FENDER

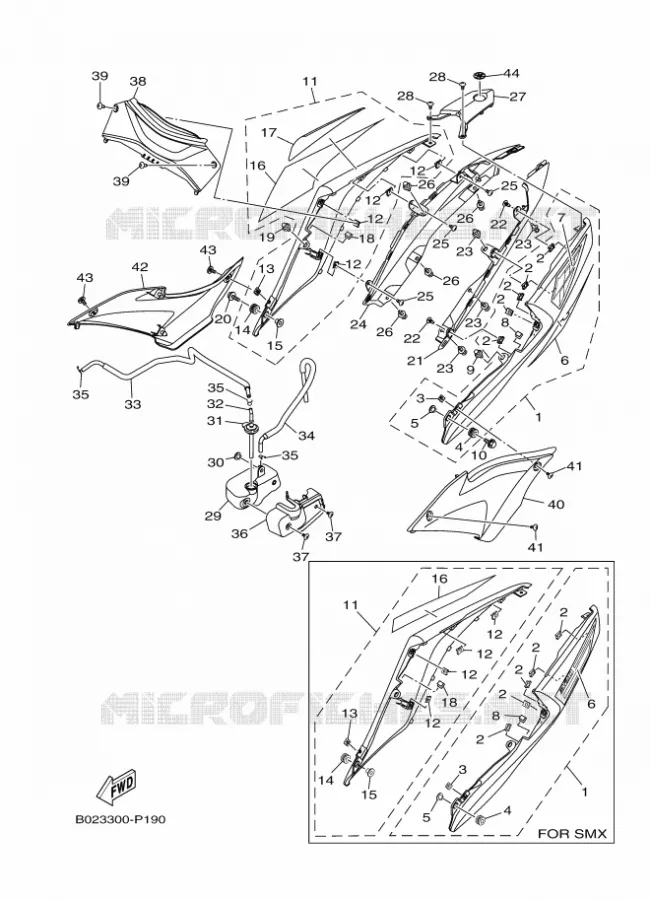

SIDE COVER FOR YAMAHA R3 ABS 2015

SWINGARM / SHOCK ABSORBER

COVER, SIDE 1

1WDXF17130P0 1WDXF17130P0

121,95 $

Unit Price

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

NUT, SPRING

90183050A700 90183050A700

6,38 $

Unit Price

GROMMET (3P91)

904801280800 904801280800

0,74 $

Unit Price

COLLAR

903870689900 903870689900

4,88 $

Unit Price

GRAPHIC, 1

2MSF17F10000 2MSF17F10000

9,25 $

Unit Price

SEAL

31BF83070000 31BF83070000

1,29 $

Unit Price

RIVET

902690608100 902690608100

3,65 $

Unit Price

BOLT, WITH WASHER (30X)

901190681000

901190609600

3,94 $

Unit Price

COVER, SIDE 2

1WDXF17230P0 1WDXF17230P0

109,25 $

Unit Price

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

NUT, SPRING

90183050A700 90183050A700

6,38 $

Unit Price

GROMMET (3P91)

904801280800 904801280800

0,74 $

Unit Price

COLLAR

903870689900 903870689900

4,88 $

Unit Price

GRAPHIC, 2

2MSF17F20000 2MSF17F20000

9,25 $

Unit Price

SEAL

31BF83070000 31BF83070000

1,29 $

Unit Price

RIVET

902690608100 902690608100

3,65 $

Unit Price

BOLT, WITH WASHER (30X)

901190681000

901190609600

3,94 $

Unit Price

MOLE, SIDE COVER 1

1WDF171L0000 1WDF171L0000

17,31 $

Unit Price

SCREW, TAPPING(4MV)

977075001600 977075001600

2,15 $

Unit Price

RIVET

902690608100 902690608100

3,65 $

Unit Price

MOLE, SIDE COVER 2

1WDF171M0000 1WDF171M0000

15,51 $

Unit Price

SCREW, TAPPING(4MV)

977075001600 977075001600

2,15 $

Unit Price

RIVET

902690608100 902690608100

3,65 $

Unit Price

MOLE, SIDE COVER 3

1WDF171N0000 1WDF171N0000

12,54 $

Unit Price

SCREW, TAPPING(4MV)

977075001600 977075001600

2,15 $

Unit Price

TANK, RECOVERY

1WDF18710000

1WDF18710100

38,10 $

Unit Price

COLLAR

903870685700 903870685700

1,06 $

Unit Price

CAP

1WDF18750000

1WDF18750200

14,90 $

Unit Price

ELBOW

3C1F18280000

26H218280000

15,55 $

Unit Price

PIPE 1

1WDF18160000

1WDF18160200

76,18 $

Unit Price

PIPE 2

1WDF18170000 1WDF18170000

23,52 $

Unit Price

CLIP 101235600

904670800300 904670800300

5,61 $

Unit Price

COVER

1WDF172W0000 1WDF172W0000

21,74 $

Unit Price

BOLT

901110500300 901110500300

3,64 $

Unit Price

COVER, SIDE 3

1WDF173100P0 1WDF173100P0

58,61 $

Unit Price

SCREW, ROUND TAPPING

901600581000 901600581000

2,10 $

Unit Price

COVER, SIDE 5

1WDF171E0000 1WDF171E0000

23,26 $

Unit Price

BOLT

901110500300 901110500300

3,64 $

Unit Price

COVER, SIDE 6

1WDF171X0000 1WDF171X0000

28,36 $

Unit Price

BOLT

901110500300 901110500300

3,64 $

Unit Price

TUNING FORK MARK

1PAF836B0000

1PAF836B0100

32,41 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SIDE COVER of your Yamaha YZF-R3A of 2015. Let us know if you have any questions.
