STAND / FOOTREST

LEG SHIELD FOR YAMAHA MAJESTY 1996

IGNITION

PROTEGE-JAMBES COMPLET

4HC283000000 4HC283000000

Not available

COUVERCLE

4HC283650000 4HC283650000

Not available

CHARNIERE

35R217960000 35R217960000

TAPPING SCREW, PANHEAD .2 S

977074051200

977074061200

1,85 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

BOLT, HEXAGON

970270601200

970170601200

2,48 $

Unit Price

WASHER, PLATE (6K8)

9020106M0200 9020106M0200

4,21 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

SCREW, TAPPING(4MV)

977075001600 977075001600

2,15 $

Unit Price

AMORTISSEUR

4HC283710100 4HC283710100

Not available

COUVERCLE

4HC2478A0000 4HC2478A0000

Not available

LOCK, SIDE COVER

35R217080100

4BH217080100

109,35 $

Unit Price

PANNEAU, FOURCHE NUE 1

4HC2836K0000 4HC2836K0000

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

AMORTISSEUR 1

4HC2836T0000 4HC2836T0000

Not available

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

CORPS, DE CARENAGE

4HC28351014B 4HC28351014B

Not available

CORPS, DE CARENAGE

4HC2835101P0 4HC2835101P0

Not available

CORPS, DE CARENAGE

4HC2835101T9 4HC2835101T9

Not available

CORPS, DE CARENAGE

4HC28351104B 4HC28351104B

Not available

CORPS, DE CARENAGE

4HC2835110P0 4HC2835110P0

Not available

CORPS, DE CARENAGE

4HC2835110T9 4HC2835110T9

Not available

NUT 1

3VP215350000

25G215350000

5,44 $

Unit Price

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

BOLT, WITH WASHER

901190606000

901190622600

1,39 $

Unit Price

BOLT(3KJ)

90109063F100 90109063F100

4,46 $

Unit Price

SCREW, TAPPING(4MV)

977075001600 977075001600

2,15 $

Unit Price

SCREW, TAPPING(3VP)

901630500600 901630500600

2,91 $

Unit Price

PANNEAU, FOURCHE NUE 2

4HC2836L0000 4HC2836L0000

Not available

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

PARE-BRISE

4HC2837U0000 4HC2837U0000

Not available

TRIM

29L283760000 29L283760000

24,47 $

Unit Price

SCREW, ROUND HEAD(1UX)

901500502400 901500502400

4,57 $

Unit Price

MOULURE 1

4HC28345007B 4HC28345007B

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

MOLE 3

1NL283470000

1NL283470100

7,05 $

Unit Price

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

COUVERCLE

4HC283850100 4HC283850100

Not available

COUVERCLE

4HC283851100 4HC283851100

Not available

NUT, SPRING(1YT)

901830504200 901830504200

1,46 $

Unit Price

EMBLEME

4HC283150000 4HC283150000

Not available

REFLECTOR, FRONT 1

4AG851110000 4AG851110000

15,80 $

Unit Price

NUT, FLANGE(4MV)

957070650000 957070650000

2,10 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

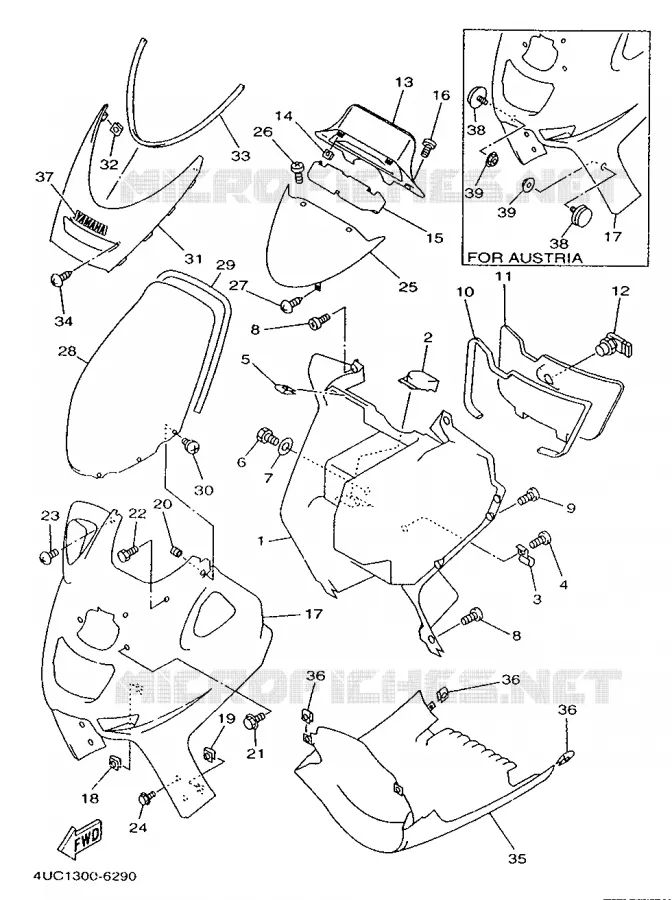

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEG SHIELD of your Yamaha YP250 of 1996. Let us know if you have any questions.
