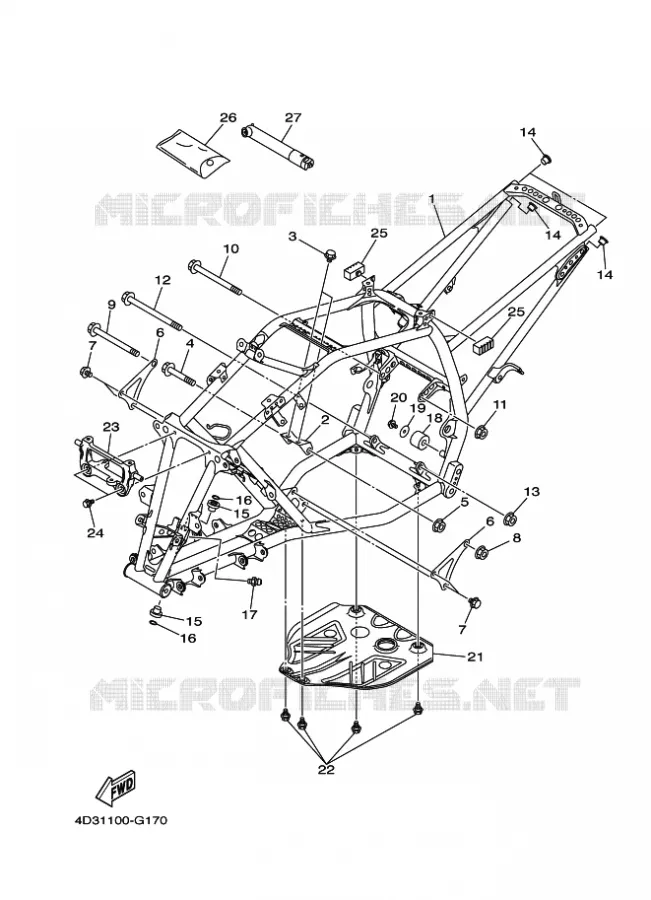

FRAME FOR YAMAHA RAPTOR 2011

FRONT FENDER

Item numbers

CADRE COMP.

4D3211101033 4D3211101033

Not available

STAY, ENGINE 2

4D3213150000 4D3213150000

21,97 $

Unit Price

BOLT, FLANGE

958120801400

958170801400

4,16 $

Unit Price

BOLT, FLANGE

901051022100 901051022100

5,73 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

STAY, ENGINE 3

4D3213160000 4D3213160000

16,35 $

Unit Price

BOLT, FLANGE

958120801400

958170801400

4,16 $

Unit Price

BOLT, FLANGE

901051022000 901051022000

9,16 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

BOLT, FLANGE

901051021900 901051021900

9,61 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

BOLT, FLANGE

901051021400 901051021400

9,89 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

PLUG(55K)

903381614800 903381614800

15,10 $

Unit Price

BUSH, SOLID (J22)

903811504000 903811504000

27,70 $

Unit Price

O-RING (22U)

932101541400

932101556600

5,61 $

Unit Price

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

TENSIONER

4D3221780000 4D3221780000

14,57 $

Unit Price

WASHER, PLATE

902010805400 902010805400

2,51 $

Unit Price

BOLT, FLANGE

958220801200

958170801200

3,75 $

Unit Price

PROTECTOR, ENGINE

4D3214710000 4D3214710000

37,42 $

Unit Price

BOLT

901090617200 901090617200

2,18 $

Unit Price

SUPPORT

4D32137G0000 4D32137G0000

Not available

BOLT

901090617200 901090617200

2,18 $

Unit Price

PAD, SEAT

3C3247410000 3C3247410000

8,62 $

Unit Price

TOOL KIT

4D3281000100 4D3281000100

43,56 $

Unit Price

GAUGE, AIR

1NV2811A0100 1NV2811A0100

55,02 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Yamaha YFM250R of 2011. Let us know if you have any questions.
