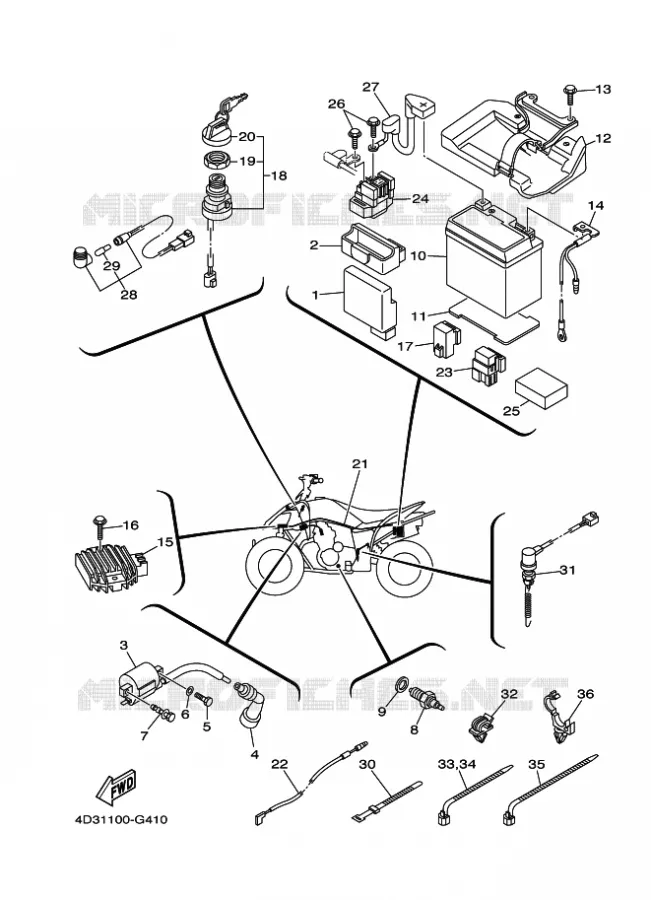

ELECTRICAL 1 FOR YAMAHA RAPTOR 2009

ELECTRICAL 2

Item numbers

C.D.I. UNIT ASSY

4D3855400000 4D3855400000

538,28 $

Unit Price

BAND

4D3855460000 4D3855460000

14,70 $

Unit Price

3NS823101000

3KJ823101300

60,54 $

Unit Price

PLUG CAP ASSY

4VW823700000 4VW823700000

71,66 $

Unit Price

BOLT (4MY)

970020602000

970070602000

2,42 $

Unit Price

WASHER, PLAIN (646)

929020660000

929900660000

2,09 $

Unit Price

BOLT (21V)

901090672300 901090672300

2,06 $

Unit Price

NEUTRAL SWITCH ASSY

3GB825400100 3GB825400100

28,15 $

Unit Price

GASKET (1KH, 1.0T)

904301014800 904301014800

6,35 $

Unit Price

BAT YTZ7S (PTZ7S) YU W

1S4821001000

YTZ7S0000000

234,52 $

Unit Price

SEAT, BATTERY

4D3821220000 4D3821220000

13,82 $

Unit Price

BATTERY PLATE COMP

4D3821060000 4D3821060000

86,18 $

Unit Price

BOLT, FLANGE

958120601600 958120601600

3,30 $

Unit Price

WIRE, MINUS LEAD

4D3821160000 4D3821160000

26,29 $

Unit Price

RECTIFIER & REGULATOR ASSY

5GT819600000 5GT819600000

386,49 $

Unit Price

BOLT, FLANGE

958020602000

958110602000

3,91 $

Unit Price

RELAY ASSY

1RL819509200

12R819500200

159,43 $

Unit Price

MAIN SWITCH ASSY

5LP825100000

5LP825100100

102,20 $

Unit Price

NUT, MAIN SWITCH

3HN825690000 3HN825690000

3,98 $

Unit Price

CAP, KEY

3HN825790000 3HN825790000

16,30 $

Unit Price

FAISCEAU DE FILS COMPLET

4D3825900000 4D3825900000

Not available

WIRE, LEAD

4D3825410000 4D3825410000

17,97 $

Unit Price

RELAY ASSY

5DM819500000

5DM819500100

48,92 $

Unit Price

STARTER RELAY ASSY (RC19-077A)

4D3819400000 4D3819400000

111,75 $

Unit Price

DAMPER

4D38252R0000 4D38252R0000

3,02 $

Unit Price

BOLT, FLANGE

950220600800 950220600800

1,04 $

Unit Price

WIRE, PLUS LEAD

4D3821150000 4D3821150000

26,29 $

Unit Price

PILOT LIGHT ASSY

4D3835300000 4D3835300000

31,29 $

Unit Price

BULB (12V-1.7W)

5GH835160000

3FV835170000

10,47 $

Unit Price

CLAMP

437839360100

904643001400

1,33 $

Unit Price

STOP SWITCH ASSY

4D3825300000 4D3825300000

42,02 $

Unit Price

CLAMP

904640701100 904640701100

2,46 $

Unit Price

CLAMP(4FM)

904641307300

904641519500

4,93 $

Unit Price

CLAMP(4FM)

904641307300

904641519500

4,93 $

Unit Price

CLAMP(4FM)

904641519500 904641519500

4,93 $

Unit Price

CLAMP

904642001000 904642001000

3,58 $

Unit Price
