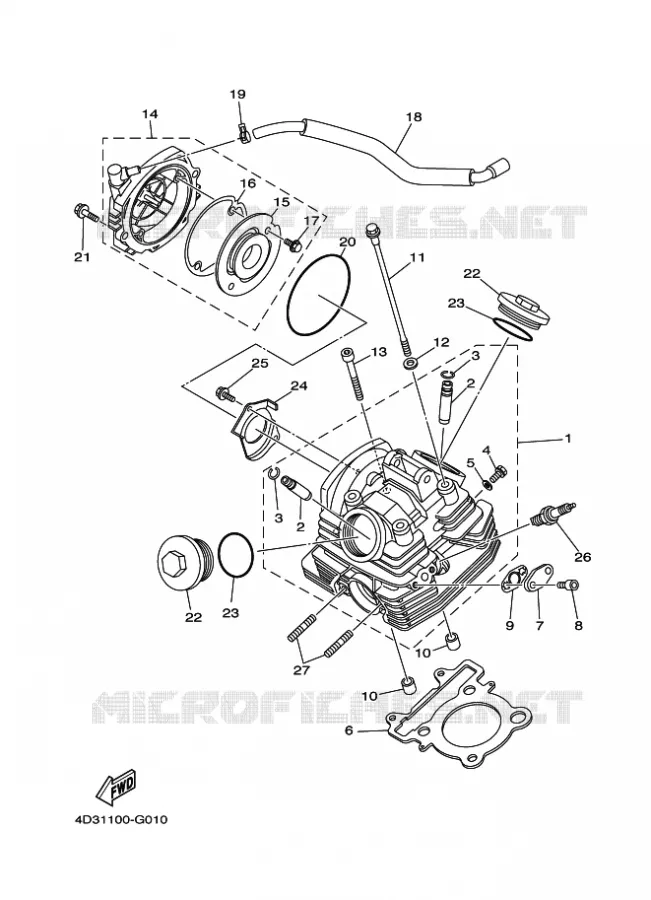

CYLINDER HEAD FOR YAMAHA RAPTOR 2009

CYLINDER

Item numbers

CYLINDER HEAD ASSY

3C5111020000 3C5111020000

783,49 $

Unit Price

GUIDE, INTAKE VALVE

5H0111331100 5H0111331100

76,31 $

Unit Price

CIRCLIP (4G0)

934401008500 934401008500

5,61 $

Unit Price

SCREW, HEXAGON

901530600200 901530600200

0,52 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

GASKET, CYLINDER HEAD 1

5XT111810000 5XT111810000

33,65 $

Unit Price

PLATE 2

4D31112F0000 4D31112F0000

19,15 $

Unit Price

BOLT, SOCKET

913120601600

913170601600

3,51 $

Unit Price

GASKET

5XT148150000 5XT148150000

8,08 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

BOLT, FLANGE

901050816000 901050816000

8,10 $

Unit Price

WASHER, PLATE 8A7

902010860900 902010860900

6,54 $

Unit Price

BOLT, SOCKET

913120804500

913170804500

8,97 $

Unit Price

COVER, CYLINDER HEAD 1

4D3111900000 4D3111900000

141,25 $

Unit Price

PLATE, BREATHER

5XT111650000 5XT111650000

19,14 $

Unit Price

GASKET, CYLINDER HEAD SIDE

4D3111960000 4D3111960000

3,67 $

Unit Price

BOLT, FLANGE

901050612600

950220601000

1,04 $

Unit Price

PIPE, BREATHER 1

4D3111660000 4D3111660000

36,19 $

Unit Price

CLIP (7K7)

904671205300

904671104400

8,37 $

Unit Price

O-RING (5H0)

932110547100 932110547100

16,49 $

Unit Price

BOLT, FLANGE

950220602000 950220602000

1,27 $

Unit Price

COVER, CYLINDER HEAD SIDE 2

4D3111860000 4D3111860000

26,41 $

Unit Price

O-RING

932105400100 932105400100

8,16 $

Unit Price

PLATE

5XT1111F0000 5XT1111F0000

23,69 $

Unit Price

BOLT, FLANGE

901050607800

950220601200

1,04 $

Unit Price

SPARK PLUG DR7EA

947010034500 947010034500

4,95 $

Unit Price

BOLT, STUD

901160802300 901160802300

9,89 $

Unit Price
