STARTER MOTOR

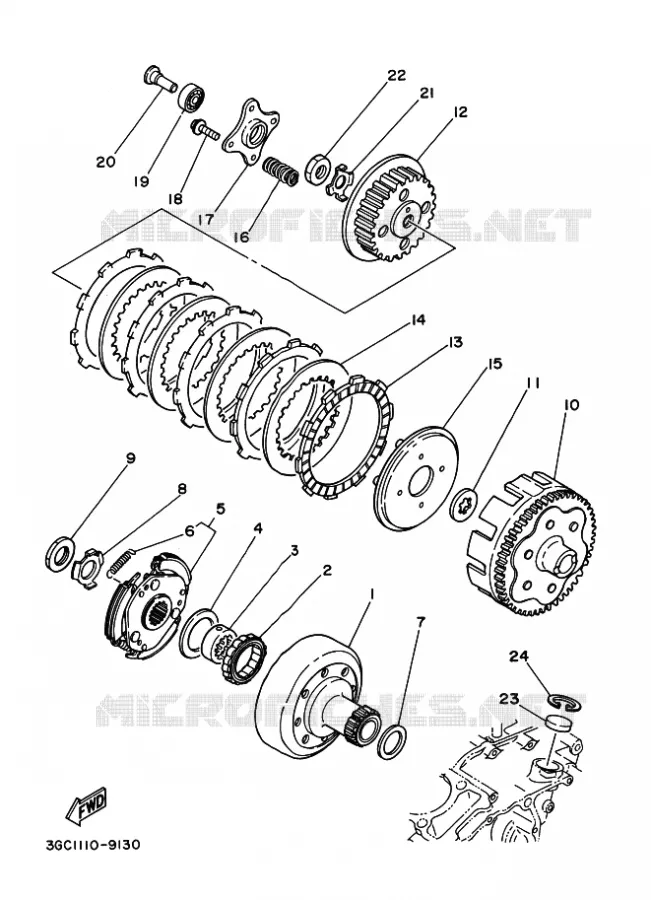

STARTER CLUTCH FOR YAMAHA TIMBERWOLF 1996

TRANSMISSION

Item numbers

CLUTCH HOUSING COMP.

3GC166110000 3GC166110000

441,80 $

Unit Price

BEARING, ONE WAY

21V166640000 21V166640000

163,64 $

Unit Price

BEARING RETAINER

21V166650100 21V166650100

26,36 $

Unit Price

WASHER, PLATE(3GC)

90201404M600 90201404M600

9,33 $

Unit Price

CLUTCH CARRIER ASSY

4BD166200000

Not available

SPRING, CLUTCH WEIGHT 1

3GC166260000

3GC166260100

22,60 $

Unit Price

WASHER, PLATE (21V)

90201266F600 90201266F600

4,71 $

Unit Price

WASHER, LOCK(1YW)

902152225900 902152225900

16,61 $

Unit Price

NUT(1NU)

901702237100 901702237100

15,81 $

Unit Price

CLOCHE D'EMBRAYAGE CPLTE

2H7161500000 2H7161500000

Not available

PLATE, THRUST 1

5H0161540000 5H0161540000

16,94 $

Unit Price

CLUTCH BOSS

21V163710100 21V163710100

122,33 $

Unit Price

PLATE, FRICTION

21V163210000

3XP163210000

21,92 $

Unit Price

PLATE, CLUTCH 1

257163240000

257163241000

22,96 $

Unit Price

DISQUE 1, PRESSION

21V163510000 21V163510000

Not available

SPRING, COMPRESSION(3GC)

90501243J700 90501243J700

10,10 $

Unit Price

DISQUE 2, PRESSION

21V163520000 21V163520000

Not available

SCREW, WITH WASHER (537)

901590501100 901590501100

3,93 $

Unit Price

BRG, R-B 6000 26MM 19G KY

933060000400 933060000400

16,32 $

Unit Price

DISQUE, DEBRAYAGE

1YW163580C00 1YW163580C00

Not available

WASHER, LOCK (25G)

902151418600 902151418600

11,27 $

Unit Price

NUT (5H0)

901701428400 901701428400

5,07 $

Unit Price

PLUG (21V)

903382613600 903382613600

15,78 $

Unit Price

CIRCLIP (3Y1)

934202805500 934202805500

2,16 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER CLUTCH of your Yamaha YFB250 of 1996. Let us know if you have any questions.
