SWITCH / LEVER

ELECTRICAL 1 FOR YAMAHA YZF 2024

ELECTRICAL 2

Item numbers

PLUG CAP ASSY

1SM823700000

1SM823700100

159,65 $

Unit Price

HOLDER

BR9113950000 BR9113950000

8,16 $

Unit Price

NUT, FLANGE(7NB)

957020650000

957800650000

3,18 $

Unit Price

THERMO SENDER UNIT

4P9835910000 4P9835910000

38,29 $

Unit Price

GASKET

904301000400 904301000400

3,77 $

Unit Price

HOLDER, LEVER UNDER

B2W829150000 B2W829150000

10,08 $

Unit Price

NEUTRAL SWITCH ASSY

B11825400000

B11825400100

133,59 $

Unit Price

O-RING

932102100100 932102100100

3,04 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100506200

901100502800

0,98 $

Unit Price

ENGINE CONTROL UNI

BAJ8591A2000 BAJ8591A2000

805,66 $

Unit Price

BOLT, FLANGE

901050500500 901050500500

2,23 $

Unit Price

COLLAR

903870504800 903870504800

8,19 $

Unit Price

GROMMET

904801302900 904801302900

6,59 $

Unit Price

IGNITION COIL ASSY

B7B823100300 B7B823100300

87,96 $

Unit Price

CORE, SIDE

BR98231U0000 BR98231U0000

32,07 $

Unit Price

GROMMET

904801101500 904801101500

5,17 $

Unit Price

BOLT, FLANGE DEEP RECESS

95E320601600 95E320601600

0,41 $

Unit Price

COMMUNICATION CONT. UNIT ASSY

BR9858100200

Not available

WIRE, LEAD

BR9857210000 BR9857210000

59,42 $

Unit Price

BAND

BR9855460000 BR9855460000

28,02 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

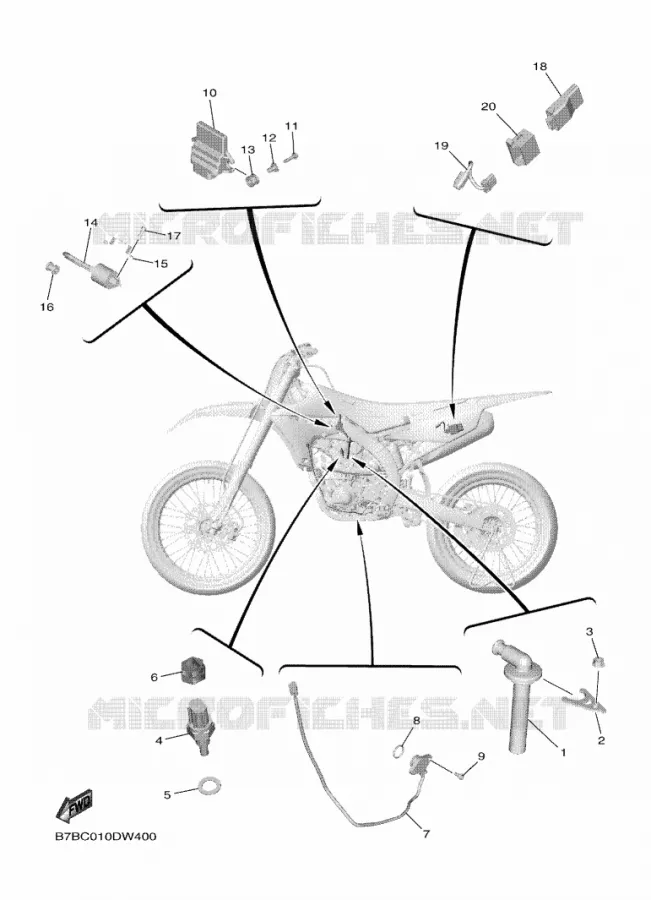

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha YZ 250 FX of 2024. Let us know if you have any questions.
