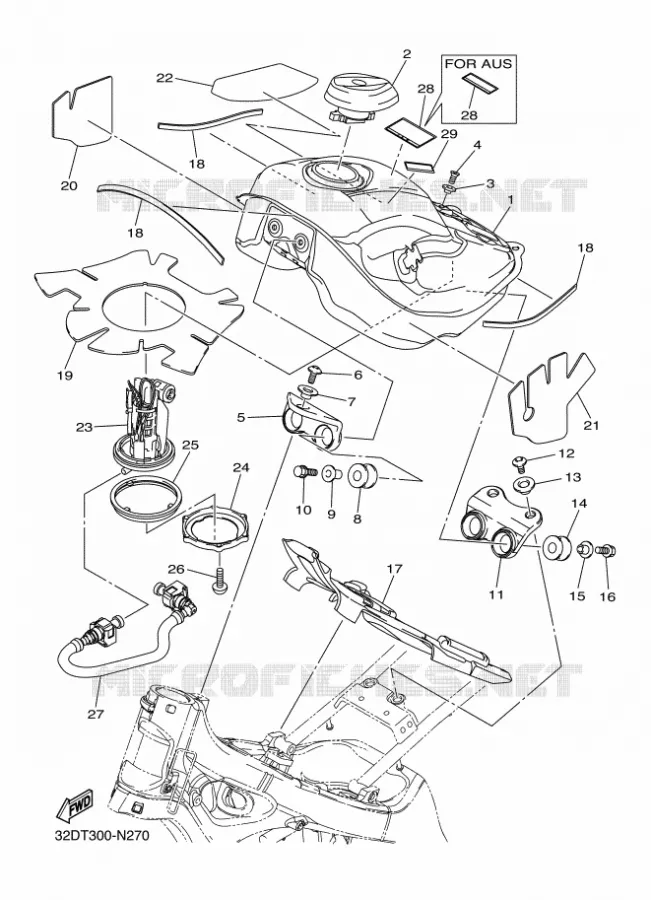

FUEL TANK FOR YAMAHA WR-R 2016

SEAT

Item numbers

RESERVOIR A ESSENCE

3D72411020P0 3D72411020P0

Not available

CAP ASSY

3D7246022000 3D7246022000

181,42 $

Unit Price

BRACKET, SEAT

4EW2412F0000 4EW2412F0000

12,49 $

Unit Price

SCREW, FLAT

987070602000 987070602000

2,20 $

Unit Price

BRACKET, FUEL TANK 1

3D7241910000 3D7241910000

17,96 $

Unit Price

SCREW(4DN)

901490602200

901490630200

6,65 $

Unit Price

COLLAR(50M)

90387061U900

90387087L000

8,71 $

Unit Price

GROMMET

3D7243390000 3D7243390000

4,39 $

Unit Price

COLLAR

903870613600 903870613600

4,96 $

Unit Price

BOLT, FLANGE

950220602500 950220602500

1,41 $

Unit Price

BRACKET, FUEL TANK 2

3D7241920000 3D7241920000

18,37 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110609000

901110609500

4,74 $

Unit Price

COLLAR(50M)

90387061U900

90387087L000

8,71 $

Unit Price

GROMMET

3D7243390000 3D7243390000

4,39 $

Unit Price

COLLAR

903870613600 903870613600

4,96 $

Unit Price

BOLT, FLANGE

950220602500 950220602500

1,41 $

Unit Price

DAMPER, LOCATING 1

3D7241810000 3D7241810000

41,08 $

Unit Price

MOLD, FUEL TANK

3D7241880000 3D7241880000

17,24 $

Unit Price

DAMPER, PLATE 4

3D72414N0000 3D72414N0000

104,63 $

Unit Price

DAMPER, PLATE 5

3D72414P0000 3D72414P0000

23,03 $

Unit Price

DAMPER, PLATE 6

3D72414R0100 3D72414R0100

48,10 $

Unit Price

SEAL

3D7212680000 3D7212680000

17,29 $

Unit Price

FUEL PUMP COMP.

3D7139071000

3D7139071100

636,96 $

Unit Price

BRACKET, FUEL PUMP

3D7244910000 3D7244910000

55,60 $

Unit Price

O-RING

1S4244860000 1S4244860000

49,05 $

Unit Price

BOLT, BUTTON HEAD

920120501600 920120501600

0,80 $

Unit Price

PIPE, FUEL 1

3D7139710000

3D7139710100

89,85 $

Unit Price

ETIQUETTE, RECOMMANDATION

5PW2415E0100 5PW2415E0100

Not available

ETIQUETTE, AVERTISSEMENT

5PA215680100 5PA215680100

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
