STEERING

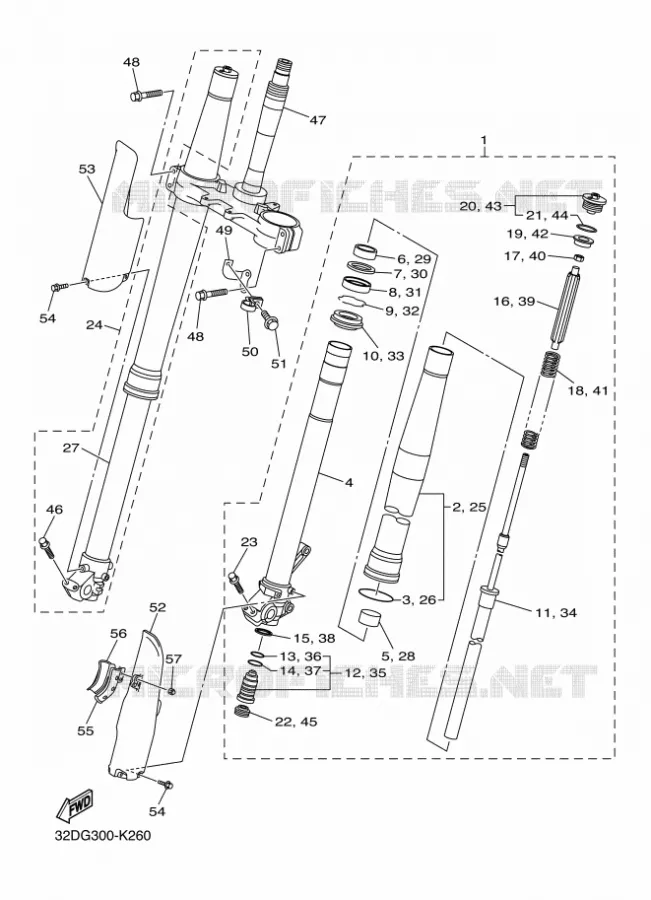

FRONT FORK FOR YAMAHA WRX 2012

FUEL TANK

Item numbers

FRONT FORK ASSY (L

32D231021000 32D231021000

Not available

OUTER TUBE, COMP. (

3D7231063000 3D7231063000

1 401,02 $

Unit Price

RING, SNAP

3D7231530000 3D7231530000

6,28 $

Unit Price

INNER TUBE COMP.1

3D7231100000 3D7231100000

679,74 $

Unit Price

PISTON, FRONT FORK

5ET23171L000 5ET23171L000

24,11 $

Unit Price

METAL, SLIDE 1

5ET23125L000 5ET23125L000

35,91 $

Unit Price

WASHER, OIL SEAL

5UN23146L000 5UN23146L000

15,76 $

Unit Price

OIL SEAL

5UN23145L000 5UN23145L000

24,34 $

Unit Price

RING, SNAP

4SS23153L000 4SS23153L000

7,11 $

Unit Price

SEAL, DUST

5HD23144L000 5HD23144L000

31,17 $

Unit Price

CYLINDER COMP., FRONT FORK

32D231700000 32D231700000

924,18 $

Unit Price

VALVE COMP.

32D2316A0000 32D2316A0000

489,40 $

Unit Price

O-RING

4DA23147L000 4DA23147L000

12,12 $

Unit Price

GASKET

276231140000

276231140100

7,71 $

Unit Price

GASKET

2HH23158L000 2HH23158L000

12,04 $

Unit Price

GUIDE, SPRING

3D7231170000 3D7231170000

51,60 $

Unit Price

NUT

3XJ23357L000 3XJ23357L000

0,66 $

Unit Price

SPRING, FRONT FORK

32D231410000 32D231410000

97,62 $

Unit Price

SEAT, SPRING LOWER

4SS23143L000 4SS23143L000

24,99 $

Unit Price

BOLT, CAP

3D7231110000 3D7231110000

367,77 $

Unit Price

O-RING

3D7231470000 3D7231470000

6,28 $

Unit Price

PLUG

3JD2312GL000 3JD2312GL000

15,00 $

Unit Price

BOLT, FLANGE(4KG)

950220804000

950240804000

5,68 $

Unit Price

FRONT FORK ASSY (R.H)

32D231031000 32D231031000

2 462,22 $

Unit Price

OUTER TUBE, COMP. (

3D7231063000 3D7231063000

1 401,02 $

Unit Price

RING, SNAP

3D7231530000 3D7231530000

6,28 $

Unit Price

INNER TUBE COMP.2

3D7231200000 3D7231200000

736,55 $

Unit Price

PISTON, FRONT FORK

5ET23171L000 5ET23171L000

24,11 $

Unit Price

METAL, SLIDE 1

5ET23125L000 5ET23125L000

35,91 $

Unit Price

WASHER, OIL SEAL

5UN23146L000 5UN23146L000

15,76 $

Unit Price

OIL SEAL

5UN23145L000 5UN23145L000

24,34 $

Unit Price

RING, SNAP

4SS23153L000 4SS23153L000

7,11 $

Unit Price

SEAL, DUST

5HD23144L000 5HD23144L000

31,17 $

Unit Price

CYLINDER COMP., FRONT FORK

32D231700000 32D231700000

924,18 $

Unit Price

VALVE COMP.

32D2316A0000 32D2316A0000

489,40 $

Unit Price

O-RING

4DA23147L000 4DA23147L000

12,12 $

Unit Price

GASKET

276231140000

276231140100

7,71 $

Unit Price

GASKET

2HH23158L000 2HH23158L000

12,04 $

Unit Price

GUIDE, SPRING

3D7231170000 3D7231170000

51,60 $

Unit Price

NUT

3XJ23357L000 3XJ23357L000

0,66 $

Unit Price

SPRING, FRONT FORK

32D231410000 32D231410000

97,62 $

Unit Price

SEAT, SPRING LOWER

4SS23143L000 4SS23143L000

24,99 $

Unit Price

BOLT, CAP

3D7231110000 3D7231110000

367,77 $

Unit Price

O-RING

3D7231470000 3D7231470000

6,28 $

Unit Price

PLUG

3JD2312GL000 3JD2312GL000

15,00 $

Unit Price

BOLT, FLANGE(4KG)

950220804000

950240804000

5,68 $

Unit Price

UNDER BRACKET COMP.

3D7233400000 3D7233400000

1 269,68 $

Unit Price

BOLT, FLANGE(4KG)

950220804000

950240804000

5,68 $

Unit Price

GUIDE, CABLE

3D72331E0000 3D72331E0000

10,83 $

Unit Price

GUIDE, CABLE

5VK233890000 5VK233890000

15,08 $

Unit Price

BOLT, FLANGE

901050501600 901050501600

0,90 $

Unit Price

PROTECTOR 1

3D72315H0000 3D72315H0000

41,88 $

Unit Price

PROTECTOR 2

3D72315J0000 3D72315J0000

41,88 $

Unit Price

BOLT 2

3SP23356L000 3SP23356L000

4,09 $

Unit Price

CLAMP

3D7234660000 3D7234660000

19,15 $

Unit Price

CLAMP

3D7234670000 3D7234670000

19,15 $

Unit Price

NUT, CROWN

901760601400 901760601400

0,67 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
