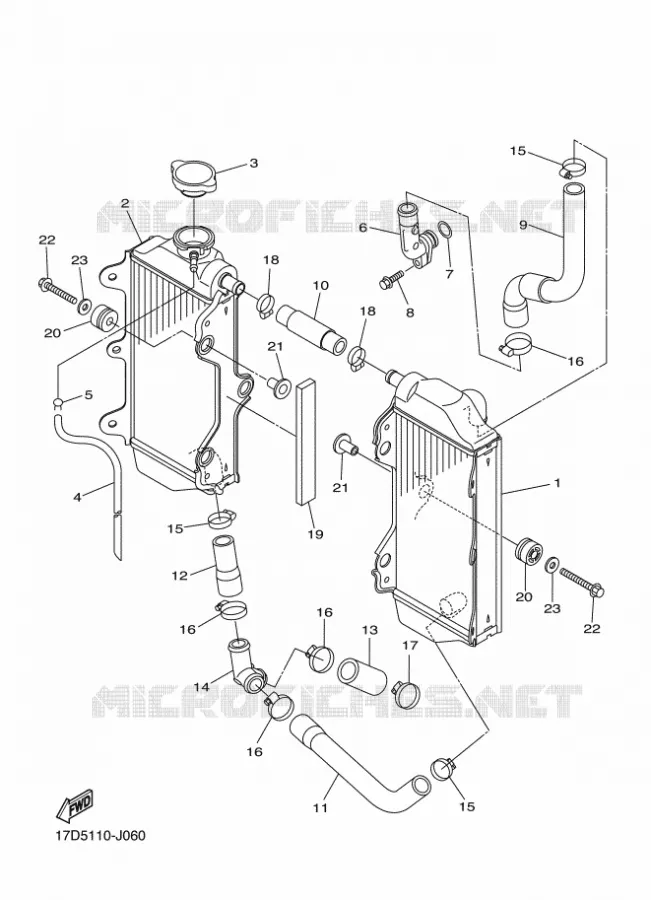

RADIATOR / HOSES FOR YAMAHA YZF 2011

OIL PUMP

Item numbers

RADIATOR ASSY

17D1240A5000 17D1240A5000

530,57 $

Unit Price

RADIATOR ASSY

17D124615000 17D124615000

557,74 $

Unit Price

CAP, RADIATOR

5SL124620000

5SL124620100

34,90 $

Unit Price

TUBE, FLEXIBLE VINYL(8AK)

91A200506500

91A200508000

15,91 $

Unit Price

CLIP

90467090A200 90467090A200

1,47 $

Unit Price

PIPE 1

5XC12481G000 5XC12481G000

71,85 $

Unit Price

O-RING

932101627500 932101627500

4,88 $

Unit Price

BOLT

913120602000 913120602000

4,00 $

Unit Price

HOSE 1

17D125765000 17D125765000

30,09 $

Unit Price

HOSE 2

17D125775000 17D125775000

13,82 $

Unit Price

HOSE 3

17D125785000 17D125785000

18,46 $

Unit Price

HOSE 4

17D125795000 17D125795000

10,61 $

Unit Price

HOSE 5

17D125885000 17D125885000

8,53 $

Unit Price

JOINT, HOSE 1

17D125815000 17D125815000

65,19 $

Unit Price

HOSE CLAMP ASSY(64X)

904502500100

9045022M1400

22,33 $

Unit Price

HOSE CLAMP ASSY

904502800100 904502800100

16,37 $

Unit Price

HOSE CLAMP ASSY

904503200300 904503200300

15,91 $

Unit Price

HOSE CLAMP ASSY(63M)

904502200100

9045018M0900

18,38 $

Unit Price

DAMPER, LOCATING 1

4KB241810000 4KB241810000

3,84 $

Unit Price

GROMMET

904801501200 904801501200

6,46 $

Unit Price

COLLAR

903870606500 903870606500

13,31 $

Unit Price

BOLT, FLANGE

901050611100 901050611100

1,64 $

Unit Price

WASHER, PLATE (583 REAR FENDER

902010657100 902010657100

5,53 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR / HOSES of your Yamaha YZ250F of 2011. Let us know if you have any questions.
