COVER - ENGINE 1

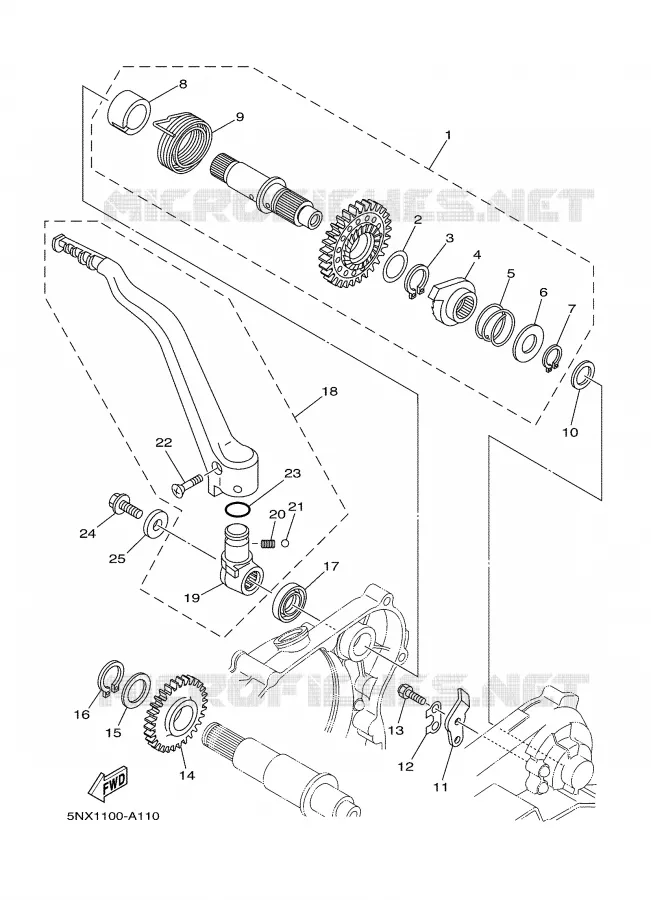

STARTER MOTOR FOR YAMAHA YZ 2005

STARTER CLUTCH

KICK SHAFT ASSY

5NX156011000 5NX156011000

444,72 $

Unit Price

WASHER, PLATE (2K7)

902012068500 902012068500

4,70 $

Unit Price

CIRCLIP (525)

934102003800 934102003800

4,21 $

Unit Price

WHEEL, RATCHET

4GY156710000 4GY156710000

107,63 $

Unit Price

SPRING, COMPRESSION

905011601600 905011601600

2,34 $

Unit Price

WASHER, PLATE(4GL)

90201167P700 90201167P700

10,51 $

Unit Price

CIRCLIP(13T)

990091640000 990091640000

5,24 $

Unit Price

GUIDE, SPRING

5NL156640000 5NL156640000

9,97 $

Unit Price

SPRING, TORSION(2VM)

905083074300 905083074300

23,76 $

Unit Price

WASHER, PLATE (25H)

90201162H400 90201162H400

3,75 $

Unit Price

GUIDE, RATCHET WHEEL

214156740000

2NX156740000

12,67 $

Unit Price

WASHER, LOCK

214156860000 214156860000

7,65 $

Unit Price

BOLT, HEXAGON

970270601600

970170601600

2,42 $

Unit Price

GEAR, KICK IDLE

5CU156510000 5CU156510000

182,04 $

Unit Price

WASHER PLATE 328171160000

902012027600 902012027600

10,15 $

Unit Price

CIRCLIP(1AR)

990092040000 990092040000

5,09 $

Unit Price

OIL SEAL (22U)

931021827800 931021827800

14,75 $

Unit Price

KICK CRANK ASSY

5NX156201000

5NX156202000

270,49 $

Unit Price

BOSS, KICK CRANK

5NX156211000 5NX156211000

114,93 $

Unit Price

SPRING, COMPRESSION

90501147A500 90501147A500

2,54 $

Unit Price

BALL (12R)

935073200900

935073203100

1,68 $

Unit Price

SCREW, COUNTERSUNK (5Y1)

901520601000 901520601000

1,71 $

Unit Price

O-RING(36Y)

932101757000 932101757000

3,94 $

Unit Price

BOLT(2KF)

90109085E200 90109085E200

8,37 $

Unit Price

WASHER (853)

902010832600 902010832600

5,00 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
