STEERING

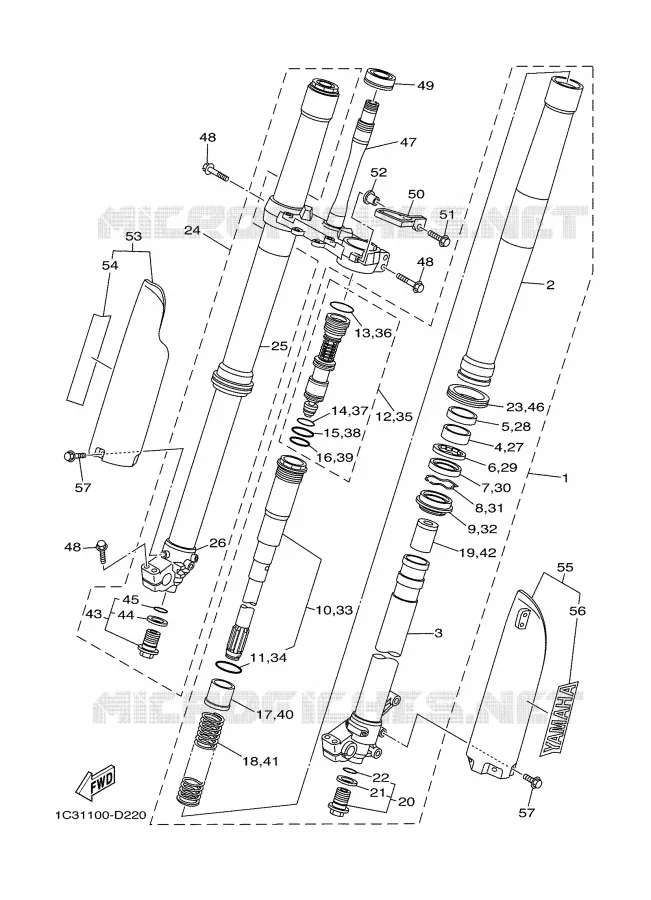

FRONT FORK FOR YAMAHA YZ 2005

FUEL TANK

FOURCHE AVANT COMPLETE (G)

1P8231020000 1P8231020000

Not available

.BAS DE FOURCHE(DROIT) BAS DE FOURCHE(DROIT)

1C323136L000 1C323136L000

Not available

.TUBE DE FOURCHE NUE TUBE DE FOURCHE NUE

1P823120L000 1P823120L000

Not available

PISTON, FRONT FORK

5XE23171L000 5XE23171L000

23,44 $

Unit Price

METAL, SLIDE 1

5XE23125L000 5XE23125L000

28,63 $

Unit Price

WASHER, OIL SEAL

5XE23146L000 5XE23146L000

14,57 $

Unit Price

OIL SEAL

1C323145L000 1C323145L000

31,43 $

Unit Price

RING, SNAP

5XE23153L000 5XE23153L000

7,54 $

Unit Price

SEAL, DUST

5XE23144L000 5XE23144L000

27,14 $

Unit Price

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

1C323170L000 1C323170L000

Not available

O-RING

1C323147L000

1C323147L100

4,08 $

Unit Price

.CLAPET CLAPET

1P82316AL000 1P82316AL000

Not available

O-RING

1C323188L000

1C323188L100

5,77 $

Unit Price

O-RING

5UX231880000 5UX231880000

9,85 $

Unit Price

O-RING

43F231881000 43F231881000

8,54 $

Unit Price

..JOINT TORIQUE JOINT TORIQUE

1C323188M000 1C323188M000

Not available

.ENTRETOISE ENTRETOISE

1C323118L000 1C323118L000

Not available

SPRING, FRONT FORK

1P823141L000

Not available

.ENTRETOISE ENTRETOISE

1C32316EL000 1C32316EL000

Not available

BOLT, CAP

1C323111L000

1C323111L100

133,71 $

Unit Price

GASKET

2HH23158L000 2HH23158L000

12,04 $

Unit Price

GASKET

276231140000

276231140100

7,71 $

Unit Price

.GUIDE GUIDE

1C32314FL000 1C32314FL000

Not available

FOURCHE AVANT COMPLETE (D)

1P8231030000 1P8231030000

Not available

.BAS DE FOURCHE(DROIT) BAS DE FOURCHE(DROIT)

1C323136L000 1C323136L000

Not available

.TUBE DE FOURCHE NU TUBE DE FOURCHE NU

1P823110L000 1P823110L000

Not available

PISTON, FRONT FORK

5XE23171L000 5XE23171L000

23,44 $

Unit Price

METAL, SLIDE 1

5XE23125L000 5XE23125L000

28,63 $

Unit Price

WASHER, OIL SEAL

5XE23146L000 5XE23146L000

14,57 $

Unit Price

OIL SEAL

1C323145L000 1C323145L000

31,43 $

Unit Price

RING, SNAP

5XE23153L000 5XE23153L000

7,54 $

Unit Price

SEAL, DUST

5XE23144L000 5XE23144L000

27,14 $

Unit Price

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

1C323170L000 1C323170L000

Not available

O-RING

1C323147L000

1C323147L100

4,08 $

Unit Price

.CLAPET CLAPET

1P82316AL000 1P82316AL000

Not available

O-RING

1C323188L000

1C323188L100

5,77 $

Unit Price

O-RING

5UX231880000 5UX231880000

9,85 $

Unit Price

O-RING

43F231881000 43F231881000

8,54 $

Unit Price

..JOINT TORIQUE JOINT TORIQUE

1C323188M000 1C323188M000

Not available

.ENTRETOISE ENTRETOISE

1C323118L000 1C323118L000

Not available

SPRING, FRONT FORK

1P823141L000

Not available

.ENTRETOISE ENTRETOISE

1C32316EL000 1C32316EL000

Not available

BOLT, CAP

1C323111L000

1C323111L100

133,71 $

Unit Price

GASKET

2HH23158L000 2HH23158L000

12,04 $

Unit Price

GASKET

276231140000

276231140100

7,71 $

Unit Price

.GUIDE GUIDE

1C32314FL000 1C32314FL000

Not available

TE DE FOURCHE INFERIEUR

1P823340L000 1P823340L000

Not available

BOLT 1

5NY23346L000 5NY23346L000

3,95 $

Unit Price

BEARING(4SR)

933320008100 933320008100

79,65 $

Unit Price

GUIDE, CABLE

5XE233890000 5XE233890000

10,65 $

Unit Price

BOLT, FLANGE(6U1)

950270602000 950270602000

2,46 $

Unit Price

COLLAR

5XE231130000 5XE231130000

6,43 $

Unit Price

PROTECTER COMP., 2

1C32314J0000

1C32314J1000

63,13 $

Unit Price

EMBLEM, YAMAHA

4XL2153A1000

4XL2153A1100

23,35 $

Unit Price

PROTECTER COMP. 1

1C32314H0000

1C32314H1100

69,53 $

Unit Price

EMBLEM, YAMAHA

4XL2153A1000

4XL2153A1100

23,35 $

Unit Price

BOLT 2

3SP23356L000 3SP23356L000

4,09 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
