SWINGARM

REAR SHOCK ABSORBER FOR YAMAHA YZ 2004

STEERING

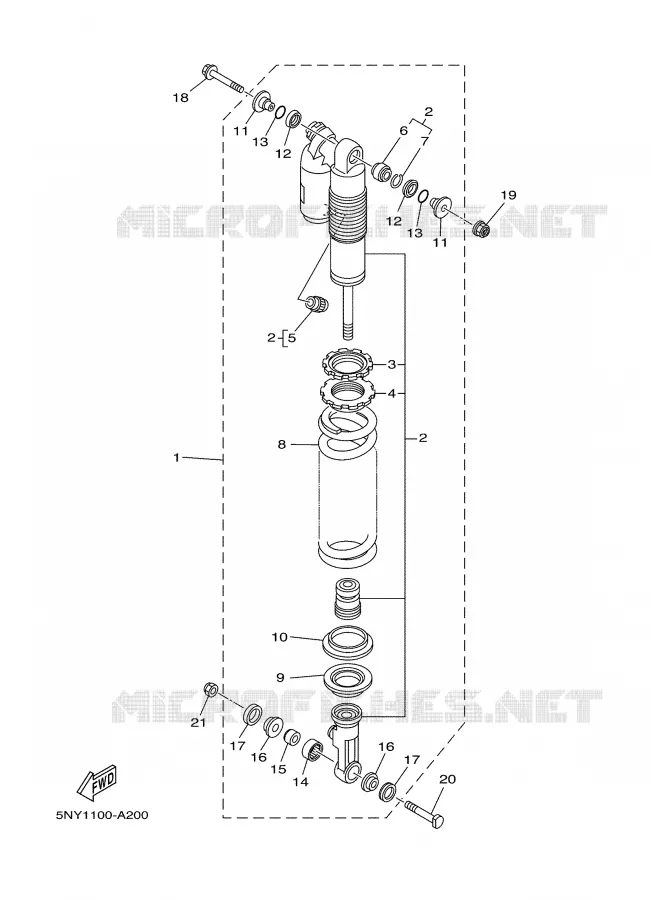

REAR SHOCK ABSORBER Yamaha MOTO 250 2004 YZ YZ250

1

AMORTISSEUR, ARRIERE

5XF222100000 5XF222100000

Not available

1

AMORTISSEUR, ARRIERE

5XF222101000 5XF222101000

Not available

1

AMORTISSEUR, ARRIERE

5XF222102000 5XF222102000

Not available

1

AMORTISSEUR, ARRIERE

5XF222103000 5XF222103000

Not available

1

AMORTISSEUR, ARRIERE

5XF222104000 5XF222104000

Not available

2

.AMORTISSEUR, ARRIERE AMORTISSEUR, ARRIERE

5XF222010000 5XF222010000

Not available

2

.AMORTISSEUR, ARRIERE AMORTISSEUR, ARRIERE

5XF222011000 5XF222011000

Not available

2

.AMORTISSEUR, ARRIERE AMORTISSEUR, ARRIERE

5XF222012000 5XF222012000

Not available

2

.AMORTISSEUR, ARRIERE AMORTISSEUR, ARRIERE

5XF222013000 5XF222013000

Not available

2

.AMORTISSEUR, ARRIERE AMORTISSEUR, ARRIERE

5XF222014000 5XF222014000

Not available

3

GUIDE, SPRING 3

3SP222340000 3SP222340000

56,33 $

Unit Price

4

SEAT, SPRING UPPER

3SP222130000 3SP222130000

32,63 $

Unit Price

5

CAP, AIR VALVE

50923184L000 50923184L000

7,68 $

Unit Price

6

BUSH, SHOCK ABSORBER LOWER

4JX222260000 4JX222260000

51,15 $

Unit Price

7

CIRCLIP

5DH231830000 5DH231830000

9,61 $

Unit Price

8

SPRING

5UN222122000 5UN222122000

604,60 $

Unit Price

8

SPRING

5UN22212C000 5UN22212C000

604,60 $

Unit Price

9

GUIDE, SPRING 1

5XE222140000 5XE222140000

53,09 $

Unit Price

10

GUIDE, SPRING 2

5MV222240000 5MV222240000

23,82 $

Unit Price

11

.COLLIER, D ENTRETOISE COLLIER, D ENTRETOISE

5DH222530000 5DH222530000

Not available

12

SEAL, DUST

3JE224750000 3JE224750000

16,41 $

Unit Price

13

SEAL, RING

4EW224740000 4EW224740000

6,81 $

Unit Price

14

BEARING

5MV221760000 5MV221760000

45,76 $

Unit Price

15

BUSH

5MV221840000 5MV221840000

23,59 $

Unit Price

16

COLLAR, DISTANCE

5MV222530000 5MV222530000

15,98 $

Unit Price

17

SEAL, DUST

5NY224750000 5NY224750000

14,57 $

Unit Price

18

BOLT 2

5XE222420000

5XE222420100

8,45 $

Unit Price

19

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

20

BOLT 1

5NY222410000 5NY222410000

10,98 $

Unit Price

21

NUT, SELFLOCKING (533 FRAME)

901851006000 901851006000

9,14 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR SHOCK ABSORBER of your Yamaha YZ250 of 2004. Let us know if you have any questions.
