HANDLE SWITCH / LEVER

ELECTRICAL 1 FOR YAMAHA DRAGSTAR 2004

ELECTRICAL 2

BLOC D ALLUMAGE

5KR823050000 5KR823050000

Not available

RIVET

902690700100 902690700100

3,60 $

Unit Price

HEATER ASSY

3BT837900000

5FU837902000

48,09 $

Unit Price

TERMINAL 1

5FU821030000 5FU821030000

2,54 $

Unit Price

WASHER, PLATE

902010801600 902010801600

3,51 $

Unit Price

RECTIFIER & REGULATOR ASSY

4XY819600000 4XY819600000

252,56 $

Unit Price

BOLT, FLANGE

958070602500

958170602500

3,86 $

Unit Price

WASHER, PLATE(3MB)

902020518700 902020518700

1,68 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

STARTER RELAY ASSY (RC19-015)

4SV819400000

4SV819401200

72,61 $

Unit Price

FUSE (12V 30A)

1AE821510000 1AE821510000

3,51 $

Unit Price

BOLT, SMALL FLANGE

950270600800 950270600800

2,10 $

Unit Price

BAT YTZ7S (PTZ7S) YU W

4TP821001000

YTZ7S0000000

234,52 $

Unit Price

BAND, BATTERY

133821310000 133821310000

24,35 $

Unit Price

FIL, POSITIF

5JX821150000 5JX821150000

Not available

FIL, NEGATIF

5JX821160000 5JX821160000

Not available

MAIN SWITCH STEERING LOCK

4VR825010100 4VR825010100

390,98 $

Unit Price

BLANK KEY

4BH825110900 4BH825110900

16,83 $

Unit Price

SCREW

901490800200 901490800200

7,07 $

Unit Price

FAISCEAU DE FILS COMPLET

5KR825901000 5KR825901000

Not available

FUSE (12V 15A)

36Y821510000 36Y821510000

6,55 $

Unit Price

FUSE (10A)

42X821510000 42X821510000

3,60 $

Unit Price

RELAY ASSY

5JX819500000 5JX819500000

Not available

RELAY ASSY (5EA-02)

5EA819502000 5EA819502000

39,30 $

Unit Price

HOLDER, RELAY

5EA819520000 5EA819520000

10,65 $

Unit Price

THERMO SWITCH ASSY

5FU825603000 5FU825603000

60,10 $

Unit Price

BAND

1UA825910000 1UA825910000

3,11 $

Unit Price

CLAMP(4FM)

904641307300

904641519500

4,93 $

Unit Price

CLAMP(4FM)

904641519500 904641519500

4,93 $

Unit Price

CLAMP(4GY)

904642019100 904642019100

4,42 $

Unit Price

CLAMP(2TV)

904641203600

904641011200

2,49 $

Unit Price

CLAMP(2TV)

904641208900

904641011200

2,49 $

Unit Price

CLAMP(88R)

904641515600 904641515600

3,62 $

Unit Price

CLAMP(4KM)

904642521700 904642521700

5,40 $

Unit Price

CLAMP

904640826300 904640826300

2,23 $

Unit Price

FLASHER RELAY ASSY

3GM833500100

3GM833500300

185,85 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

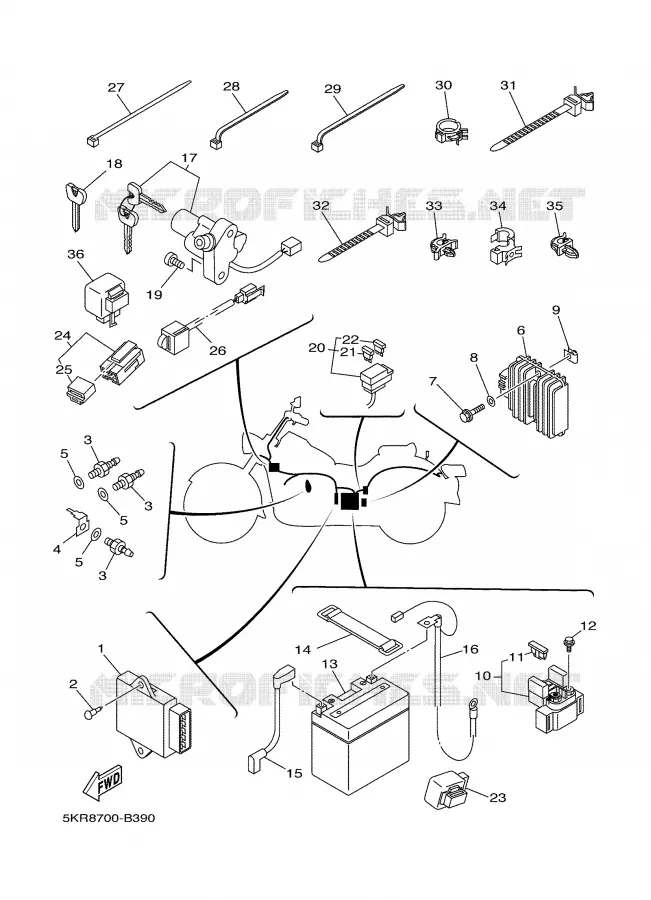

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha XVS250 of 2004. Let us know if you have any questions.
