SIDE COVER

SWINGARM FOR YAMAHA WRZ 1997

REAR SHOCK ABSORBER

BRAS ARRIERE COMP.

4XK221100000 4XK221100000

Not available

SCREW, FLAT

901510404800

987070401000

2,10 $

Unit Price

PASTILLE

4SS223550000 4SS223550000

Not available

BEARING, CYLINDRICAL(2VM)

933172226200 933172226200

32,29 $

Unit Price

PLUG(55K)

903381614800 903381614800

15,10 $

Unit Price

OIL SEAL (23X)

931062201900 931062201900

14,01 $

Unit Price

BEARING, THRUST(4EW)

933422221500 933422221500

47,68 $

Unit Price

COVER, THRUST 2

4EW221290000 4EW221290000

16,84 $

Unit Price

BUSH, SOLID(1LV)

903801615800 903801615800

31,83 $

Unit Price

SHIM

156221270000 156221270000

2,79 $

Unit Price

SEAL, GUARD

4EW221510100

4EW221512000

87,92 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901100520100

901110505900

5,10 $

Unit Price

SUPPORT, CHAIN

4XM221990000 4XM221990000

116,02 $

Unit Price

COVER, THRUST 1

4XM221280000 4XM221280000

89,17 $

Unit Price

BOLT, SMALL FLANGE

950270605000 950270605000

2,52 $

Unit Price

NUT, FLANGE(7NB)

901790656800

957800650000

3,18 $

Unit Price

BOLT, FLANGE(4MY)

950270601000 950270601000

2,10 $

Unit Price

SHAFT, PIVOT

1LX221410000 1LX221410000

70,81 $

Unit Price

NUT, SELF-LOCKING

901851612700

901851600200

21,31 $

Unit Price

WASHER, PLATE(33Y)

90201164H400 90201164H400

9,22 $

Unit Price

BRAS DE LIAISON

4SS2217A0000 4SS2217A0000

Not available

BEARING, CYLINDRICAL(4BF)

933153205600 933153205600

32,07 $

Unit Price

OIL SEAL

931092002900

931092007600

17,65 $

Unit Price

COLLAR(1LV)

90387164N200 90387164N200

26,41 $

Unit Price

COLLERETTE

90387164N300 90387164N300

Not available

COLLAR(4EW)

90387167Y900 90387167Y900

19,73 $

Unit Price

BOULON

90109147F200 90109147F200

Not available

BOLT (3JE)

90109142F400 90109142F400

33,15 $

Unit Price

WASHER, PLATE(33Y)

90201164H400 90201164H400

9,22 $

Unit Price

WASHER PLATE (3L6)

902011474000 902011474000

5,61 $

Unit Price

NUT, SELF-LOCKING

901851411200 901851411200

14,53 $

Unit Price

CONNECTING ROD 1

4SS2217F0000 4SS2217F0000

360,36 $

Unit Price

BEARING, CYLINDRICAL(4BF)

933153205600 933153205600

32,07 $

Unit Price

OIL SEAL

931092002900

931092007600

17,65 $

Unit Price

COVER

1HX2135F1000 1HX2135F1000

15,62 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

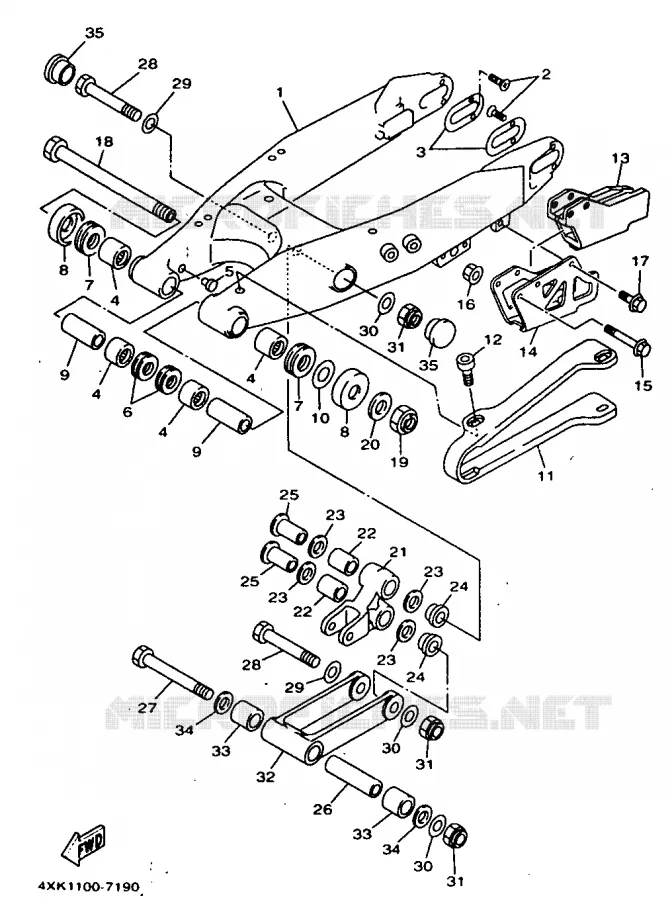

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha WR250Z of 1997. Let us know if you have any questions.

Select your Yamaha WRZ model from 1997
