SWINGARM

REAR SHOCK ABSORBER FOR YAMAHA TZ 1996

STEERING

AMORTISSEUR, ARRIERE

4TW222101000 4TW222101000

Not available

.TIGE DE POUSSOIR

4DP224890000 4DP224890000

Not available

.GOUJON

936052020400 936052020400

Not available

.SUPPORT, SUPERIEUR

4DP222190000 4DP222190000

Not available

BEARING(4JT)

93399999T400 93399999T400

99,74 $

Unit Price

CIRCLIP (23X)

934403011300 934403011300

1,70 $

Unit Price

.SIEGE INFERIEUR, RESSORT

1KH222230000 1KH222230000

Not available

RING, COVER

1RK222150000 1RK222150000

23,58 $

Unit Price

BUMP, STOP

3AK224930000 3AK224930000

24,02 $

Unit Price

DISTANCE COLLAR

3YL222530000 3YL222530000

Not available

COVER

23X222110000 23X222110000

11,76 $

Unit Price

.COLLIER, D ENTRETOISE

4JT222534100 4JT222534100

Not available

COVER

4DP222110000 4DP222110000

63,36 $

Unit Price

.RESSORT

4DP222120000 4DP222120000

Not available

GUIDE, SPRING 1

22W222140000

3P6222141000

23,54 $

Unit Price

LABEL, WARNING

4AA222590000 4AA222590000

7,48 $

Unit Price

LABEL, WARNING

4AA222591000 4AA222591000

7,02 $

Unit Price

LABEL, WARNING

4AA222594000 4AA222594000

12,61 $

Unit Price

LABEL, WARNING

4AA222595000 4AA222595000

14,45 $

Unit Price

BOULON

901011079000 901011079000

Not available

NUT, SELF-LOCKING(JN5)

956171020000

956071020000

4,90 $

Unit Price

WASHER, PLATE(55K)

90201127J600 90201127J600

5,61 $

Unit Price

SUPPORT, SUPERIEUR

4JT222190000 4JT222190000

Not available

REGLAGE

4JT222390000 4JT222390000

Not available

ECROU 1

1RK222510000 1RK222510000

Not available

BOULON SOCKET HEAD

913171001600 913171001600

Not available

NUT

3AK222520000 3AK222520000

53,01 $

Unit Price

GROMMET (420)

904801415300 904801415300

10,82 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

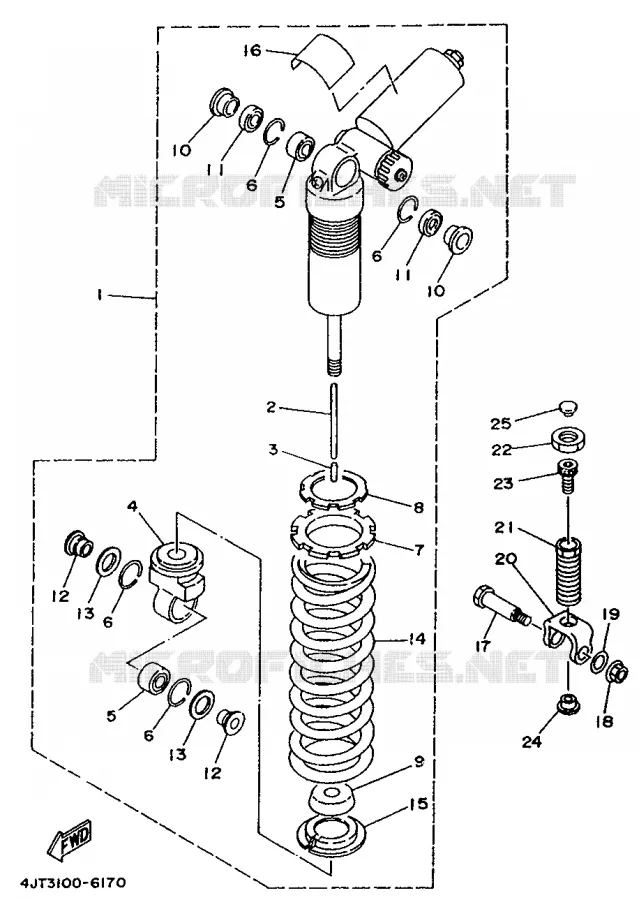

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR SHOCK ABSORBER of your Yamaha TZ250 of 1996. Let us know if you have any questions.
