IGNITION

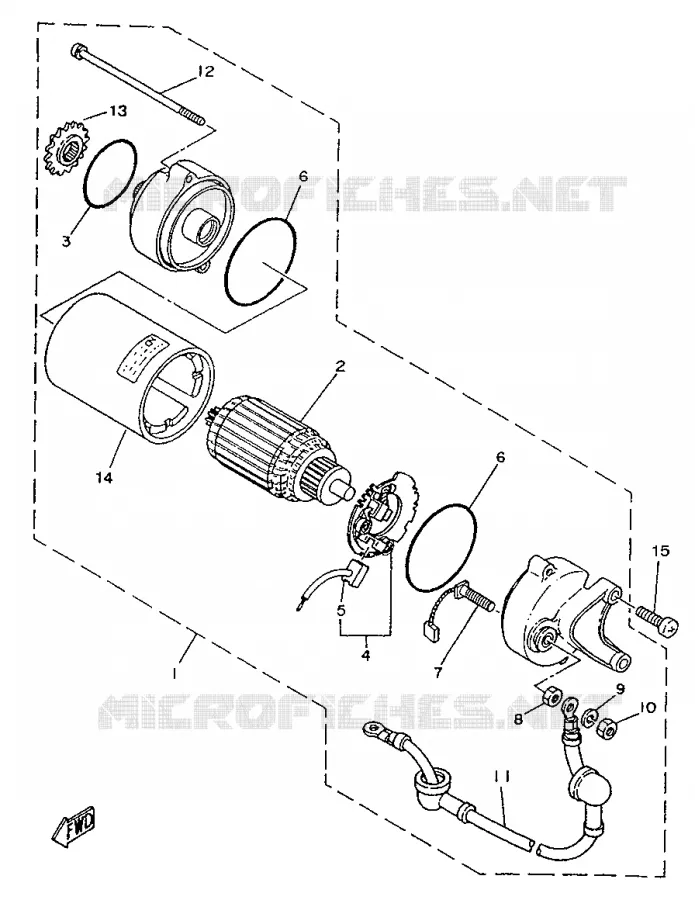

STARTER MOTOR FOR YAMAHA SR 1996

INDICATOR

STARTING MOTOR UNIT

3Y6818005200

3Y6818900000

801,51 $

Unit Price

ARMATURE ASSY

4H7818500000 4H7818500000

836,91 $

Unit Price

O-RING

4H7818470100 4H7818470100

21,98 $

Unit Price

BRUSH HOLDER ASSY

4H7818400100 4H7818400100

102,23 $

Unit Price

BRUSH, STARTER

4H7818110000 4H7818110000

19,62 $

Unit Price

O-RING

4H7818440000 4H7818440000

21,98 $

Unit Price

BRUSH SUB-ASSY, STARTOR

4H7818120100

2JN818185000

23,64 $

Unit Price

NUT

4H7818720000 4H7818720000

5,56 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

NUT(661)

953030660000

953800660000

2,14 $

Unit Price

STARTER MOTOR CORD

3Y6818150000

2HR818155200

149,85 $

Unit Price

BOLT

4H7818260100 4H7818260100

21,53 $

Unit Price

STARTING MOTOR GEAR

3Y6155110000 3Y6155110000

84,68 $

Unit Price

.STATOR COMPLET STATOR COMPLET

4H7818100200 4H7818100200

Not available

SCREW, PAN HEAD (76T)

985070602500

985170602500

2,10 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR of your Yamaha SR250SP of 1996. Let us know if you have any questions.
