STEERING

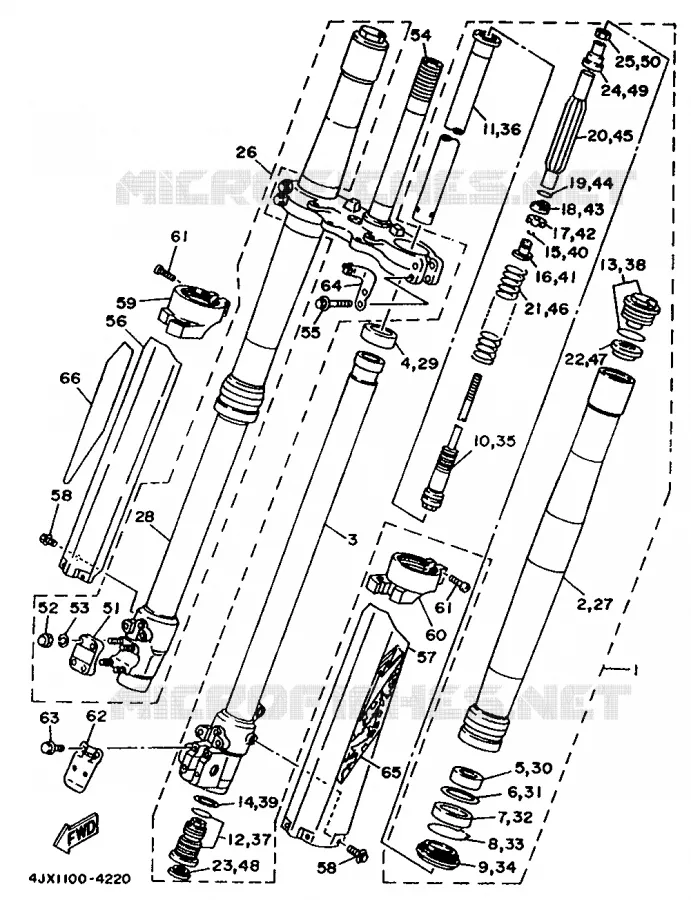

FRONT FORK FOR YAMAHA WRZ 1994

FUEL TANK

FOURCHE AVANT COMPLETE (G)

4JW231020000 4JW231020000

Not available

FOURCHE AVANT COMPLETE (G)

4JW231021000 4JW231021000

Not available

.BAS DE FOURCHE

4JX23136L000 4JX23136L000

Not available

.TUBE DE FOURCHE NUE

4EW23120L000 4EW23120L000

Not available

PISTON, FRONT FORK

3XJ23171L000

5EB231710000

40,43 $

Unit Price

.COUSSINET, COULISSANT 1

4EW23125L000 4EW23125L000

Not available

WASHER

4V423146L000 4V423146L000

13,34 $

Unit Price

OIL SEAL

3XJ23145L000 3XJ23145L000

34,08 $

Unit Price

RING, SNAP

4V423153L000 4V423153L000

8,54 $

Unit Price

SEAL, DUST

4DA23144L000

4PU231440000

24,78 $

Unit Price

.TIGE, PISTON

4JW2314A0000 4JW2314A0000

Not available

.TIGE, PISTON

4JX2314AM000 4JX2314AM000

Not available

.CYLINDRE DE FOURCHE AV

4JX23170L000 4JX23170L000

Not available

.CLAPET

4JW2316A0000 4JW2316A0000

Not available

.CLAPET

4JW2316A1000 4JW2316A1000

Not available

.BOULON, CHAPEAU

4EW23111L000 4EW23111L000

Not available

.JOINT

3JD23158L000 3JD23158L000

Not available

.JONC, ARRET

3SP23153L000 3SP23153L000

Not available

.COLLIER

3SP23113L000 3SP23113L000

Not available

.ENTRETOISE,

3SP23166L000 3SP23166L000

Not available

NUT, SPECIAL

3SP23393L000 3SP23393L000

17,11 $

Unit Price

.JOINT TORIQUE

3JD23147L000 3JD23147L000

Not available

.SIEGE, SUPERIEUR DE RESSORT

4JX23142L000 4JX23142L000

Not available

SPRING, FRONT FORK

3XK23141M000 3XK23141M000

111,59 $

Unit Price

.RESSORT, FOURCHE AVANT (K=0.400)

4JX23141M000 4JX23141M000

Not available

.SIEGE, INFERIEUR DE RESSORT

3XJ23143L000 3XJ23143L000

Not available

PLUG

3JD2312GL000 3JD2312GL000

15,00 $

Unit Price

.COLLIER

4JX23363L000 4JX23363L000

Not available

NUT

3SP23357L000 3SP23357L000

0,89 $

Unit Price

FOURCHE AVANT COMPLETE (D)

4JW231030000 4JW231030000

Not available

FOURCHE AVANT COMPLETE (D)

4JW231031000 4JW231031000

Not available

.BAS DE FOURCHE

4JX23136L000 4JX23136L000

Not available

.TUBE DE FOURCHE NUE

4EW23110L000 4EW23110L000

Not available

PISTON, FRONT FORK

3XJ23171L000

5EB231710000

40,43 $

Unit Price

.COUSSINET, COULISSANT 1

4EW23125L000 4EW23125L000

Not available

WASHER

4V423146L000 4V423146L000

13,34 $

Unit Price

OIL SEAL

3XJ23145L000 3XJ23145L000

34,08 $

Unit Price

RING, SNAP

4V423153L000 4V423153L000

8,54 $

Unit Price

SEAL, DUST

4DA23144L000

4PU231440000

24,78 $

Unit Price

.TIGE, PISTON

4JW2314A0000 4JW2314A0000

Not available

.TIGE, PISTON

4JX2314AM000 4JX2314AM000

Not available

.CYLINDRE DE FOURCHE AV

4JX23170L000 4JX23170L000

Not available

.CLAPET

4JW2316A0000 4JW2316A0000

Not available

.CLAPET

4JW2316A1000 4JW2316A1000

Not available

.BOULON, CHAPEAU

4EW23111L000 4EW23111L000

Not available

.JOINT

3JD23158L000 3JD23158L000

Not available

.JONC, ARRET

3SP23153L000 3SP23153L000

Not available

.COLLIER

3SP23113L000 3SP23113L000

Not available

.ENTRETOISE,

3SP23166L000 3SP23166L000

Not available

NUT, SPECIAL

3SP23393L000 3SP23393L000

17,11 $

Unit Price

.JOINT TORIQUE

3JD23147L000 3JD23147L000

Not available

.SIEGE, SUPERIEUR DE RESSORT

4JX23142L000 4JX23142L000

Not available

SPRING, FRONT FORK

3XK23141M000 3XK23141M000

111,59 $

Unit Price

.RESSORT, FOURCHE AVANT (K=0.400)

4JX23141M000 4JX23141M000

Not available

.SIEGE, INFERIEUR DE RESSORT

3XJ23143L000 3XJ23143L000

Not available

PLUG

3JD2312GL000 3JD2312GL000

15,00 $

Unit Price

.COLLIER

4JX23363L000 4JX23363L000

Not available

NUT

3SP23357L000 3SP23357L000

0,89 $

Unit Price

AXLE HOLDER

4EW23167L000 4EW23167L000

38,27 $

Unit Price

NUT

5Y3233930000 5Y3233930000

8,54 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

TE DE FOURCHE INFERIEUR

4JX23340L000 4JX23340L000

Not available

BOLT, FLANGE(4KG)

950230804000

950240804000

5,68 $

Unit Price

PROTECTOR COMP 2

4DA2314JL000

4MX2314JL000

83,58 $

Unit Price

PROTECTOR COMP 1

4DA2314HL100

4MX2314HL100

83,58 $

Unit Price

BOLT 2

3SP23356L000 3SP23356L000

4,09 $

Unit Price

PROTECTER GUIDE COMP., 2

4DA2314GL000

4MX2314GL000

27,21 $

Unit Price

PROTECTER GUIDE COMP., 1

4DA2314FL000

4MX2314FL000

27,21 $

Unit Price

SCREW, PAN HEAD

4V423194L000

985170402500

2,10 $

Unit Price

COUVERCLE

4EW2314EL000 4EW2314EL000

Not available

BOLT, FLANGE(3BM)

4DA23346L000

950240600800

2,13 $

Unit Price

GUIDE, CABLE

4EW2331EL000

4EW2331EL100

19,82 $

Unit Price

EMBLEME 1

4JW2313B0000 4JW2313B0000

Not available

EMBLEME 2

4JW2313C0000 4JW2313C0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha WR250Z of 1994. Let us know if you have any questions.
