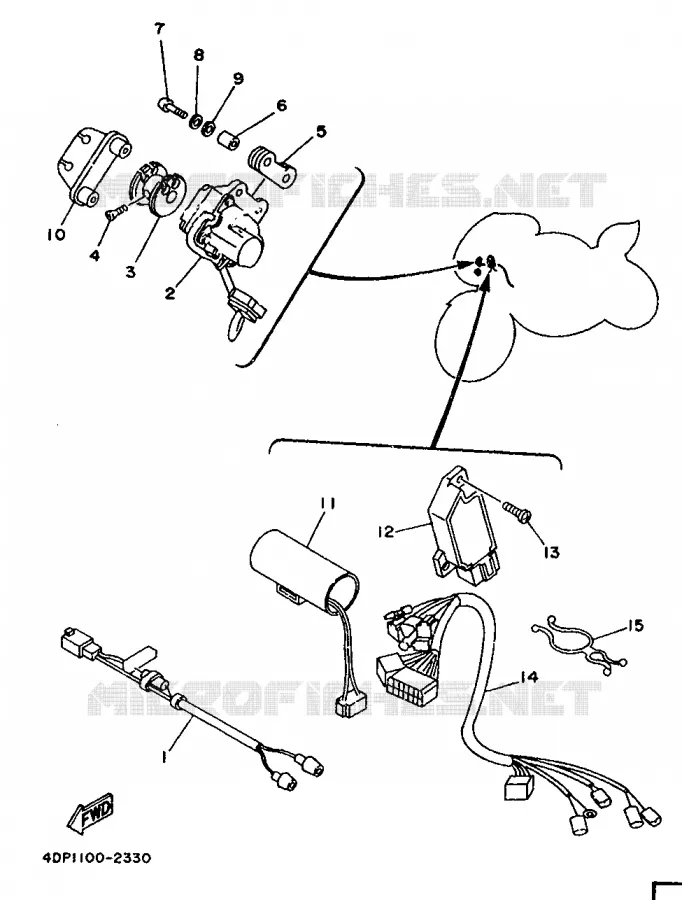

ELECTRICAL 1 FOR YAMAHA TZ 1994

FIL

3TC821170000 3TC821170000

Not available

GEARD MOTOR COMP.

3LC858500000 3LC858500000

Not available

PULLEY, DRIVE

3YL858210000 3YL858210000

Not available

SCREW, COUNTERSUNK (21V)

901510503100

901510502300

4,00 $

Unit Price

AMORTISSEUR

29L858230000 29L858230000

Not available

COLLAR

90387064A500

Not available

SCREW, PAN HEAD(6H4)

985800603500

978850603500

8,13 $

Unit Price

WASHER(6A1)

929950610000 929950610000

1,46 $

Unit Price

WASHER, PLATE

902010606700

902010638000

5,48 $

Unit Price

BRACKET, CABLE

3YL858240000 3YL858240000

Not available

CONDENSER, SMOOTHING

3TC819650000 3TC819650000

118,83 $

Unit Price

RECTIFIER & REGULAT0R ASSY

1JK81960A100 1JK81960A100

147,23 $

Unit Price

SCREW PAN HEAD

985800602000 985800602000

5,09 $

Unit Price

FAISCEAU DE FILS COMPLET

4DP825901000 4DP825901000

Not available

CLAMP(J38)

904642611400 904642611400

5,79 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha TZ250 of 1994. Let us know if you have any questions.
