SIDE COVER

SWINGARM FOR YAMAHA YZ 1992

REAR SHOCK ABSORBER

REAR ARM

3XJ221100100 3XJ221100100

1 129,14 $

Unit Price

SCREW, FLAT

901510404800

987070401000

2,10 $

Unit Price

PASTILLE

3XJ223550000 3XJ223550000

Not available

BEARING, CYLINDRICAL(2VM)

933172226200 933172226200

32,29 $

Unit Price

ROULEMENT

933172226300 933172226300

Not available

PLUG (31M)

903381015000 903381015000

3,75 $

Unit Price

OIL SEAL (23X)

931062201900 931062201900

14,01 $

Unit Price

BEARING, THRUST (3R7)

933422220800 933422220800

39,19 $

Unit Price

OIL SEAL (35X41.5X8-483)

931083500400 931083500400

17,66 $

Unit Price

COVER, THRUST2

3R4221290000 3R4221290000

Not available

BUSH, SOLID(1LV)

903801615800 903801615800

31,83 $

Unit Price

SHIM

156221270000 156221270000

2,79 $

Unit Price

SEAL, GUARD

3JD221510000 3JD221510000

101,85 $

Unit Price

BOLT, FLANGE(3DM)

950230602000

950240602000

2,41 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

RONDELLE PLATE

3JD221560000 3JD221560000

Not available

SUPPORT, CHAINE

3JD221990000 3JD221990000

Not available

PROTECTOR, CHAIN

3JD221470000 3JD221470000

41,20 $

Unit Price

COVER, THRUST 1

3JD221280000 3JD221280000

69,00 $

Unit Price

BOLT, FLANGE

910010602000

958170602000

3,91 $

Unit Price

SCREW, FLAT

987010603500

987070603500

2,07 $

Unit Price

SHAFT, PIVOT

1LX221410000 1LX221410000

70,81 $

Unit Price

NUT, SELF-LOCKING

901851612700

901851600200

21,31 $

Unit Price

WASHER, PLATE(33Y)

90201164H400 90201164H400

9,22 $

Unit Price

BRAS DE LIAISON

3XJ2217A0000 3XJ2217A0000

Not available

BEARING, CYLINDRICAL(2HJ)

933152204600 933152204600

39,49 $

Unit Price

BEARING, CYLINDRICAL(2HJ)

933152204600 933152204600

39,49 $

Unit Price

OIL SEAL

931092002900

931092007600

17,65 $

Unit Price

COLLAR(1LV)

90387164N200 90387164N200

26,41 $

Unit Price

COLLERETTE

90387164N300 90387164N300

Not available

ECROU

901791054400 901791054400

Not available

COLLAR (2HG)

90387167R500 90387167R500

22,73 $

Unit Price

BOLT, FLANGE(3HP)

958111001600

958171001600

7,09 $

Unit Price

WASHER, PLATE (17K)

90201106F200 90201106F200

3,75 $

Unit Price

BOLT (3JE)

90109142F400 90109142F400

33,15 $

Unit Price

WASHER, PLATE(33Y)

90201164H400 90201164H400

9,22 $

Unit Price

WASHER PLATE (3L6)

902011474000 902011474000

5,61 $

Unit Price

NUT, SELF-LOCKING (1J7)

901851407000 901851407000

14,67 $

Unit Price

BIELLE 1

3XJ2217F0000 3XJ2217F0000

Not available

BEARING(3XP)

933999993500 933999993500

95,17 $

Unit Price

CIRCLIP (23X)

934403011300 934403011300

1,70 $

Unit Price

SEAL, DUST

3XJ224750000 3XJ224750000

10,12 $

Unit Price

COLLAR(3XJ)

90387103X900 90387103X900

20,82 $

Unit Price

EMBLEME, BRAS ARRIERE

3XJ2218A0000 3XJ2218A0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

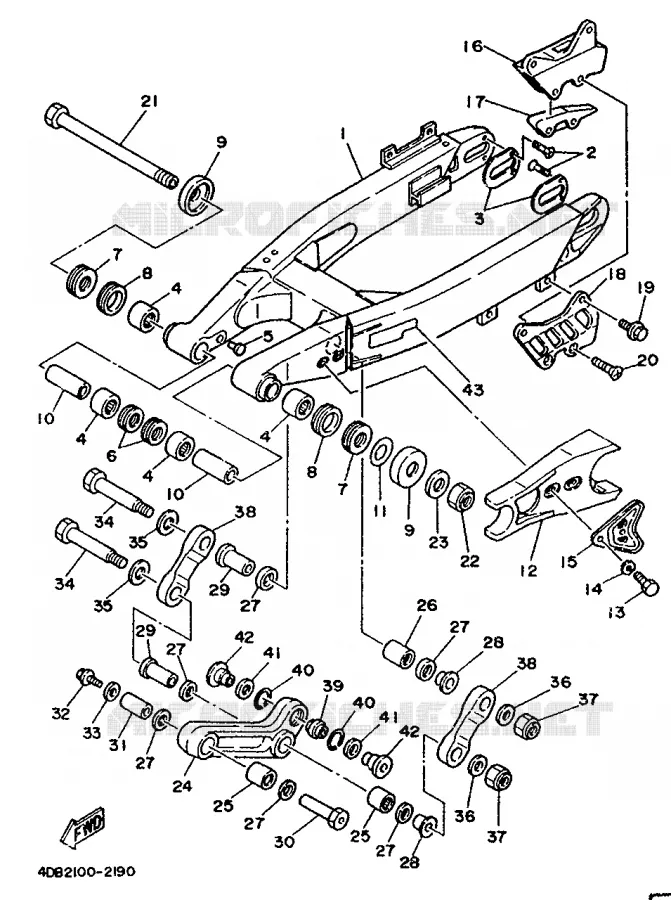

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha YZ250D of 1992. Let us know if you have any questions.
