FENDER

SWINGARM FOR YAMAHA TZ 1991

SWINGARM / SHOCK ABSORBER

BRAS ARRIERE COMP.

3YL221100100 3YL221100100

Not available

BAGUE

1X2221230000 1X2221230000

Not available

SHIM, REAR ARM (0.2T)

1X2221270020 1X2221270020

14,69 $

Unit Price

BEARING

933422250200

933422251800

88,71 $

Unit Price

BRG, CYL-CAL ROLLER 46.8G NT

933154252300 933154252300

33,29 $

Unit Price

COLLIER, D ENTRETOISE

3YL221260000 3YL221260000

Not available

AMORTISSEUR 1

1RK224830000 1RK224830000

Not available

COUVERCLE, BUTEE 1

1RK221280000 1RK221280000

Not available

COUVERCLE, BUTEE 2

5Y9221290100 5Y9221290100

Not available

PIVOT SHAFT

3MA221410000

3MA221410100

113,78 $

Unit Price

NUT, SELF-LOCKING

901851810400

901851800900

18,89 $

Unit Price

WASHER PLATE 168217580000

902011826200 902011826200

5,29 $

Unit Price

BRAS DE LIAISON

3YL2217A0000 3YL2217A0000

Not available

BEARING, CYLINDRICAL(3YL)

933173177100 933173177100

37,88 $

Unit Price

OIL SEAL(38V)

931091704800 931091704800

14,94 $

Unit Price

COLLAR(3TJ)

90387127W000 90387127W000

18,74 $

Unit Price

BOULON 1

1RK222410000 1RK222410000

Not available

WASHER, PLATE(3XP)

90201081A600

90201086P800

7,11 $

Unit Price

NUT, NYLON (6J8)

957800830000 957800830000

12,44 $

Unit Price

BOULON 1

1RK222410000 1RK222410000

Not available

WASHER, PLATE(3XP)

90201081A600

90201086P800

7,11 $

Unit Price

NUT, NYLON (6J8)

957800830000 957800830000

12,44 $

Unit Price

BIELLE 1

3YL2217F0000 3YL2217F0000

Not available

COLLAR(3TJ)

90387127W000 90387127W000

18,74 $

Unit Price

BAGUE

1RK221240000 1RK221240000

Not available

BEARING, CYLINDRICAL(3YL)

933173177100 933173177100

37,88 $

Unit Price

OIL SEAL(38V)

931091704800 931091704800

14,94 $

Unit Price

BOULON 1

1RK222410000 1RK222410000

Not available

WASHER, PLATE(3XP)

90201081A600

90201086P800

7,11 $

Unit Price

NUT, NYLON (6J8)

957800830000 957800830000

12,44 $

Unit Price

BEARING, CYLINDRICAL (23X)

933173177000

933153173200

44,85 $

Unit Price

COLLAR(3YL)

90387126X900 90387126X900

38,36 $

Unit Price

OIL SEAL(38V)

931091704800 931091704800

14,94 $

Unit Price

BOULON 1

1RK222410000 1RK222410000

Not available

WASHER, PLATE(3XP)

90201081A600

90201086P800

7,11 $

Unit Price

NUT, NYLON (6J8)

957800830000 957800830000

12,44 $

Unit Price

SCREW, BIND (J17)

989800602000 989800602000

5,09 $

Unit Price

PROTECTOR, CHAIN

3YL221470000 3YL221470000

164,30 $

Unit Price

PROTECTEUR, CHAINE

3TC221470000 3TC221470000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

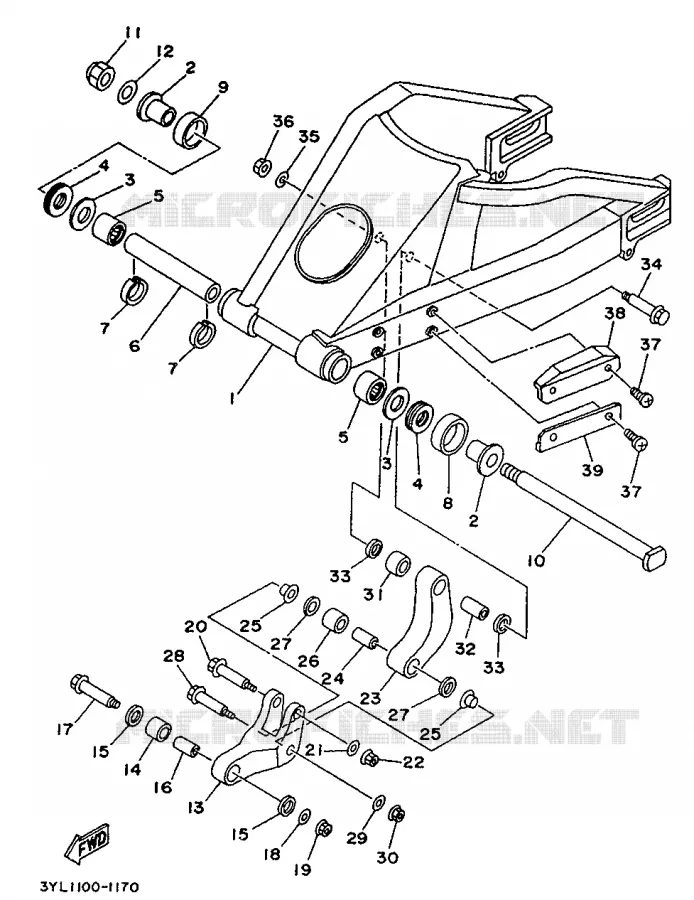

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha TZ250 of 1991. Let us know if you have any questions.
