FRONT MASTER CYLINDER

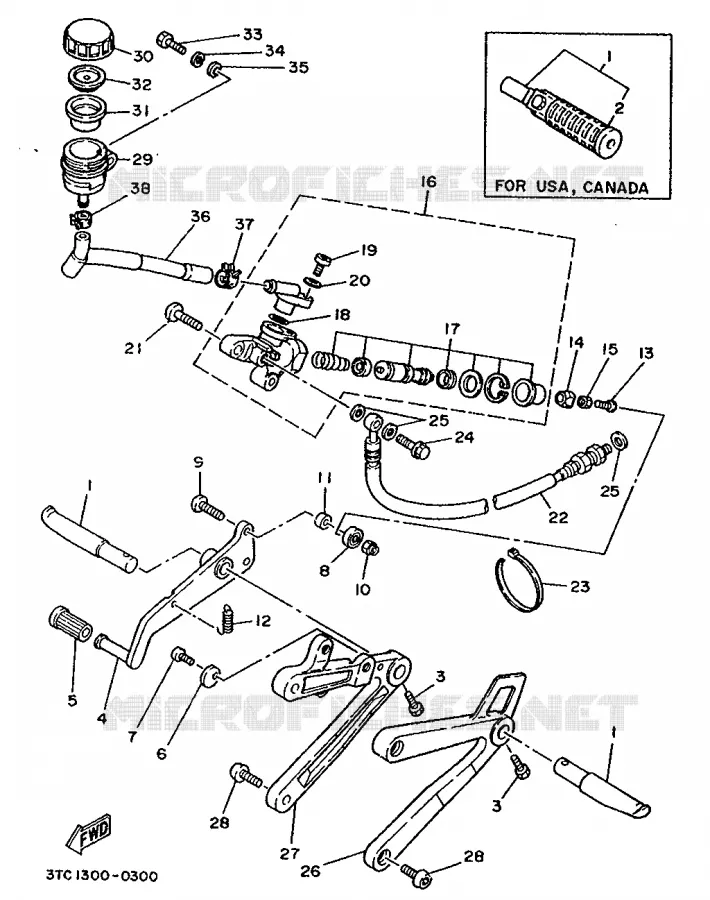

STAND / FOOTREST FOR YAMAHA TZ 1990

REPOSE-PIEDS 1

4A0274110000 4A0274110000

Not available

REPOSE-PIEDS AV (G)

5F7274101000 5F7274101000

Not available

.GARNITURE, REPOSE-PIEDS GARNITURE, REPOSE-PIEDS

1X2274130000 1X2274130000

Not available

BOULON

1RK274340000 1RK274340000

Not available

PEDALE, FREIN

3AK272110000 3AK272110000

Not available

COVER

240181130000 240181130000

6,08 $

Unit Price

RETENUE

3TC272140000 3TC272140000

Not available

BOLT, BUTTON HEAD

920190601600

920170601600

4,13 $

Unit Price

ROULEMENT (B696ZZ/ZA)

933006960600 933006960600

Not available

BOLT, BUTTON

920160602000

920170602000

4,00 $

Unit Price

NUT U (861)

901850604000 901850604000

6,38 $

Unit Price

COLLAR

903870602200

903870610600

3,05 $

Unit Price

RESSORT, PEDALE DE FREIN

1RK272160000 1RK272160000

Not available

BOULON, REGLAGE

4A0272270000 4A0272270000

Not available

ECROU, REGLAGE

4A0272380000 4A0272380000

Not available

NUT(650)

953030670000

953800670000

4,53 $

Unit Price

MAITRE-CYLINDRE AR COMP.

3LC2583V0000 3LC2583V0000

Not available

.JEU DE REPAR MAITRE CYL. JEU DE REPAR MAITRE CYL.

3LCW00420000 3LCW00420000

Not available

O-RING (22U)

932101562000

932101556600

5,61 $

Unit Price

SCREW, PAN HEAD

985110401200

985170401200

1,81 $

Unit Price

.RONDELLE RONDELLE

929020430000 929020430000

Not available

BOLT, BUTTON

920160803000

920170803000

2,46 $

Unit Price

DURITE DE FREIN

3LC258740000 3LC258740000

Not available

BAND

904651316900

1UA825910000

3,11 $

Unit Price

BOLT, UNION(3GM)

904011003400

904011015900

11,58 $

Unit Price

WASHER, PLATE(481)

902011011800 902011011800

6,40 $

Unit Price

SUPPORT, REPOSE-PIEDS 1

3TC274120000 3TC274120000

Not available

SUPPORT, REPOSE-PIEDS 2

3TC274220000 3TC274220000

Not available

BOULON

920190802000 920190802000

Not available

TANK, RESERVOIR

2VN258940000 2VN258940000

16,94 $

Unit Price

CAP, RESERVOIR

2VN258525000

3XP258525000

24,00 $

Unit Price

DIAPHRAGM, RESERVOIR

2VN258540000 2VN258540000

26,32 $

Unit Price

BUSH, DIAPHRAGM

2VN258550000 2VN258550000

14,20 $

Unit Price

BOLT (4MY)

970110602000

970070602000

2,42 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

DURITE DE RESERVOIR

3TC258950000 3TC258950000

Not available

CLIP (5K4)

904671405700 904671405700

3,84 $

Unit Price

CLIP (7K7)

904671104400 904671104400

8,37 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
