SIDE COVER - OIL TANK

SWINGARM FOR YAMAHA TY 1988

REAR SHOCK ABSORBER

BRAS ARRIERE COMP.

53Y2211000UJ 53Y2211000UJ

Not available

BEARING, CYLINDRICAL (23X)

933173223100 933173223100

42,70 $

Unit Price

BUSH, SOLID (23X)

903802211100 903802211100

22,47 $

Unit Price

OIL SEAL (23X)

931062201900 931062201900

14,01 $

Unit Price

RONDELLE, PLATE (1.4T)

90201222F400 90201222F400

Not available

COVER, THRUST

322221280100 322221280100

28,81 $

Unit Price

BUSH, SOLID(38V)

903801613400 903801613400

17,95 $

Unit Price

SHIM

156221270000 156221270000

2,79 $

Unit Price

PIVOT SHAFT

5X4221410100 5X4221410100

78,62 $

Unit Price

NUT, SELF-LOCKING

901851612700

901851600200

21,31 $

Unit Price

WASHER, PLATE (5X6)

90201160F600 90201160F600

9,94 $

Unit Price

PROTECTEUR, CHAINE

38V221470100 38V221470100

Not available

EMBLEME, BRAS ARRIERE

1YY2218A0000 1YY2218A0000

Not available

BRAS, TENDEUR

38V2217902UJ 38V2217902UJ

Not available

NIPPLE, GREASE

937000600500 937000600500

13,35 $

Unit Price

BRAS 1

38V2217M1000 38V2217M1000

Not available

BUSH, SOLID(38V)

903800813600 903800813600

8,56 $

Unit Price

BOLT, FLANGE (3JPE)

950230801600

950240801600

3,62 $

Unit Price

RESSORT, TORSION

905083567500 905083567500

Not available

TENSIONER

5X6221780000 5X6221780000

23,60 $

Unit Price

BUSH

4V4221840000 4V4221840000

8,54 $

Unit Price

BOLT (2W6)

901010842800 901010842800

3,14 $

Unit Price

WASHER(6TC)

902010820000

929070820000

2,13 $

Unit Price

NUT, SELF-LOCKING

956010820000 956010820000

3,15 $

Unit Price

CARTER, CHAINE

38V223110000 38V223110000

Not available

SCREW, W-WASHER

901590603200 901590603200

2,19 $

Unit Price

SUPPORT, RELAIS

38V2217Y0000 38V2217Y0000

Not available

DOUILLE, SOLIDE

903811605200 903811605200

Not available

.DOUILLE, SOLIDE

903811205100 903811205100

Not available

BOLT, WASHER BASED(36Y)

901050829200

901050831000

5,49 $

Unit Price

NUT, SELF-LOCKING

956010820000 956010820000

3,15 $

Unit Price

BRAS DE LIAISON

38V2217A0000 38V2217A0000

Not available

BEARING, CYLINDRICAL (23X)

933153173200 933153173200

44,85 $

Unit Price

ROULEMENT

933172164700 933172164700

Not available

OIL SEAL(38V)

931091704800 931091704800

14,94 $

Unit Price

DOUILLE, SOLIDE

903801213500 903801213500

Not available

OIL SEAL (22W)

931091603500 931091603500

8,62 $

Unit Price

BOULON

901091070200 901091070200

Not available

NUT, SELF LOCKING (23X)

901851012000 901851012000

6,52 $

Unit Price

WASHER (7A9)

90201100F700 90201100F700

7,77 $

Unit Price

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

BIELLE 1

38V2217F0000 38V2217F0000

Not available

BAGUE, INFERIEURE D AMORTIS

5X6222260000 5X6222260000

Not available

COLLERETTE

903871815700 903871815700

Not available

COLLERETTE

903871209400 903871209400

Not available

COVER, THRUST 2

5X6221290000 5X6221290000

14,75 $

Unit Price

BOULON

901011259700 901011259700

Not available

NUT, SELF LOCKING (23X)

901851206100

901851211900

11,34 $

Unit Price

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

BOULON

901011012000 901011012000

Not available

WASHER (7A9)

90201100F700 90201100F700

7,77 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

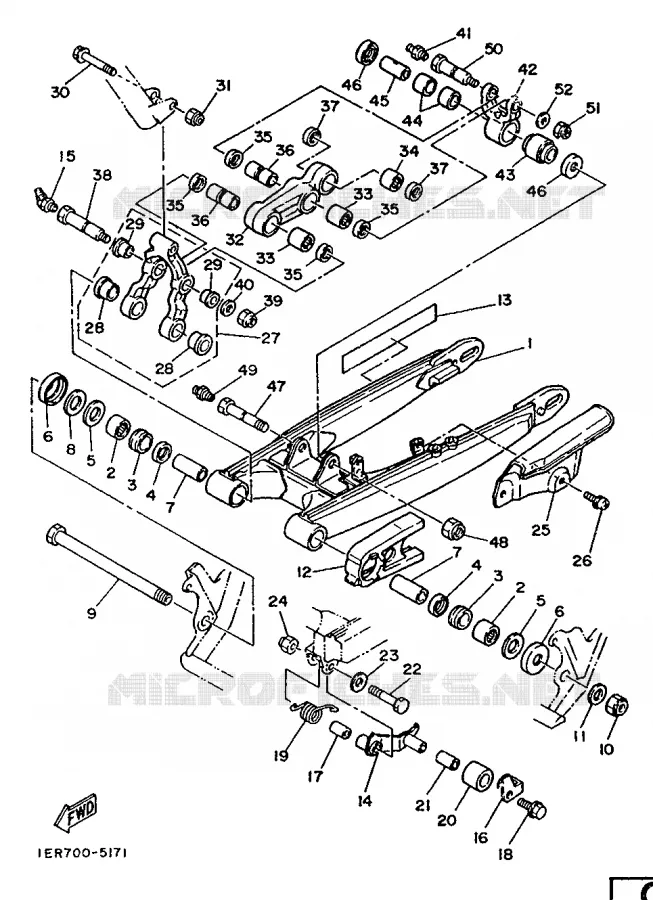

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha TY250S of 1988. Let us know if you have any questions.
