FRAME

FENDER FOR YAMAHA TY 1988

SIDE COVER

FENDER, FRONT

38V215110000

4AJ215110000

65,60 $

Unit Price

FENDER BRACKET

38V215120000

4GG215120000

63,89 $

Unit Price

BOLT, WITH WASHER

901190507100 901190507100

3,58 $

Unit Price

NUT, S-L FLANGE

956010520000

956070520000

4,71 $

Unit Price

BOLT, BUTTON HEAD

920110601400

920170601400

4,00 $

Unit Price

BOLT, BUTTON

920110603000

920170603000

3,90 $

Unit Price

NUT, SELF-LOCKING

956010610000

956170610000

8,11 $

Unit Price

GARDE BOUE AR

53Y216100100 53Y216100100

Not available

BOLT, BUTTON HEAD

920110601400

920170601400

4,00 $

Unit Price

WASHER, PLATE

902010606700

902010638000

5,48 $

Unit Price

BAVETTE

38V216210000 38V216210000

Not available

CLAMP

5Y9124910000 5Y9124910000

2,07 $

Unit Price

GROMMET (431)

904801405200 904801405200

6,52 $

Unit Price

SUPPORT DE GARDE BOUE

59N2161710UJ 59N2161710UJ

Not available

BOLT, FLANGE

958010601000

958120601000

2,35 $

Unit Price

CLAMP(53Y)

904641506500 904641506500

9,61 $

Unit Price

BOITIER A OUTILS

17W281730000 17W281730000

Not available

LID

17W281850000 17W281850000

21,06 $

Unit Price

BOLT, BUTTON HEAD

920110601400

920170601400

4,00 $

Unit Price

WASHER, PLATE

902010606700

902010638000

5,48 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

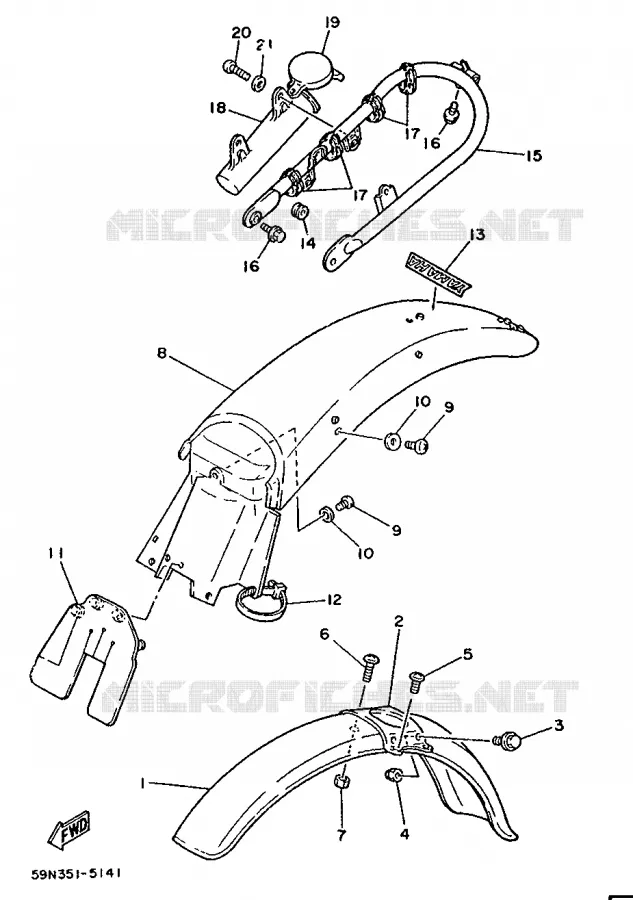

Find on this page all the original spare parts relating to the FENDER of your Yamaha TY250S of 1988. Let us know if you have any questions.
