MIDDLE SHAFT

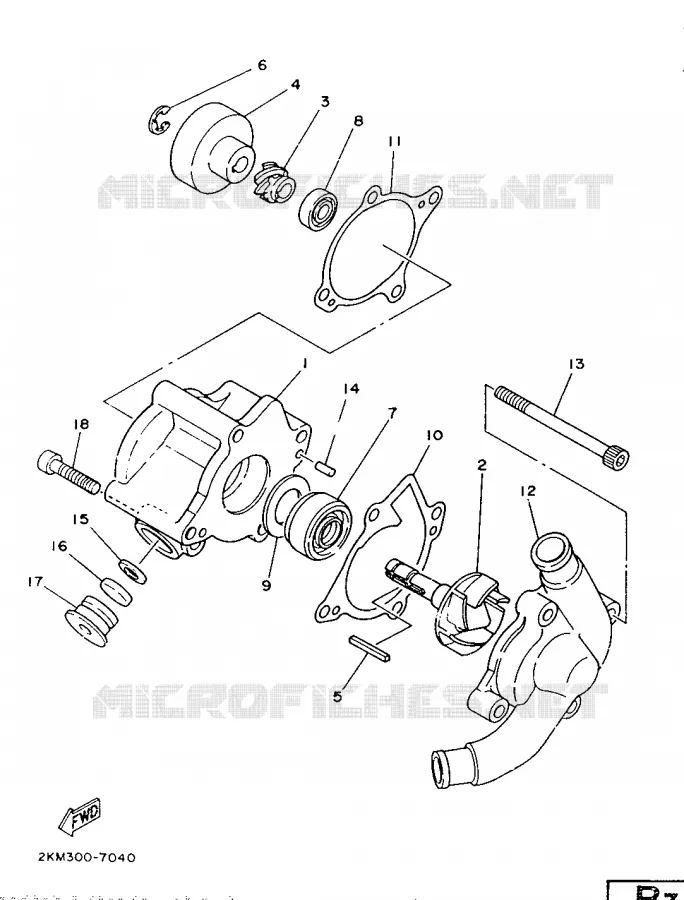

WATERPUMP FOR YAMAHA TZ 1987

RADIATOR / HOSES

CARTER, POMPE A EAU

5F7124210000 5F7124210000

Not available

AXE DE ROTOR

5F7124500000 5F7124500000

Not available

PIGNON, ENTRAINEMENT (5T)

5F7178310000 5F7178310000

Not available

PIGNON D AXE DE ROTOR

5F7124590000 5F7124590000

Not available

CLAVETTE, DROITE

902820304400 902820304400

Not available

CIRCLIP(6L2)

990010760000

990800760000

1,77 $

Unit Price

OIL SEAL (4V2)

931031211900 931031211900

33,78 $

Unit Price

ROULEMENT (B628)

933006280500 933006280500

Not available

RONDELLE, PLATE

902011955100 902011955100

Not available

JOINT, COUVERCLE DE CARTER 1

5F7124270000 5F7124270000

Not available

JOINT, COUVERCLE DE CARTER 2

1RK124280000 1RK124280000

Not available

COUVERCLE DE CARTER DE POMPE

5F7124220000 5F7124220000

Not available

BOLT, SOCKET

913160607500

913170607500

5,20 $

Unit Price

PIN, DOWEL (603)

936041001100 936041001100

5,10 $

Unit Price

WASHER (692)

902011216300

9020112M3400

2,16 $

Unit Price

PLUG (517)

903381806400 903381806400

6,80 $

Unit Price

COUVERCLE, LOGEMENT

2KM178210000 2KM178210000

Not available

BOLT, HEXAGON SOCKET HEAD(1VJ)

913160603000

901100613800

5,60 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATERPUMP of your Yamaha TZ250T of 1987. Let us know if you have any questions.
