CAMSHAFT / TIMING CHAIN

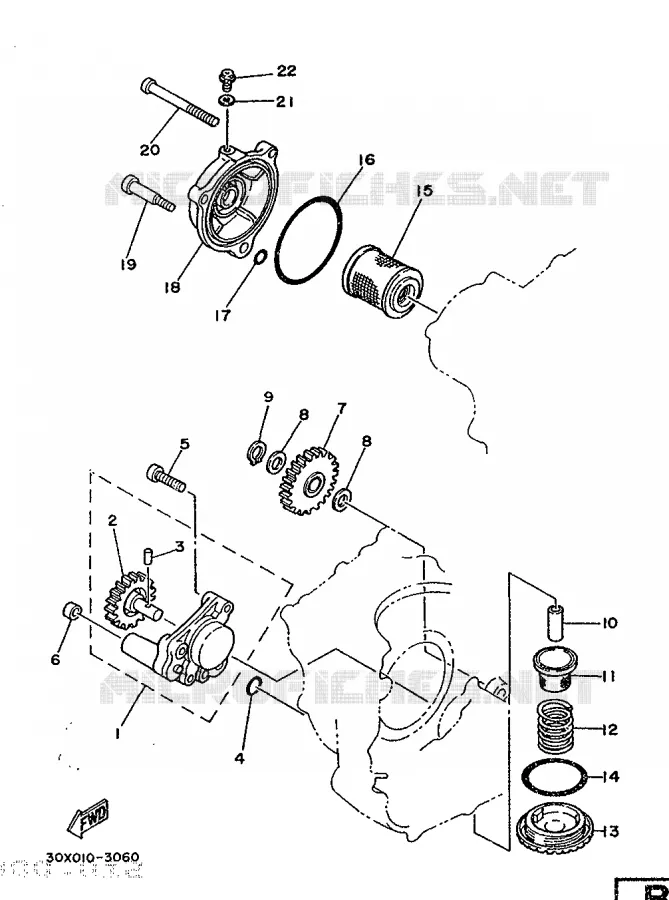

OIL PUMP FOR YAMAHA XT 1986

INTAKE

OIL PUMP ASSY

30X133000000

30X133001000

85,09 $

Unit Price

GEAR, PUMP DRIVEN 2

3Y6133260100

3Y6133261000

20,49 $

Unit Price

PIN, DOWEL (137)

936031203000 936031203000

2,59 $

Unit Price

O-RING (611)

932101009600 932101009600

3,65 $

Unit Price

SCREW, PAN HEAD (76T)

925010602500

985170602500

2,10 $

Unit Price

GASKET (3Y1)

904300615600 904300615600

4,16 $

Unit Price

PIGNON INTERMED, POMPE A HUILE

30X133410000 30X133410000

Not available

WASHER, PLAIN(735)

902011011900 902011011900

6,46 $

Unit Price

CIRCLIP(10W)

990091040000 990091040000

1,64 $

Unit Price

PIPE, OIL 1

3Y1134160100

2XK134160000

4,13 $

Unit Price

STRAINER, OIL

3Y1134110000

51Y134110000

11,37 $

Unit Price

RESSORT, COMPRESSION

905010857600 905010857600

Not available

PLUG, DRAIN

30X153510000

4HC153510000

21,62 $

Unit Price

O-RING

932103538900

93210347A100

2,44 $

Unit Price

OIL CLEANER ASSY

5H0134400000

5H0134400900

19,29 $

Unit Price

O-RING (583 OIL CLEANER)

932106429700 932106429700

5,87 $

Unit Price

O-RING (583 OIL DRAIN BOLT)

932100713500 932100713500

5,70 $

Unit Price

COUVERCLE, ELEMENT A HUILE

30X134470000 30X134470000

Not available

BOLT (583 OIL DRAIN)

901090641900 901090641900

9,22 $

Unit Price

BOLT, SOCKET

913160606500

913170606500

5,20 $

Unit Price

GASKET (583)

904300512600 904300512600

7,43 $

Unit Price

SCREW (583)

901490511000 901490511000

2,61 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Yamaha XT 250 of 1986. Let us know if you have any questions.
