FENDER

SWINGARM FOR YAMAHA TZ 1986

REAR SHOCK ABSORBER

BRAS ARRIERE COMP.

1RK221100000 1RK221100000

Not available

BAGUE

1X2221230000 1X2221230000

Not available

SHIM, REAR ARM (0.2T)

1X2221270020 1X2221270020

14,69 $

Unit Price

BEARING

933422250200

933422251800

88,71 $

Unit Price

ROULEMENT

933155252300 933155252300

Not available

COLLIER, D ENTRETOISE

1RK221260000 1RK221260000

Not available

AMORTISSEUR 1

1RK224830000 1RK224830000

Not available

COUVERCLE, BUTEE 1

1RK221280000 1RK221280000

Not available

COUVERCLE, BUTEE 2

5Y9221290100 5Y9221290100

Not available

AXE, PIVOT

1RK221410000 1RK221410000

Not available

ECROU, AUTO-BLOCANT

901851813800 901851813800

Not available

WASHER PLATE 168217580000

902011826200 902011826200

5,29 $

Unit Price

BRAS DE LIAISON

1RK2217A0000 1RK2217A0000

Not available

ROULEMENT

933174165500 933174165500

Not available

BAGUE

1RK221230000 1RK221230000

Not available

BOULON 1

1RK222410000 1RK222410000

Not available

WASHER, PLATE(3XP)

90201081A600

90201086P800

7,11 $

Unit Price

NUT, NYLON (6J8)

901850805700

957800830000

12,44 $

Unit Price

BAGUE

1RK221240000 1RK221240000

Not available

BOULON 1

1RK222410000 1RK222410000

Not available

WASHER, PLATE(3XP)

90201081A600

90201086P800

7,11 $

Unit Price

NUT, NYLON (6J8)

901850805700

957800830000

12,44 $

Unit Price

BRAS, TENDEUR

1RK221790000 1RK221790000

Not available

BAGUE

1RK221230000 1RK221230000

Not available

ROULEMENT

933174165500 933174165500

Not available

BAGUE

1RK221240000 1RK221240000

Not available

BOULON 1

1RK222410000 1RK222410000

Not available

WASHER, PLATE(3XP)

90201081A600

90201086P800

7,11 $

Unit Price

NUT, NYLON (6J8)

901850805700

957800830000

12,44 $

Unit Price

ROULEMENT

933172125400 933172125400

Not available

COLLERETTE

90387105N100 90387105N100

Not available

BOULON

90109081E200 90109081E200

Not available

WASHER, PLATE(3XP)

90201081A600

90201086P800

7,11 $

Unit Price

NUT

901850805500 901850805500

12,15 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

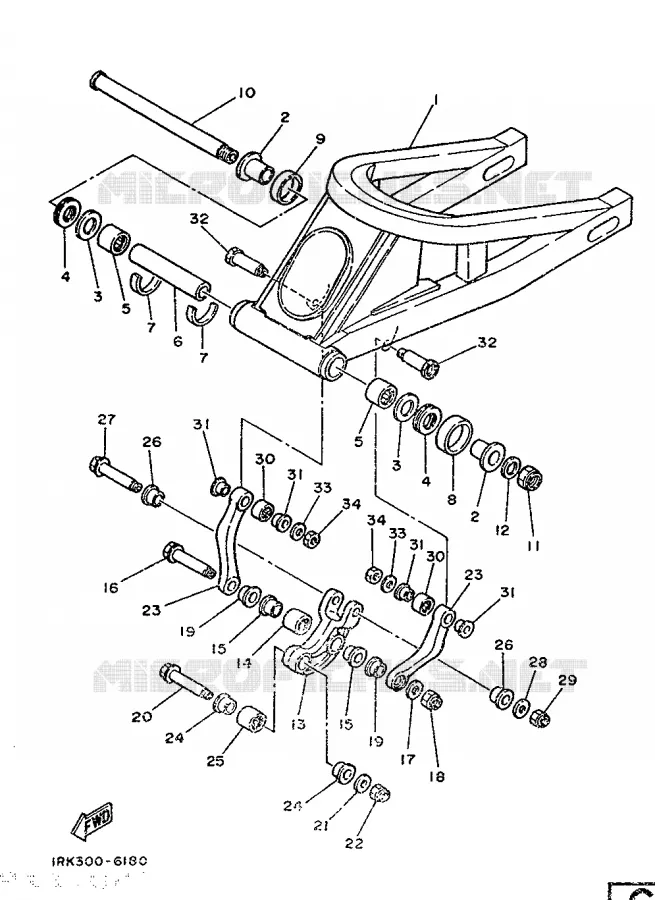

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha TZ250S of 1986. Let us know if you have any questions.
