SIDE COVER

SWINGARM FOR YAMAHA VIRAGO 1989

STEERING

REAR ARM COMP.

3LS221100033 3LS221100033

311,04 $

Unit Price

BUSH(3DM)

903861816300 903861816300

14,75 $

Unit Price

OIL SEAL (2J5)

931091802000 931091802000

17,01 $

Unit Price

COVER, THRUST 2

55K221290000 55K221290000

24,29 $

Unit Price

BUSH, SOLID (31J)

903801212100 903801212100

20,40 $

Unit Price

SEAL, GUARD

55K221510100 55K221510100

43,96 $

Unit Price

BOLT, WITH WASHER (10V)

901190506200 901190506200

3,53 $

Unit Price

WASHER (3R8)

902090622300

902090618700

4,02 $

Unit Price

SHAFT, PIVOT

2UJ221410100 2UJ221410100

30,11 $

Unit Price

YBS66-12 WASHER, PLAIN

929011220000

929901220000

3,94 $

Unit Price

NUT, SELF-LOCKING(1KH)

901851204600

901851213400

11,34 $

Unit Price

CASE, CHAIN

3LS223110000 3LS223110000

118,21 $

Unit Price

SCREW, BIND(J45)

989030601200

989800601200

4,22 $

Unit Price

WASHER, PLATE

90201065F300

902010602000

4,81 $

Unit Price

AMORTISSEUR, ARRIERE

3DM222100000 3DM222100000

Not available

DAMPER, SHOCK ABSORBER LOWER

447222172100 447222172100

5,56 $

Unit Price

BUSH, REAR SHOCK ABSORBER

447222162000 447222162000

5,56 $

Unit Price

BOLT, FLANGE(2UJ)

950230801200

950240801200

4,94 $

Unit Price

WASHER 1

1UJ222430000 1UJ222430000

6,59 $

Unit Price

WASHER, PLATE(3DM)

90201087G200 90201087G200

4,23 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

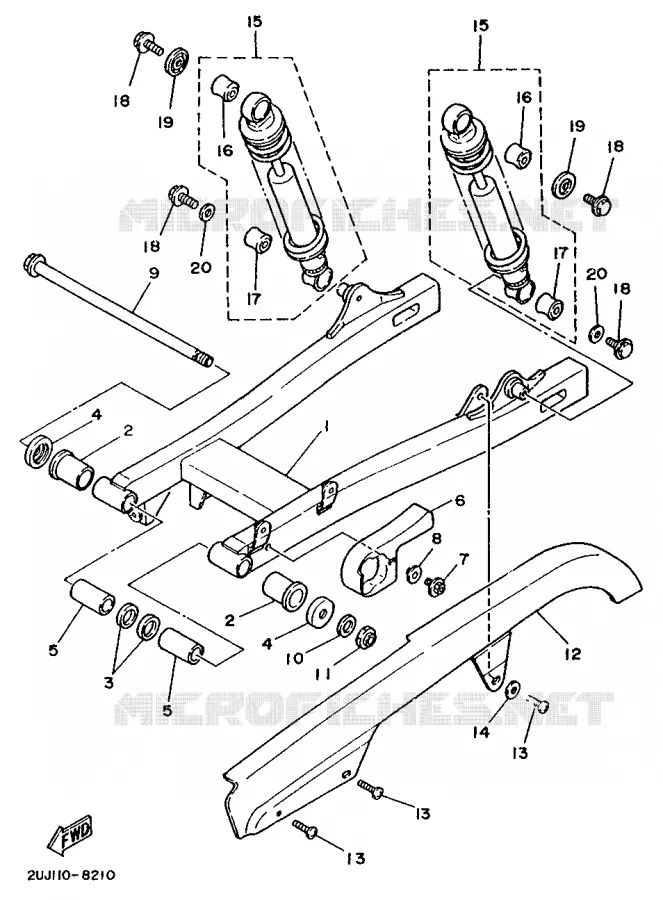

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha XV240 of 1989. Let us know if you have any questions.
