CARBURETOR

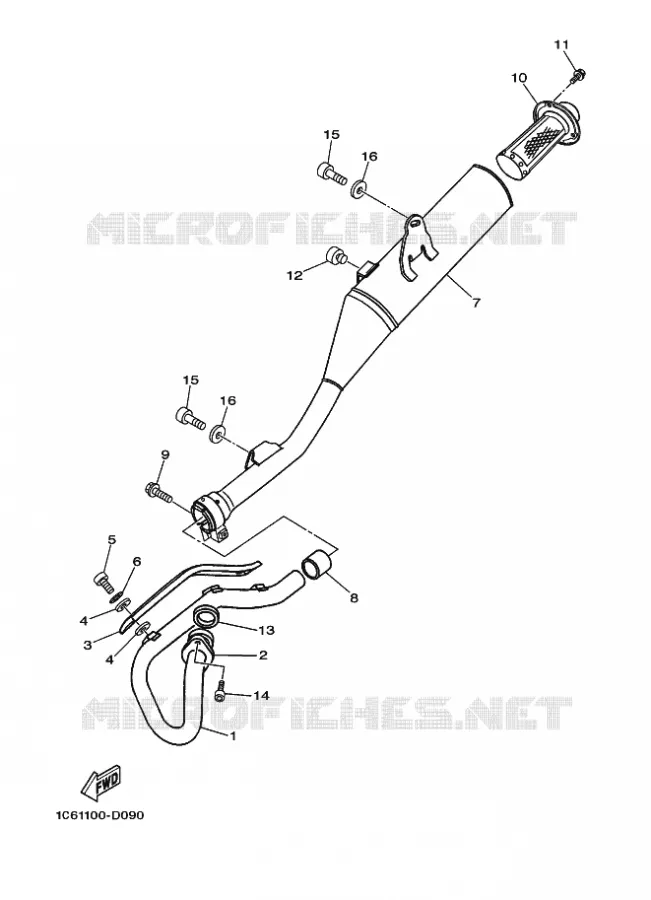

EXHAUST FOR YAMAHA TTR 2025

CRANKCASE

Item numbers

LABEL, CAUTION

1C6146110000

1C6146110100

405,69 $

Unit Price

NUT, RING

15A146120000

5H0146120000

18,07 $

Unit Price

PROTECTOR, EXHAUST PIPE

4VWE46280000 4VWE46280000

165,75 $

Unit Price

WASHER, PROTECTOR

4BDE47660000

4BD147660000

1,73 $

Unit Price

SCREW, PAN HEAD

9890M0601000

9851M0601000

1,64 $

Unit Price

WASHER, WAVE(3RW)

902060609000 902060609000

3,43 $

Unit Price

MUFFLER 1

1C6E47111000

Not available

GASKET, MUFFLER

3YF147140000 3YF147140000

32,99 $

Unit Price

BOLT, FLANGE(4MY)

9502M0802500

950270802500

3,84 $

Unit Price

SPARK ARRESTER ASSY

1C6147800000 1C6147800000

381,04 $

Unit Price

BOLT, FLANGE

9502L0601000

950220601000

1,00 $

Unit Price

DAMPER, LOCATING 1

4FU241810000

2MCF41810000

14,15 $

Unit Price

GASKET, EXHAUST PIPE

4BE146130000 4BE146130000

8,31 $

Unit Price

BOLT, SOCKET HEAD

9131M0602000

913140602000

3,84 $

Unit Price

BOLT(2KF)

90109085E200 90109085E200

8,03 $

Unit Price

WASHER (853)

902010832600 902010832600

4,80 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
