CAMSHAFT / TIMING CHAIN

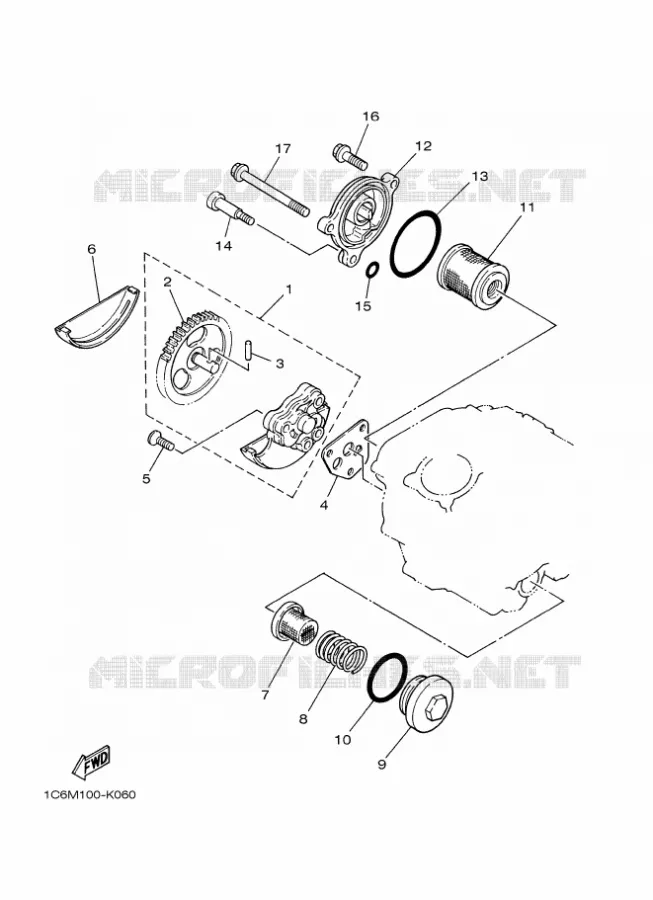

OIL PUMP FOR YAMAHA TTR 2023

INTAKE

Item numbers

OIL PUMP ASSY

5H0133000200 5H0133000200

131,34 $

Unit Price

GEAR, PUMP DRIVEN 2

5H0133260100 5H0133260100

44,80 $

Unit Price

PIN, DOWEL (137)

936031203000 936031203000

2,48 $

Unit Price

GASKET, PUMP COVER

4BE133290100

3GD133290000

2,51 $

Unit Price

SCREW, FLAT

9870M0603000

987070603000

2,01 $

Unit Price

COVER, PUMP GEAR

5H0133270000 5H0133270000

18,48 $

Unit Price

STRAINER, OIL

51Y134110000 51Y134110000

10,91 $

Unit Price

SPRING, COMPRESSION (3Y1)

905011857600 905011857600

2,47 $

Unit Price

PLUG, DRAIN

4VWE53510000

5H0153510000

26,02 $

Unit Price

O-RING

93210347A100 93210347A100

2,34 $

Unit Price

OIL CLEANER ASSY

5H0134400000

5H0134400900

19,29 $

Unit Price

COVER, OIL ELEMENT

4VWE34470100

4VWE34470000

31,68 $

Unit Price

O-RING (341)

932105417500 932105417500

12,75 $

Unit Price

BOLT

90109065G000 90109065G000

8,73 $

Unit Price

O-RING (583 OIL DRAIN BOLT)

932100713500 932100713500

5,47 $

Unit Price

BOLT, SMALL FLANGE

9502M0602500

950270602500

2,39 $

Unit Price

BOLT, WASHER BASED

90105064A600 90105064A600

3,55 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
