SIDE COVER

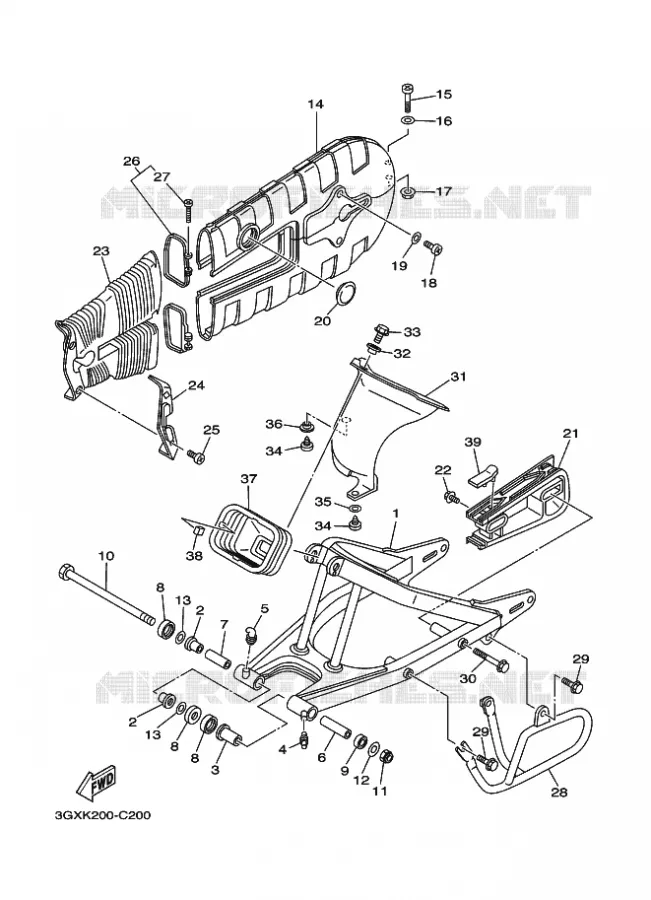

SWINGARM FOR YAMAHA AG 2012

REAR SHOCK ABSORBER

Item numbers

BRAS ARRIERE COMP.

36X221100035 36X221100035

Not available

BUSH 1

15A221230000 15A221230000

27,87 $

Unit Price

BUSHING (401-22123-00)

903861802800 903861802800

21,34 $

Unit Price

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

NIPPLE, GREASE (36X)

937000600900 937000600900

15,10 $

Unit Price

COLLIER, D'ENTRETOISE

36X221260000 36X221260000

Not available

COLLIER, D'ENTRETOISE

36X221261000 36X221261000

Not available

COVER, THRUST 1

401221280100 401221280100

25,52 $

Unit Price

OIL SEAL (2J5)

931091802000 931091802000

17,01 $

Unit Price

AXE, PIVOT

3GX221410000 3GX221410000

Not available

NUT, SELF-LOCKING(1KH)

901851213400 901851213400

11,34 $

Unit Price

WASHER, PLATE (8K2)

90201120A500 90201120A500

5,48 $

Unit Price

SHIM

401221270000 401221270000

6,81 $

Unit Price

CARTER DE CHAINE

36X223100035 36X223100035

Not available

SCREW, PAN

985070604500 985070604500

2,10 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

NUT, U FLANGE

956070620000

956040620000

4,30 $

Unit Price

SCREW, PAN HEAD(3TJ)

985070601600 985070601600

2,29 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

CAP

148223150000 148223150000

7,14 $

Unit Price

JOINT 1

36X223580000 36X223580000

Not available

BOLT, WITH WASHER(1JK)

901190607400

901190612300

0,80 $

Unit Price

COUVERCLE, ANTI-POUSSIERE

36X223250000 36X223250000

Not available

SUPPORT, COUV ANTI-POUSSIERE

36X223240000 36X223240000

Not available

GASKET, EXHAUST

985070500800 985070500800

1,93 $

Unit Price

SUPPORT 3, CARTER DE CHAINE

36X223230000 36X223230000

Not available

SCREW, PAN

985070403000 985070403000

Not available

PROTECTEUR, CHAINE

36X223180000 36X223180000

Not available

BOLT, FLANGE

958070801200

958170801200

3,75 $

Unit Price

BOLT, FLANGE

958270809000

958170809000

4,48 $

Unit Price

BUTOIR DE GARDE BOUE

36X223270100 36X223270100

Not available

COLLAR (8G8)

903870668100 903870668100

9,95 $

Unit Price

BOLT, FLANGE

958070601600

958170601600

3,30 $

Unit Price

SCREW, TAPPING(3JP)

977075051200

977075061200

0,52 $

Unit Price

WASHER PLATE 803835240000

902010503200 902010503200

5,62 $

Unit Price

COLLAR(47X)

90387061M000 90387061M000

10,64 $

Unit Price

SOUFFLET, CAOUTCHOUC

36X221890000 36X221890000

Not available

SOUFFLET, CAOUTCHOUC

36X221890100 36X221890100

Not available

JONC

904680613400 904680613400

Not available

JOINT, PROTECTEUR

36X221510000 36X221510000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Choose your Yamaha 200 AG 2012 model
