STEERING

FRONT FORK FOR YAMAHA DTR 1988

FUEL TANK

FOURCHE AVANT COMPLETE (G)

2YY231020000 2YY231020000

Not available

LEFT OUTER TUBE

3BN231260000

3FW231267100

675,56 $

Unit Price

CLIP, OIL SEAL

26H231560000 26H231560000

8,54 $

Unit Price

OIL SEAL

3BN231450000

3SP23145L000

34,11 $

Unit Price

METAL, SLIDE 1

3BN231250000

4FM231254000

35,79 $

Unit Price

SEAL, DUST

43F231441000 43F231441000

30,36 $

Unit Price

WASHER, OIL SEAL

36Y231461000 36Y231461000

18,58 $

Unit Price

INNER TUBE

3BN231100000 3BN231100000

474,32 $

Unit Price

.BROCHE, CONIQUE BROCHE, CONIQUE

4V423173L000 4V423173L000

Not available

FRONT FORK CYLINDER

2YY231700000 2YY231700000

53,56 $

Unit Price

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

2YY231410000 2YY231410000

Not available

.SIEGE, SUPERIEUR DE RESSORT SIEGE, SUPERIEUR DE RESSORT

43F231421000 43F231421000

Not available

.BOULON, CHAPEAU BOULON, CHAPEAU

43F231111000 43F231111000

Not available

O-RING

43F231881000 43F231881000

8,54 $

Unit Price

.RONDELLE DE JOIT SPY RONDELLE DE JOIT SPY

3BN231460000 3BN231460000

Not available

GASKET

4V423158L000 4V423158L000

8,54 $

Unit Price

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

SCREW, PAN HEAD(3XP)

4H7231190000

985170400600

6,22 $

Unit Price

BOLT

4V423181L000 4V423181L000

8,37 $

Unit Price

.ENTRETOISE ENTRETOISE

2YY231180000 2YY231180000

Not available

O-RING

3J2231470000 3J2231470000

7,76 $

Unit Price

AIR VALVE COMP.

23X23190L000 23X23190L000

30,49 $

Unit Price

FOURCHE AVANT COMPLETE (D)

2YY231030000 2YY231030000

Not available

OUTER TUBE R

3BN231360000

1D0231361000

550,27 $

Unit Price

CLIP, OIL SEAL

26H231560000 26H231560000

8,54 $

Unit Price

OIL SEAL

3BN231450000

3SP23145L000

34,11 $

Unit Price

METAL, SLIDE 1

3BN231250000

4FM231254000

35,79 $

Unit Price

SEAL, DUST

43F231441000 43F231441000

30,36 $

Unit Price

WASHER, OIL SEAL

36Y231461000 36Y231461000

18,58 $

Unit Price

INNER TUBE

3BN231100000 3BN231100000

474,32 $

Unit Price

.BROCHE, CONIQUE BROCHE, CONIQUE

4V423173L000 4V423173L000

Not available

FRONT FORK CYLINDER

2YY231700000 2YY231700000

53,56 $

Unit Price

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

2YY231410000 2YY231410000

Not available

.SIEGE, SUPERIEUR DE RESSORT SIEGE, SUPERIEUR DE RESSORT

43F231421000 43F231421000

Not available

.BOULON, CHAPEAU BOULON, CHAPEAU

43F231111000 43F231111000

Not available

O-RING

43F231881000 43F231881000

8,54 $

Unit Price

.RONDELLE DE JOIT SPY RONDELLE DE JOIT SPY

3BN231460000 3BN231460000

Not available

GASKET

4V423158L000 4V423158L000

8,54 $

Unit Price

GASKET, DRAIN PLUG

122231290000 122231290000

4,41 $

Unit Price

SCREW, PAN HEAD(3XP)

4H7231190000

985170400600

6,22 $

Unit Price

BOLT

4V423181L000 4V423181L000

8,37 $

Unit Price

.ENTRETOISE ENTRETOISE

2YY231180000 2YY231180000

Not available

O-RING

3J2231470000 3J2231470000

7,76 $

Unit Price

AIR VALVE COMP.

23X23190L000 23X23190L000

30,49 $

Unit Price

NUT(6TA)

953110660000

953170660000

2,10 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

HOLDER, AXLE

4V223167L000 4V223167L000

32,08 $

Unit Price

BOOT

2KF231911000

2KF231911100

67,00 $

Unit Price

BAND

43M23192L000 43M23192L000

14,70 $

Unit Price

SCREW, PAN HEAD

985060401800

985070401800

1,90 $

Unit Price

UNDER BRACKET

3BN233400000 3BN233400000

390,89 $

Unit Price

BOLT, FLANGE

958110805500

958170805500

4,30 $

Unit Price

NUT, FLANGE(JN5)

957010850000

957070850000

1,74 $

Unit Price

GUIDE, CABLE

4V5233890000 4V5233890000

21,31 $

Unit Price

HOLDER, WIRE

3R4233170000 3R4233170000

23,86 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

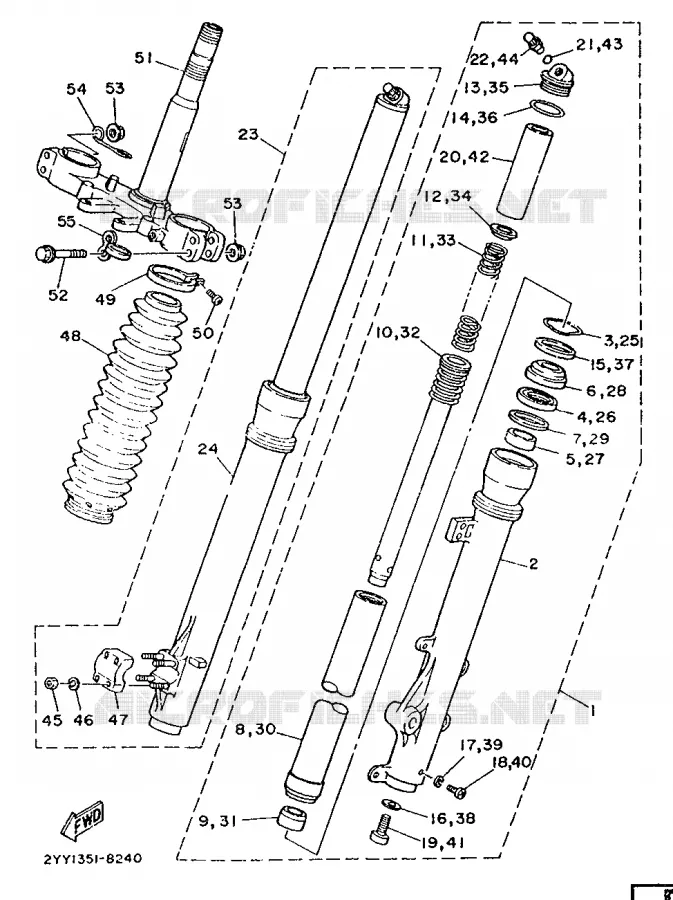

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha DT200R of 1988. Let us know if you have any questions.
