CYLINDER

CRANKSHAFT / PISTON FOR YAMAHA MIDNIGHT STAR 2006

VALVE

CRANKSHAFT ASSY

1D7114000100

5C7114000000

3 078,12 $

Unit Price

CONNECTING ROD ASSY

1D7116500000 1D7116500000

426,01 $

Unit Price

BOLT, CONNECTING ROD

5YU116540000 5YU116540000

9,64 $

Unit Price

PLANE BEARING, CONNECTING ROD

5YU116560000 5YU116560000

15,21 $

Unit Price

PLANE BEARING, CONNECTING ROD

5YU116561000 5YU116561000

15,21 $

Unit Price

PLANE BEARING, CONNECTING ROD

5YU116562000 5YU116562000

18,34 $

Unit Price

PLANE BEARING, CONNECTING ROD

5YU116563000 5YU116563000

18,34 $

Unit Price

PLANE BEARING, CONNECTING ROD

5YU116564000 5YU116564000

15,21 $

Unit Price

PISTON (STD)

1D7116310000 1D7116310000

287,88 $

Unit Price

PISTON RING SET (STD)

1D7116100000 1D7116100000

49,20 $

Unit Price

CIRCLIP

934502415400 934502415400

1,27 $

Unit Price

PIN, PISTON

5VK116330000 5VK116330000

48,74 $

Unit Price

CIRCLIP

934502415400 934502415400

1,27 $

Unit Price

GEAR, DRIVE SET

1D7W114B0000 1D7W114B0000

642,10 $

Unit Price

BOLT, WASHER BASED (4H7)

901051015200 901051015200

14,11 $

Unit Price

KEY, STRAIGHT

902820400100 902820400100

8,51 $

Unit Price

SHAFT 1

1D7114550000 1D7114550000

63,56 $

Unit Price

O-RING

932100600300 932100600300

5,36 $

Unit Price

BRACKET

1D71135A0000 1D71135A0000

53,19 $

Unit Price

BOLT

901090602800 901090602800

2,06 $

Unit Price

PIN, DOWEL(6G8)

995300801200 995300801200

3,46 $

Unit Price

WEIGHT 1

1D7114540000 1D7114540000

147,68 $

Unit Price

WEIGHT 3

1D71145A0000 1D71145A0000

151,40 $

Unit Price

BOLT

901100621100

913120602000

4,00 $

Unit Price

HOUSING

1D7114440000 1D7114440000

454,71 $

Unit Price

SCREW

901490609700

Not available

WASHER, WEIGHT 1

1D7114830000 1D7114830000

48,31 $

Unit Price

GASKET

1D7114790000 1D7114790000

51,13 $

Unit Price

BREAKER GEAR SET

1D7W114A0000

1D7W114A0100

330,69 $

Unit Price

KEY, STRAIGHT

902820400100 902820400100

8,51 $

Unit Price

BOLT, WASHER BASED(1TX)

901051044500 901051044500

10,36 $

Unit Price

WEIGHT 2

1D7114640000 1D7114640000

319,03 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

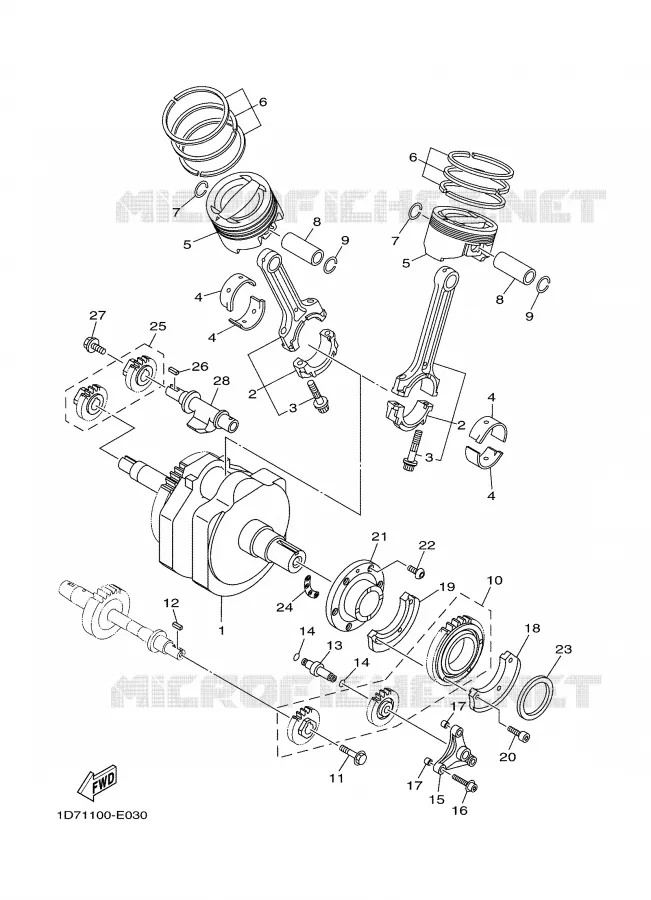

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha XV1900A of 2006. Let us know if you have any questions.

Select your Yamaha MIDNIGHT STAR model from 2006
