WATERPUMP / HOSES

RADIATOR / HOSES FOR YAMAHA VMAX 2011

OIL PUMP

Item numbers

TANK, RECOVERY

2S3218710000 2S3218710000

61,08 $

Unit Price

PLATE

2S32176E0000 2S32176E0000

40,22 $

Unit Price

DAMPER

5SL217460000 5SL217460000

1,04 $

Unit Price

DAMPER

5DM283710000 5DM283710000

0,32 $

Unit Price

BOLT, SOCKET HEAD

913140601400 913140601400

2,67 $

Unit Price

COLLAR

903870617000 903870617000

4,18 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100630200 901100630200

2,91 $

Unit Price

PIPE 1

2S3218160000 2S3218160000

33,67 $

Unit Price

CLIP

904670900600

90467090A200

1,41 $

Unit Price

CLIP

904671000800

90467100A100

1,22 $

Unit Price

CAP

2C0218750000 2C0218750000

16,99 $

Unit Price

ELBOW

26H218280000 26H218280000

14,92 $

Unit Price

CLIP (16G)

904670807500

904670802100

7,13 $

Unit Price

HOSE

904450803500 904450803500

2,09 $

Unit Price

GROMMET (3R4)

904802226300 904802226300

5,37 $

Unit Price

RADIATOR ASSY

2S3124610900 2S3124610900

611,72 $

Unit Price

BLOWER ASSY

2S3124051000 2S3124051000

265,01 $

Unit Price

BOLT, BLOWER HOLDING

2S3126750000 2S3126750000

3,00 $

Unit Price

COVER 5

2S31246H0000 2S31246H0000

102,96 $

Unit Price

BOLT, WITH WASHER(55K)

901190610900

901190611700

4,13 $

Unit Price

COVER 1

2S31246A0000 2S31246A0000

126,23 $

Unit Price

COVER 2

2S31246E0000 2S31246E0000

126,23 $

Unit Price

SCREW(3XV)

901490629800 901490629800

6,40 $

Unit Price

GROMMET (29L)

904801536300 904801536300

8,72 $

Unit Price

COLLAR

903870603900 903870603900

10,90 $

Unit Price

WASHER, PLATE(36Y)

902010607100

90201063J200

5,43 $

Unit Price

BOLT

901090603100 901090603100

4,25 $

Unit Price

STAY 1

2S32116A0000 2S32116A0000

41,19 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100630200 901100630200

2,91 $

Unit Price

STAY, RADIATOR

2S3124640000 2S3124640000

35,38 $

Unit Price

CLAMP(4TR)

904641824600 904641824600

2,22 $

Unit Price

BOLT, BUTTON HEAD(3JP)

901110600300

920140601200

3,69 $

Unit Price

CLAMP

904641606100 904641606100

0,42 $

Unit Price

RADIATOR ASSY

2S3124611900 2S3124611900

611,72 $

Unit Price

BLOWER ASSY

2S3124050000

Not available

NUT 1

5SL126710000 5SL126710000

9,48 $

Unit Price

BOLT, BLOWER HOLDING

5GJ126750000 5GJ126750000

5,22 $

Unit Price

COCK, DRAIN

5VU124780000 5VU124780000

8,40 $

Unit Price

COVER 6

2S31246J0000 2S31246J0000

31,54 $

Unit Price

BOLT, WITH WASHER(55K)

901190610900

901190611700

4,13 $

Unit Price

COVER 3

2S31246F0000 2S31246F0000

127,35 $

Unit Price

COVER 4

2S31246G0000 2S31246G0000

127,35 $

Unit Price

SCREW(3XV)

901490629800 901490629800

6,40 $

Unit Price

GROMMET (29L)

904801536300 904801536300

8,72 $

Unit Price

COLLAR

903870608600 903870608600

5,86 $

Unit Price

BOLT, WITH WASHER

901190624700 901190624700

6,76 $

Unit Price

NUT 1

5SL126710000 5SL126710000

9,48 $

Unit Price

STAY, SIDE COVER 1

2S32172E0000 2S32172E0000

88,79 $

Unit Price

STAY, SIDE COVER 2

2S32174E0000 2S32174E0000

59,98 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100624500 901100624500

3,02 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100633100 901100633100

3,33 $

Unit Price

GROMMET (29L)

904801536300 904801536300

8,72 $

Unit Price

COLLAR

903870603900 903870603900

10,90 $

Unit Price

WASHER, PLATE(36Y)

902010607100

90201063J200

5,43 $

Unit Price

BOLT

901090603100 901090603100

4,25 $

Unit Price

GUIDE

2S32171H0000 2S32171H0000

25,75 $

Unit Price

HOSE 8

2S3125520000 2S3125520000

18,37 $

Unit Price

HOSE CLAMP ASSY(3GM)

904503804000 904503804000

18,85 $

Unit Price

PIPE 6

2S3124760000 2S3124760000

93,84 $

Unit Price

HOSE 1

2S3125760000 2S3125760000

65,73 $

Unit Price

HOSE CLAMP ASSY(3GM)

904503804000 904503804000

18,85 $

Unit Price

COVER 2

5GV1246E0000 5GV1246E0000

5,78 $

Unit Price

HOSE 2

2S3125770000 2S3125770000

21,42 $

Unit Price

HOSE CLAMP ASSY(3GM)

904503804000 904503804000

18,85 $

Unit Price

HOSE 3

2S3125780000 2S3125780000

7,04 $

Unit Price

HOSE CLAMP ASSY(3GM)

904503804000 904503804000

18,85 $

Unit Price

CLAMP

904641606100 904641606100

0,42 $

Unit Price

CLAMP

904641201300 904641201300

1,60 $

Unit Price

CLAMP

904642800300 904642800300

3,28 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

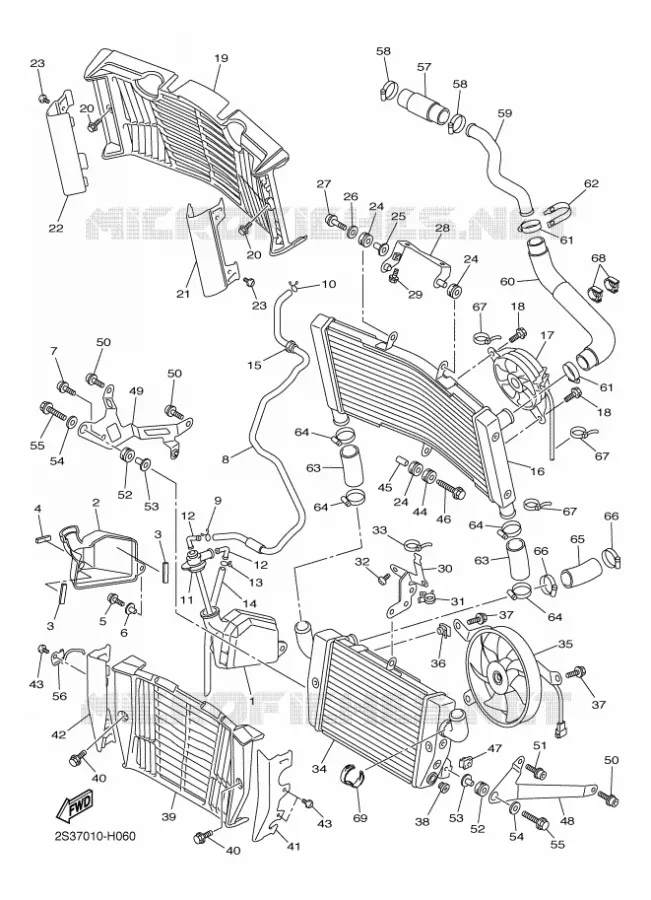

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR / HOSES of your Yamaha VMAX 1700 of 2011. Let us know if you have any questions.
