ELECTRICAL 1

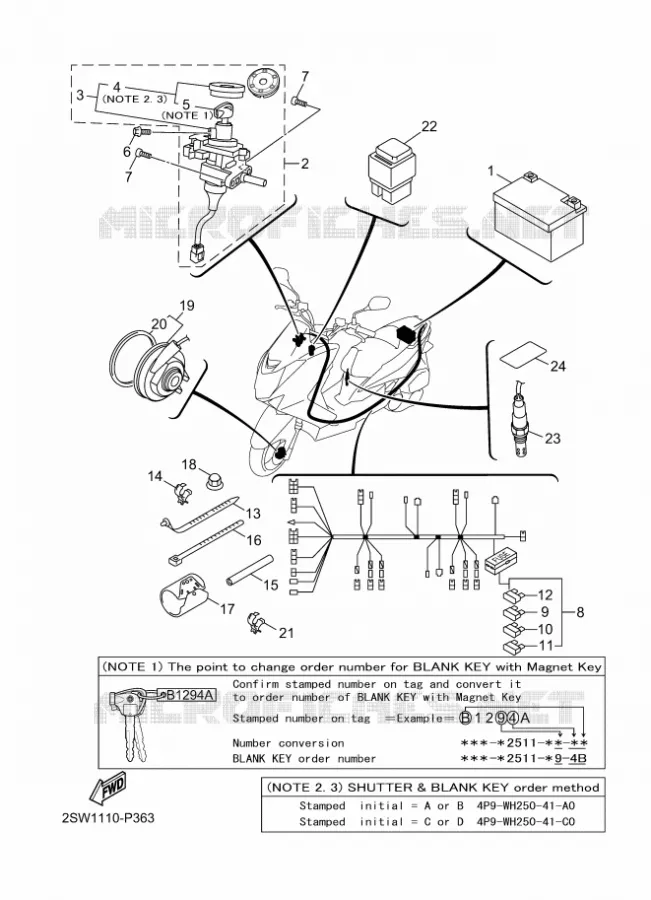

ELECTRICAL 2 FOR YAMAHA SMAX 2020

Item numbers

YT7BBS YUASA BATTERY - SA

52SH21000100

YT7BBS000000

175,47 $

Unit Price

KEY SET

2LDWH2030000

2LDWH2030200

277,03 $

Unit Price

MAIN SWITCH STEERI

2LDH25010000

2LDH25010100

258,68 $

Unit Price

SHUTTER & BLANK KEY

4P9WH25041A0

4P9WH25U42A0

127,88 $

Unit Price

SHUTTER & BLANK KE

4P9WH25041C0

Not available

. . . CLE, DE CONTACTEUR

4P9H25114000 4P9H25114000

Not available

BOLT, WITH WASHER

901190500400 901190500400

0,44 $

Unit Price

SCREW, FLAT FILLISTER

901550680300

Not available

WIRE HARNESS ASSY

2SWH25900100 2SWH25900100

890,20 $

Unit Price

FUSE (12V 15A)

5MLH21511000

36Y821510000

6,55 $

Unit Price

FUSE

5MHH21510000 5MHH21510000

1,75 $

Unit Price

FUSE

5MLH21512000

2KW821510000

3,63 $

Unit Price

FUSE

1P5H21510000 1P5H21510000

1,75 $

Unit Price

CLAMP

904643080200 904643080200

2,46 $

Unit Price

CLAMP

904643080100 904643080100

5,08 $

Unit Price

PROTECTOR

1CFF117G0000 1CFF117G0000

1,64 $

Unit Price

CLAMP

904646080000 904646080000

2,39 $

Unit Price

COVER

52SH252U0000 52SH252U0000

14,23 $

Unit Price

NUT, CROWN(1FN)

901760605500 901760605500

3,94 $

Unit Price

SENSOR, SPEED

2LDH37551100 2LDH37551100

238,24 $

Unit Price

OIL SEAL

931024480000 931024480000

14,16 $

Unit Price

CLAMP

904642300300 904642300300

0,73 $

Unit Price

FLASHER RELAY ASSY

3GM833500100

3GM833500300

185,85 $

Unit Price

SENSOR, OXYGEN

2SWH592A0000 2SWH592A0000

401,76 $

Unit Price

SEAL

28BE44520000 28BE44520000

6,68 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha SMAX of 2020. Let us know if you have any questions.
