LEG SHIELD FOR YAMAHA NMAX 2020

WINDSCREEN

Item numbers

CACHE AVANT 2

2DPF286F00P1 2DPF286F00P1

Not available

CORPS, DE CARENAGE

2DPF835100P1 2DPF835100P1

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

NUT, SPRING(1FK)

901830681500

901830600800

1,68 $

Unit Price

CORPS, DE CARENAGE 2

2DPF837700P1 2DPF837700P1

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

NUT, SPRING(1FK)

901830681500

901830600800

1,68 $

Unit Price

PANNEAU 1

2DPF835U00P3 2DPF835U00P3

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

PANNEAU 2

2DPF835V00P3 2DPF835V00P3

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

PROTEGE-JAMBES COMPLET

2DPF83000000 2DPF83000000

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

GROMMET (3P91)

904801280800 904801280800

0,74 $

Unit Price

COLLAR

903870689900 903870689900

4,88 $

Unit Price

BOULON

901110685400 901110685400

Not available

NUT, SPRING(1YT)

901830580700

901830504200

1,46 $

Unit Price

SCREW, ROUND TAPPING (50C1)

901600580800 901600580800

0,47 $

Unit Price

COUVERCLE 1

2DPF842M0000 2DPF842M0000

Not available

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

EMBLEME

2DPF413B0000 2DPF413B0000

Not available

ETIQUETTE, AVERTISSEMENT

26P215681000 26P215681000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

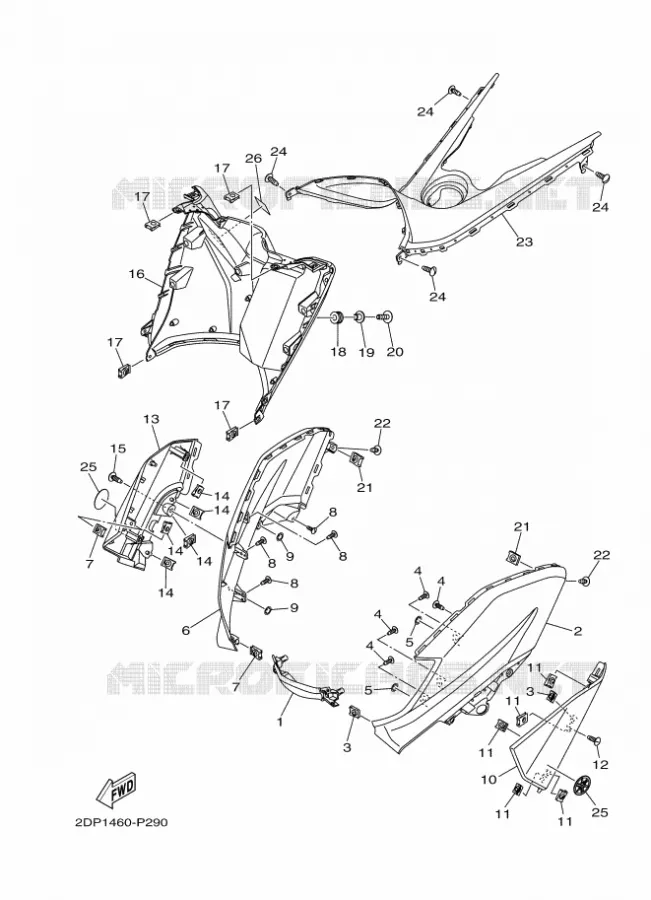

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEG SHIELD of your Yamaha NMAX 155 of 2020. Let us know if you have any questions.
