SWITCH / LEVER

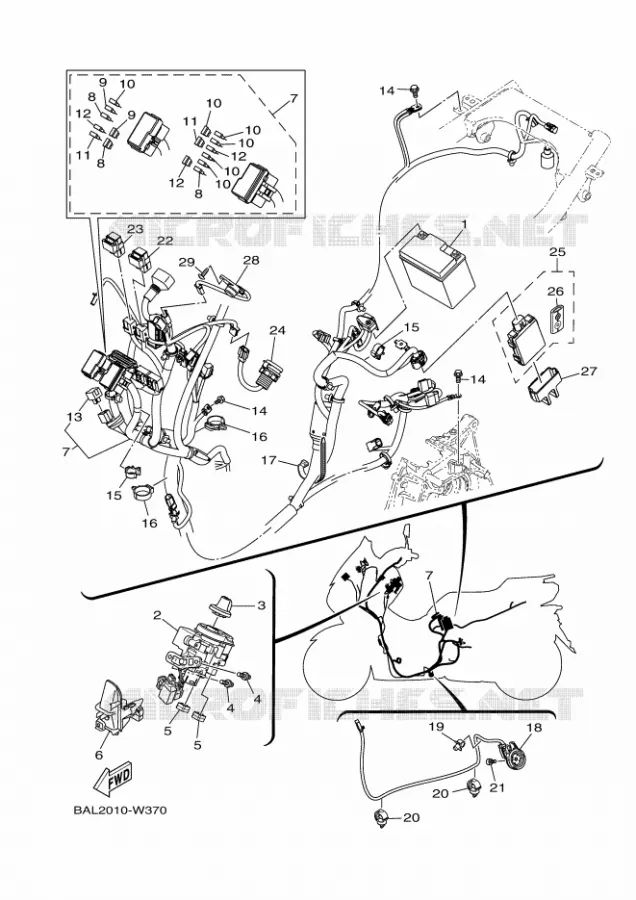

ELECTRICAL 1 FOR YAMAHA NMAX 2023

ELECTRICAL 2

Item numbers

BATTERIE COMPLET (YUASA YTZ7V)

2DPH21000100 2DPH21000100

Not available

CONTACTEUR A CLEF D'ANTIVOL

B6HH25010200 B6HH25010200

Not available

BOUTON COMPLET

B6HH276E1000 B6HH276E1000

Not available

BOLT

90109068D500

90109068D600

3,13 $

Unit Price

CLAMP

904640980600 904640980600

4,49 $

Unit Price

COUVERCLE

B6HH25680100 B6HH25680100

Not available

FAISCEAU DE FILS COMPLET

BALH25904000 BALH25904000

Not available

FUSE (2A)

1WDH21518000 1WDH21518000

3,17 $

Unit Price

FUSE

1WDH21519000 1WDH21519000

3,17 $

Unit Price

FUSE (7.5A BL)

1WDH21512000 1WDH21512000

3,15 $

Unit Price

FUSE (15A-BL)

1WDH21511000 1WDH21511000

3,15 $

Unit Price

FUSE

1WDH21513000 1WDH21513000

3,17 $

Unit Price

DIODE ASSY

3WP819800000 3WP819800000

21,48 $

Unit Price

BOLT, FLANGE DEEP RECESS

95E320601200 95E320601200

0,41 $

Unit Price

BRIDE

904641680800 904641680800

Not available

CLAMP

904643000100 904643000100

2,72 $

Unit Price

BRIDE

904646580100 904646580100

Not available

COMMUTATEUR

B8AH25660000 B8AH25660000

Not available

CLAMP

904640780500 904640780500

2,61 $

Unit Price

CLAMP

904641324900 904641324900

2,44 $

Unit Price

BOLT, HEXAGON SOCK

901100688100 901100688100

1,77 $

Unit Price

LANCEUR RELAIS (ENS.)

2PHH19401200 2PHH19401200

Not available

RELAY ASSY

BK6H19500000 BK6H19500000

46,27 $

Unit Price

RELAY ASSY

B3FH19501000 B3FH19501000

58,69 $

Unit Price

RELAIS COMPLET

B63H19501100 B63H19501100

Not available

TERMINAL COMP.

B6HH254B0000 B6HH254B0000

68,72 $

Unit Price

UNITE DE TELECOMMANDE (ENS.)

B2TH62604600 B2TH62604600

Not available

. XMTR. COMP.

B2TH62614500 B2TH62614500

Not available

BAND

B65H55460000 B65H55460000

5,97 $

Unit Price

BUZZER

B3FH33830000 B3FH33830000

67,92 $

Unit Price

SCREW, TAPPING

977025001600 977025001600

2,49 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
