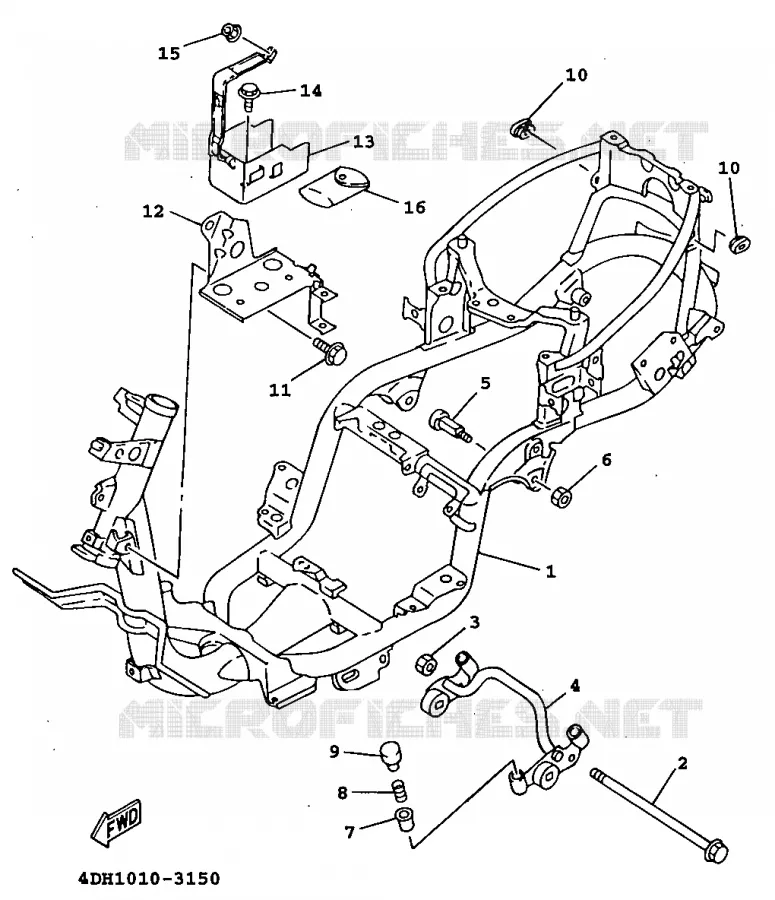

FRAME FOR YAMAHA XC 1997

FRONT FENDER

CADRE COMP.

3UHF11102033 3UHF11102033

Not available

AXE, PIVOT

3UHF21410000 3UHF21410000

Not available

GOUJON

9560L1220000 9560L1220000

Not available

SUPPORT-MOTEUR COMPLET

3UHF14100000 3UHF14100000

Not available

ENGINE MOUNTING BOLT

3UHF14810000 3UHF14810000

6,30 $

Unit Price

GOUJON

9561L1010000 9561L1010000

Not available

DAMPER

4Y4F139X0100 4Y4F139X0100

0,77 $

Unit Price

RESSORT, COMPRESSION

90501235A200 90501235A200

Not available

BUTEE

3UHF18720000 3UHF18720000

Not available

GROMMET(41Y)

904800114100

904800140100

4,92 $

Unit Price

BOLT, FLANGE

958270801200

958170801200

3,75 $

Unit Price

SUPPORT, BATTERIE

4DHF13440000 4DHF13440000

Not available

BOITIER COMPLET

4DHF160A0000 4DHF160A0000

Not available

BOLT WITH WASHER

901190680700 901190680700

Not available

NUT, FLANGE(4MV)

957070650000 957070650000

2,10 $

Unit Price

TROUSSE A OUTILS

3UHF81000000 3UHF81000000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Yamaha XC150I of 1997. Let us know if you have any questions.
