COVER - ENGINE 1

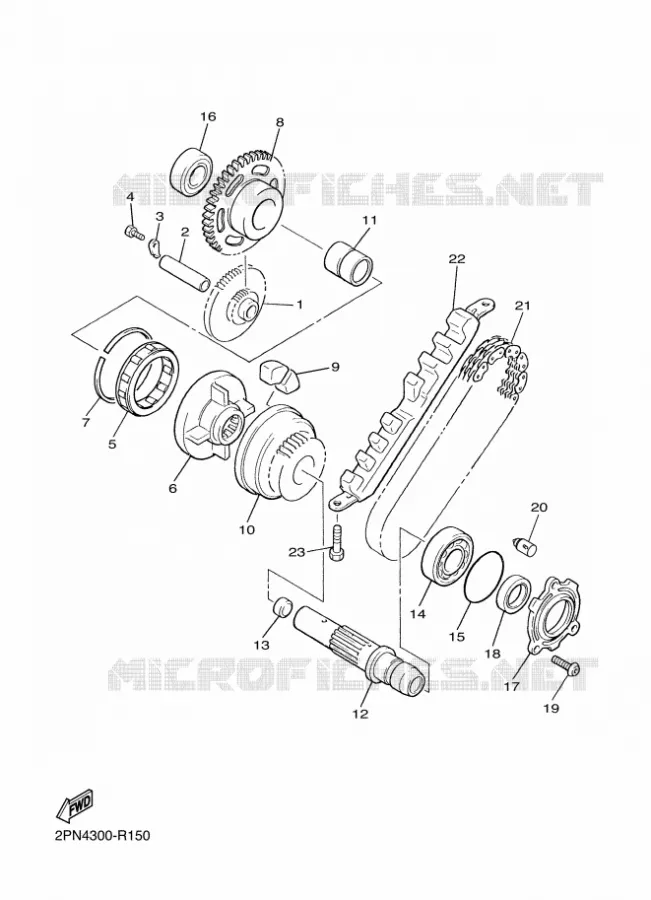

STARTER MOTOR FOR YAMAHA XJR 2016

STARTER CLUTCH

Item numbers

GEAR, IDLER 1

36Y155120100 36Y155120100

84,62 $

Unit Price

SHAFT 1

36Y155210100 36Y155210100

18,62 $

Unit Price

PLATE, STOPPER

2H7155310000 2H7155310000

3,15 $

Unit Price

BOLT, HEXAGON

970220601200

970170601200

2,48 $

Unit Price

EMBRAYAGE DE DEMARREUR CPLT

4KM155800000 4KM155800000

PIGNON DE DEMARREUR

5UX155240000 5UX155240000

Not available

CIRCLIP(MF1)

990096250000 990096250000

8,85 $

Unit Price

PIGNON, INTERMEDIAIRE (45D)

4KG155170000 4KG155170000

Not available

ABSORBER 1

4H7161550100 4H7161550100

5,56 $

Unit Price

COURONNE DE DEMARREUR

5UX155190000 5UX155190000

Not available

COLLAR(36Y)

90387201L200 90387201L200

26,09 $

Unit Price

SHAFT 2

3CV155220000 3CV155220000

116,84 $

Unit Price

PLUG (26H)

903311503900 903311503900

7,72 $

Unit Price

BEARING (4G0)

933062054500 933062054500

77,40 $

Unit Price

O-RING (4G0)

932104744000 932104744000

4,72 $

Unit Price

BEARING (5Y1)

933060040100

933060042600

40,17 $

Unit Price

HOUSING, BEARING 1

36Y151630000 36Y151630000

36,73 $

Unit Price

OIL SEAL (4G0)

931022525300 931022525300

18,25 $

Unit Price

SCREW

901490608100 901490608100

1,01 $

Unit Price

GICLEUR

5UX134540000 5UX134540000

Not available

CHAIN, PRIMARY

12R114560100 12R114560100

199,05 $

Unit Price

GUIDE, SUPERIEUR

5UX114740000 5UX114740000

Not available

BOLT, HEXAGON DEEP RECESS

970220601600

97D950601600

1,96 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
