REAR BRAKE MASTER CYLINDER

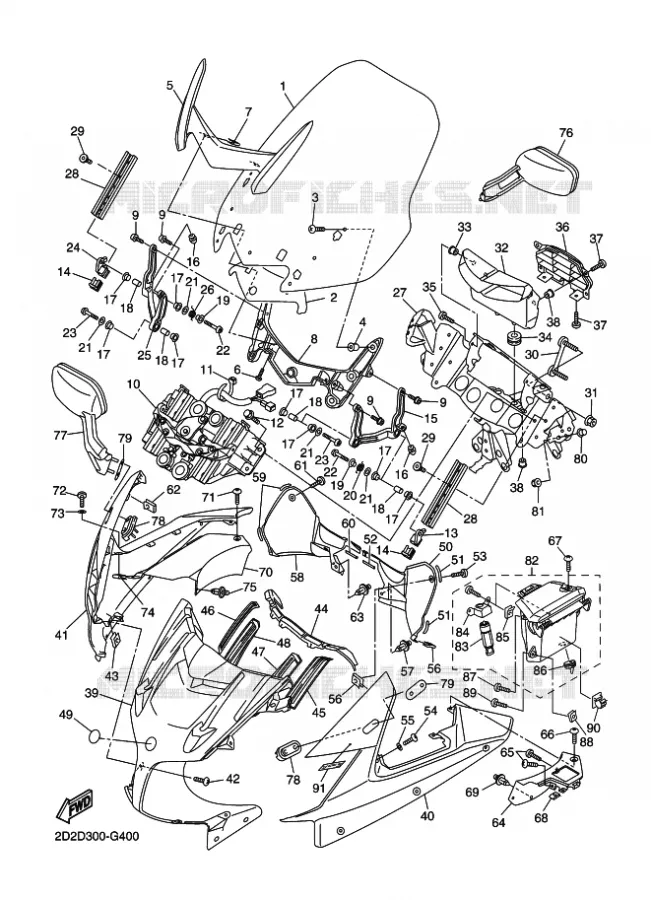

COVER 1 FOR YAMAHA FJR AS ABS 2011

COVER 2

Item numbers

WINDSHIELD

3P6283812000 3P6283812000

590,70 $

Unit Price

SEAT 1

3P62838G0000 3P62838G0000

9,05 $

Unit Price

SCREW, ROUND HEAD(1UX)

901500502400 901500502400

4,57 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

WASHER, LEG SHIELD

3P62832300P8

3P62832301P8

189,12 $

Unit Price

BOLT, BUTTON HEAD

920120501200 920120501200

1,47 $

Unit Price

NUT, SPRING

90183050A700 90183050A700

6,38 $

Unit Price

STAY 2

3P6283221000 3P6283221000

257,90 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100621500 901100621500

1,86 $

Unit Price

DRIVE UNIT ASSY

3P6833060000 3P6833060000

1 343,20 $

Unit Price

CLAMP

5Y9124910000 5Y9124910000

2,07 $

Unit Price

BOLT, FLANGE

958220601200

958170601200

1,39 $

Unit Price

HINGE 1

3P6284440000 3P6284440000

59,70 $

Unit Price

PLATE 1

3P6283961000 3P6283961000

14,61 $

Unit Price

LINK 1

3P62833C1000 3P62833C1000

117,18 $

Unit Price

PLUG

4G0216390000

903380701800

11,09 $

Unit Price

SPACER

5JW283290000 5JW283290000

3,81 $

Unit Price

COLLAR

903870613100 903870613100

8,80 $

Unit Price

COLLAR

903870615000 903870615000

7,16 $

Unit Price

SPRING, TORSION

905081813400 905081813400

9,01 $

Unit Price

WASHER, PLATE

902010608800 902010608800

1,04 $

Unit Price

BOLT, BUTTON HEAD

920120603500 920120603500

2,28 $

Unit Price

BOLT, BUTTON HEAD

920120602500 920120602500

1,86 $

Unit Price

HINGE 2

3P62845E0000 3P62845E0000

59,70 $

Unit Price

LINK 2

3P62833D1000 3P62833D1000

117,18 $

Unit Price

SPRING, TORSION

905081813500 905081813500

9,42 $

Unit Price

STAY 1

3P6283561000 3P6283561000

729,84 $

Unit Price

STAY, GUIDE 1

3P62831E1000 3P62831E1000

37,53 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100628400 901100628400

3,78 $

Unit Price

PLATE

5JW283360000 5JW283360000

22,90 $

Unit Price

NUT, FLANGE(8AB)

957071050000 957071050000

2,65 $

Unit Price

DUCT 1

3P62838N0000 3P62838N0000

120,78 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

GROMMET

904801200300 904801200300

6,13 $

Unit Price

SCREW, BIND

989020501400 989020501400

0,44 $

Unit Price

GRILL, AIR OUTLET 1

3P62837V0000 3P62837V0000

76,99 $

Unit Price

SCREW, BINDING (8J0)

901540500500 901540500500

5,00 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

BODY, COWLING

3P62835100P8 3P62835100P8

465,55 $

Unit Price

BODY, FRONT UPPER 1

3P6W283G00P8

3P6W283G01P8

408,23 $

Unit Price

UPPER COWLING ASSY 2

3P6W283H00P8

Not available

SCREW, BINDING (10V)

901540501300 901540501300

3,58 $

Unit Price

NUT, SPRING

90183050A600 90183050A600

4,94 $

Unit Price

SEAL 1

3P6284281000 3P6284281000

205,15 $

Unit Price

SEAL 2

3P6284290000 3P6284290000

35,79 $

Unit Price

SEAL 3

3P62844E0000 3P62844E0000

35,79 $

Unit Price

SEAL 4

3P62846F0000 3P62846F0000

Not available

SEAL 5

3P62847F0000 3P62847F0000

35,79 $

Unit Price

TUNING FORK MARK

5LV2836B0100

5LV2836B0200

38,23 $

Unit Price

PANEL, CONSOLE 1

3P62837L0000 3P62837L0000

64,75 $

Unit Price

SEAL 1

3P6282180000 3P6282180000

4,25 $

Unit Price

SEAL 2

3P6282280000 3P6282280000

4,25 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110502100 901110502100

Not available

BOLT

901110500700 901110500700

4,94 $

Unit Price

WASHER, PLATE(1KT)

902020518000 902020518000

4,46 $

Unit Price

NUT, SPRING

90183050A600 90183050A600

4,94 $

Unit Price

RIVET

902690600100 902690600100

4,50 $

Unit Price

PANEL, CONSOLE 2

3P62837M0000 3P62837M0000

64,75 $

Unit Price

SEAL 1

3P6282180000 3P6282180000

4,25 $

Unit Price

SEAL 2

3P6282280000 3P6282280000

4,25 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110502100 901110502100

Not available

NUT, SPRING

90183050A600 90183050A600

4,94 $

Unit Price

RIVET

902690600100 902690600100

4,50 $

Unit Price

PANEL, INNER 3

3P62836M0000 3P62836M0000

39,07 $

Unit Price

SCREW, BINDING

901540500700 901540500700

5,15 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110502100 901110502100

Not available

SCREW, BINDING

901540500700 901540500700

5,15 $

Unit Price

NUT, SPRING

90183050A600 90183050A600

4,94 $

Unit Price

RIVET

902690600100 902690600100

4,50 $

Unit Price

PANEL, INNER 4

3P62836N0000 3P62836N0000

41,71 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110502100 901110502100

Not available

BOLT

901110500700 901110500700

4,94 $

Unit Price

WASHER, PLATE(1KT)

902020518000 902020518000

4,46 $

Unit Price

NUT, SPRING

90183050A600 90183050A600

4,94 $

Unit Price

RIVET

902690600100 902690600100

4,50 $

Unit Price

REAR VIEW MIRROR ASSY (LEFT)

3P62628000P8 3P62628000P8

279,98 $

Unit Price

REAR VIEW MIRROR ASSY (RIGHT)

3P62629000P8 3P62629000P8

293,11 $

Unit Price

PLATE, MIRROR FITTING 1

5JW262980000 5JW262980000

16,42 $

Unit Price

PLATE, MIRROR FITTING 2

3P6262990000 3P6262990000

6,80 $

Unit Price

COLLAR(4JW)

903870602X00 903870602X00

11,45 $

Unit Price

NUT, FLANGE(7NB)

957020650000

957800650000

3,18 $

Unit Price

BOX SUB ASSY

3P62830N00P8 3P62830N00P8

612,35 $

Unit Price

LOCK ASSY

5VS284700000 5VS284700000

425,28 $

Unit Price

BRACKET

5VS283670000 5VS283670000

12,77 $

Unit Price

NUT, SPRING

90183051A000 90183051A000

3,59 $

Unit Price

GROMMET

3P6281870000 3P6281870000

10,24 $

Unit Price

SCREW, TAPPING

901670508000 901670508000

2,52 $

Unit Price

NUT, SPRING

90183050A600 90183050A600

4,94 $

Unit Price

SCREW(3YF)

901490529900 901490529900

5,42 $

Unit Price

CLAMP(4FM)

904641318500 904641318500

6,67 $

Unit Price

EMBLEME

2D2283159000 2D2283159000

Not available
