CAMSHAFT / TIMING CHAIN

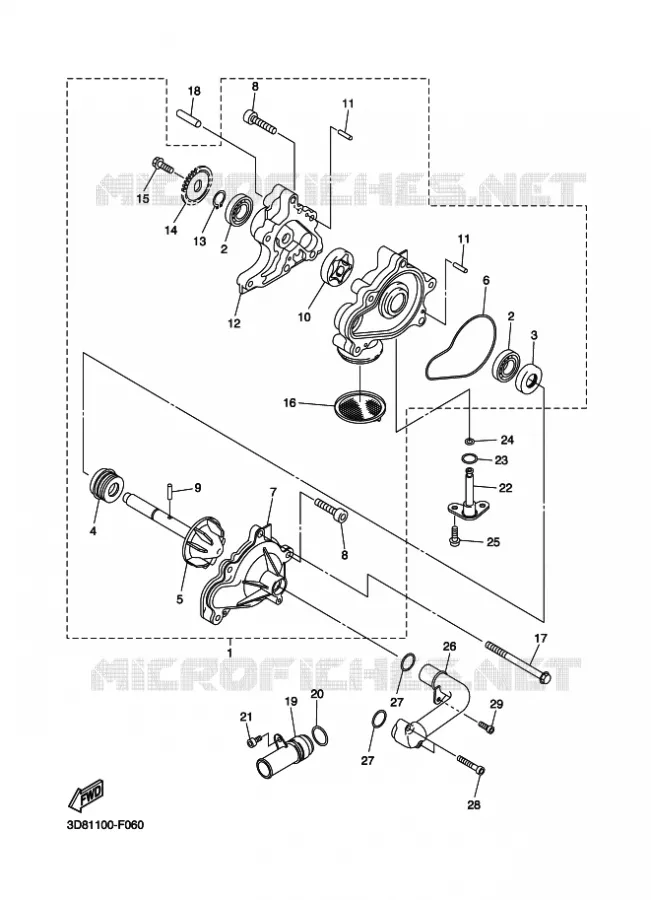

WATERPUMP / HOSES FOR YAMAHA MIDNIGHT STAR 2009

RADIATOR / HOSES

Item numbers

WATER PUMP ASSY

3D8124200200

3D8124200300

647,52 $

Unit Price

BRG, R-B 6001 28MM 28G KY

933060010600

933060010500

24,34 $

Unit Price

OIL SEAL

931021237200 931021237200

13,79 $

Unit Price

SEAL, MECHANICAL

11H124381000 11H124381000

32,07 $

Unit Price

IMPELLER SHAFT ASSY

3D8124500100 3D8124500100

80,95 $

Unit Price

O-RING

3D8124390000 3D8124390000

16,73 $

Unit Price

COVER, HOUSING

3D8124220000 3D8124220000

130,25 $

Unit Price

BOLT, SOCKET

913120602500

913170602500

4,03 $

Unit Price

PIN, DOWEL

936031707000 936031707000

4,41 $

Unit Price

ROTOR ASSY 1

3D8133100000 3D8133100000

53,94 $

Unit Price

PIN, DOWEL (603)

936031200700 936031200700

3,88 $

Unit Price

HOUSING, ROTOR

3D8133360000 3D8133360000

94,80 $

Unit Price

CIRCLIP(10Y)

990091240000 990091240000

3,59 $

Unit Price

SPROCKET, DRIVEN

3D8133550000 3D8133550000

35,47 $

Unit Price

BOLT, FLANGE

901050606600 901050606600

4,08 $

Unit Price

STRAINER, OIL

3D8134110000 3D8134110000

22,60 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100804900 901100804900

10,24 $

Unit Price

PIN, DOWEL(6G8)

995300801200 995300801200

3,46 $

Unit Price

PIPE 9

3D81248E0000

3D81248E0100

89,83 $

Unit Price

O-RING(1KT)

932102737000

932102777800

6,67 $

Unit Price

BOLT, SOCKET

901100618200

913170601200

5,10 $

Unit Price

CORPS

3D8125620000 3D8125620000

Not available

O-RING (32N)

932101563900 932101563900

3,50 $

Unit Price

O-RING(26H)

932100666700 932100666700

6,46 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100624500 901100624500

3,15 $

Unit Price

PIPE, WATER

3D8125640000 3D8125640000

187,79 $

Unit Price

O-RING

93210235A100 93210235A100

7,75 $

Unit Price

BOLT(J17)

901100620800

913120603500

4,04 $

Unit Price

BOLT, SOCKET

901100616100

913170601600

3,51 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
