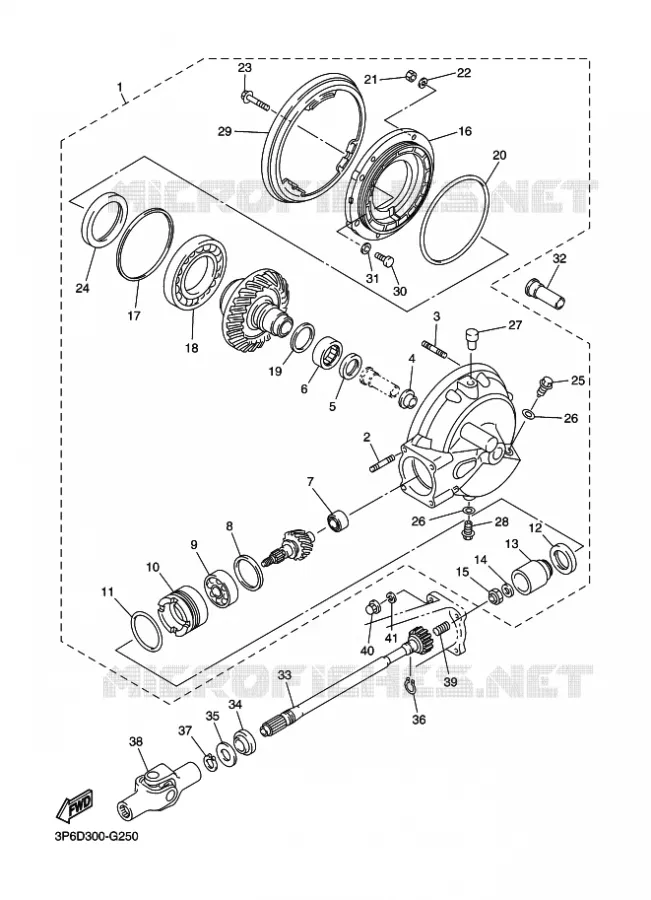

FINAL DRIVE SHAFT / GEAR COUPLING FOR YAMAHA FJR AS ABS 2009

REAR SHOCK ABSORBER

Item numbers

REAR AXLE GEAR CASE ASSY

3P6W46123000

B88W46120000

2 186,96 $

Unit Price

BOLT, STUD

901161001000

901161006100

10,63 $

Unit Price

STUD BOLT

901160802500

Not available

COLLAR, GUIDE

5JW461530000 5JW461530000

34,09 $

Unit Price

OIL SEAL (30X42X7-1J7)

931013008400 931013008400

20,57 $

Unit Price

BRG, CYL-CAL ROLLER 80G KY

933114372900 933114372900

93,79 $

Unit Price

BEARING ASSY

2H7461020000 2H7461020000

64,46 $

Unit Price

SHIM, THRUST (0.30T)

1J717537Y030 1J717537Y030

9,12 $

Unit Price

SHIM, THRUST (0.40T)

1J717537Y040 1J717537Y040

9,12 $

Unit Price

SHIM, THRUST (0.50T)

1J717537Y050 1J717537Y050

9,12 $

Unit Price

BRG, R-B 6305RB1 62MM 245G KY

933063053300 933063053300

124,43 $

Unit Price

RETAINER, BEARING

4H7461250000 4H7461250000

35,92 $

Unit Price

O-RING (4H7)

932106042600 932106042600

10,83 $

Unit Price

OIL SEAL

931013800100 931013800100

13,86 $

Unit Price

COUPLING, GEAR

3P6461230100 3P6461230100

228,55 $

Unit Price

WASHER, PLATE(3JP)

90201166R500 90201166R500

15,77 $

Unit Price

NUT

901791601000

901791600600

20,44 $

Unit Price

HOUSING, BEARING

3P6461520000 3P6461520000

227,54 $

Unit Price

SHIM, RING GEAR (0.25T)

1J746117Y025 1J746117Y025

5,39 $

Unit Price

SHIM, RING GEAR (0.30T)

1J746117Y030 1J746117Y030

5,47 $

Unit Price

SHIM, RING GEAR (0.40T)

1J746117Y040 1J746117Y040

5,47 $

Unit Price

SHIM, RING GEAR (0.50T)

1J746117Y050 1J746117Y050

5,47 $

Unit Price

BRG, R-B 16014C2 110MM 433G KY

933160140300 933160140300

108,43 $

Unit Price

WASHER, THRUST

22U461180012 22U461180012

9,64 $

Unit Price

WASHER, THRUST

22U461180014 22U461180014

9,64 $

Unit Price

WASHER, THRUST

22U461180016 22U461180016

9,64 $

Unit Price

WASHER, THRUST

22U461180018 22U461180018

9,64 $

Unit Price

WASHER, THRUST

22U461180020 22U461180020

9,64 $

Unit Price

O-RING(59V)

932115469800 932115469800

23,46 $

Unit Price

NUT(6L2)

953120860000

953110860000

3,60 $

Unit Price

WASHER, SPRING

902040800100 902040800100

0,22 $

Unit Price

BOLT, FLANGE(8AB)

958121005000

958111005000

6,85 $

Unit Price

OIL SEAL (4H7)

931027016700 931027016700

29,91 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

903401413200 903401413200

8,03 $

Unit Price

GASKET

214111980100 214111980100

3,82 $

Unit Price

BREATHER COMP.

2H7175900000 2H7175900000

25,18 $

Unit Price

PLUG, STRAIGHT SCREW

903401400400 903401400400

21,24 $

Unit Price

COVER, HOUSING

1FK461540000 1FK461540000

31,95 $

Unit Price

STOPPER, RING GEAR

1FK461560000 1FK461560000

18,69 $

Unit Price

SHIM, STOPPER

1FK461570015 1FK461570015

0,57 $

Unit Price

SHIM, STOPPER

1FK461570020 1FK461570020

0,57 $

Unit Price

COLLAR, GUIDE 1

5VS4615A0000 5VS4615A0000

69,44 $

Unit Price

SHAFT, DRIVE

3P6461721000 3P6461721000

386,64 $

Unit Price

OIL SEAL

931084300100 931084300100

27,16 $

Unit Price

WASHER, PLATE

902012300800 902012300800

2,88 $

Unit Price

CIRCLIP (4H7)

934102305600 934102305600

3,78 $

Unit Price

CIRCLIP (537)

934102203900 934102203900

6,91 $

Unit Price

CROSS JOINT COMP.

5JW461800000 5JW461800000

729,13 $

Unit Price

SPRING, COMPRESSION (2H7)

905011649100 905011649100

3,87 $

Unit Price

NUT, CROWN(2GG)

901761007500 901761007500

9,63 $

Unit Price

WASHER, PLATE

929901060000 929901060000

3,78 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
