SPEEDOMETER

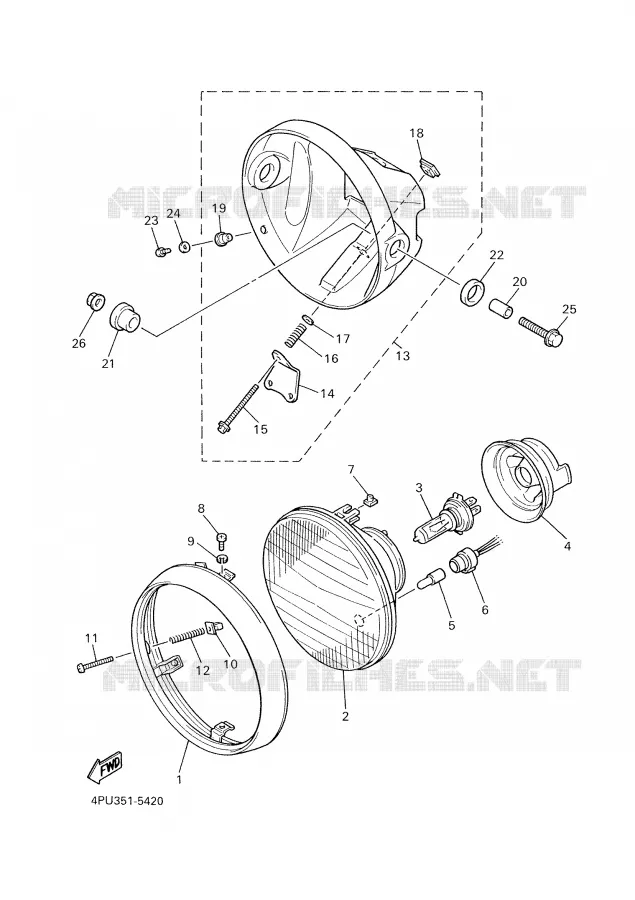

HEADLIGHT FOR YAMAHA XJR 2002

TAIL LIGHT

PORTIERE DE PHARE

4KG843150000 4KG843150000

Not available

OPTIQUE COMPLET

4PU843200000 4PU843200000

Not available

NON UTILISI

2F9843140000

Not available

COUVERCLE, DOUILLE

4KG843970000 4KG843970000

Not available

AMPOULE

4E2843470000 4E2843470000

Not available

DOUILLE, LAMPE-TEMOIN

4PU843460000 4PU843460000

Not available

NUT, ADJUSTING

4KG843340000 4KG843340000

14,45 $

Unit Price

SCREW

4KG843650000 4KG843650000

2,18 $

Unit Price

WASHER(6A1)

929020610000

929950610000

1,46 $

Unit Price

NUT, ADJUSTING

47J843340000 47J843340000

12,80 $

Unit Price

SCREW, RIM ADJUSTING

4KG843310000 4KG843310000

4,95 $

Unit Price

RESSORT, VIS

4KG843320000 4KG843320000

Not available

ENS CORPS

4KG843300000 4KG843300000

Not available

.SUPPORT 1, PHARE SUPPORT 1, PHARE

4KG843180000 4KG843180000

Not available

.VIS, REGLAGE VIS, REGLAGE

4KG8433E0000 4KG8433E0000

Not available

.RESSORT RESSORT

4KG843350000 4KG843350000

Not available

WASHER, PLAIN

4KG843440000 4KG843440000

4,32 $

Unit Price

.ECROU ECROU

4KG843260000 4KG843260000

Not available

COLLAR, SCREW

5G2843330000 5G2843330000

3,78 $

Unit Price

COLLERETTE

903870804N00 903870804N00

Not available

AMORTISSEUR 1, PHARE

4KG843660000 4KG843660000

Not available

AMORTISSEUR 2, PHARE

4KG843670000 4KG843670000

Not available

SCREW, PAN HEAD(JJ6)

985070501600 985070501600

2,23 $

Unit Price

WASHER(1RW)

929070560000 929070560000

2,13 $

Unit Price

BOLT, FLANGE(4KG)

950240804000 950240804000

5,68 $

Unit Price

NUT, FLANGE(JN5)

957070850000 957070850000

1,74 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Yamaha XJR1300 of 2002. Let us know if you have any questions.
