COVER 2

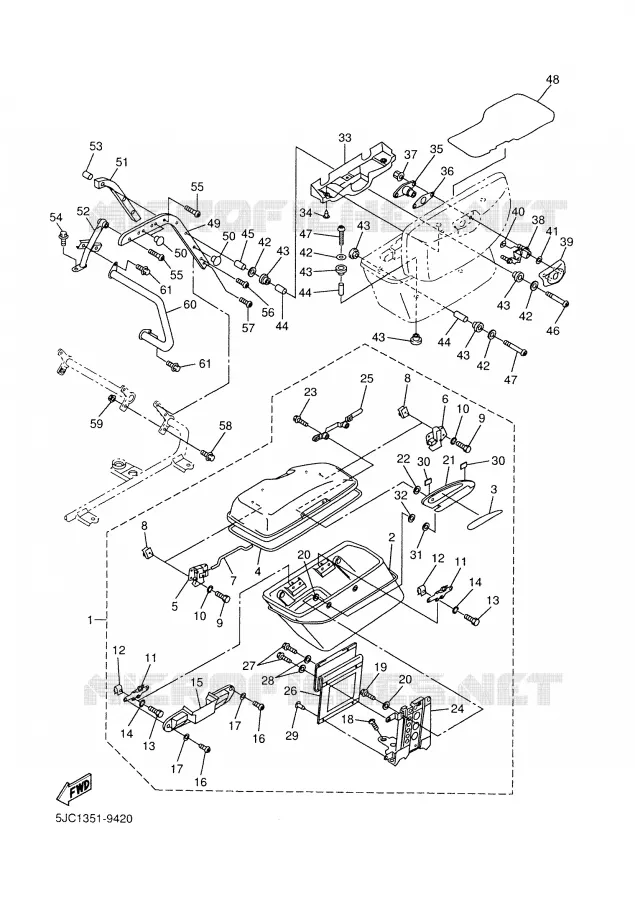

SADDLEBAG 1 FOR YAMAHA ROYALSTAR 1999

SADDLEBAG 2

SACOCHE, LATERALE 1

4XYY2843600X 4XYY2843600X

Not available

SACOCHE, LATERALE 1

4XYY2843701X 4XYY2843701X

Not available

.JEU D EMBLEMES JEU D EMBLEMES

4XY2840G0000 4XY2840G0000

Not available

.JEU D EMBLEMES JEU D EMBLEMES

4XY2840G1000 4XY2840G1000

Not available

.VOLET VOLET

4XY2847A0000 4XY2847A0000

Not available

SEAL 1

4XY284280000 4XY284280000

35,92 $

Unit Price

HOOK 3

4XY284940000 4XY284940000

86,21 $

Unit Price

HOOK 4

4XY284950000 4XY284950000

75,44 $

Unit Price

LEVER

4XY2841A0000 4XY2841A0000

67,05 $

Unit Price

NUT, SPRING

901830502400

90183051A000

3,59 $

Unit Price

BOLT(4GV)

970070501200

970170501200

3,46 $

Unit Price

WASHER(1RW)

929070560000 929070560000

2,13 $

Unit Price

HOOK 2

4XY284980000 4XY284980000

40,73 $

Unit Price

NUT, SPRING

901830502400

90183051A000

3,59 $

Unit Price

BOLT(4TW)

970070501600

970170501600

2,83 $

Unit Price

WASHER(1RW)

929070560000 929070560000

2,13 $

Unit Price

COVER 3

4XY2843J0000 4XY2843J0000

39,92 $

Unit Price

BOLT, BUTTON HEAD

920170500800 920170500800

0,68 $

Unit Price

WASHER(1RW)

929070560000 929070560000

2,13 $

Unit Price

SCREW, TAPPING(4TV)

977075002000

901670507800

2,52 $

Unit Price

BOLT, BUTTON HEAD

920170501400 920170501400

3,93 $

Unit Price

WASHER PLATE (664)

90201054K400

902010555600

5,44 $

Unit Price

HINGE 1

4XY284440000

4XY284441000

367,39 $

Unit Price

WASHER, PLATE (5E3)

902020812500

902021012000

4,00 $

Unit Price

BOLT, BUTTON HEAD

920170502000 920170502000

1,97 $

Unit Price

.RENFORT 1 RENFORT 1

4XY284270000 4XY284270000

Not available

PLATE 5

4XY2847H0000 4XY2847H0000

74,24 $

Unit Price

STOPPER, OPEN

4XY2845M0000 4XY2845M0000

395,28 $

Unit Price

BOLT, BUTTON HEAD

920170501400 920170501400

3,93 $

Unit Price

WASHER(1RW)

929070560000 929070560000

2,13 $

Unit Price

RIVET(81E)

902690503900

902690505500

1,90 $

Unit Price

PLATE, RUBBER 4

4XY284990000 4XY284990000

3,89 $

Unit Price

WASHER (853)

902010832600 902010832600

5,00 $

Unit Price

SEAL 2

4XY284290000 4XY284290000

2,17 $

Unit Price

COVER LOCK ASSY 2

4XY2849K0000 4XY2849K0000

27,17 $

Unit Price

RIVET

902690608100 902690608100

3,65 $

Unit Price

LOCK ASSY 3

4XYW28430000 4XYW28430000

210,28 $

Unit Price

PLATE, RUBBER 5

4XY2845J0000 4XY2845J0000

10,54 $

Unit Price

NUT, S-L FLANGE

956070520000 956070520000

4,71 $

Unit Price

PLATE 6

4XY2849H0000 4XY2849H0000

47,88 $

Unit Price

COVER 5

4XY2842A0000 4XY2842A0000

23,35 $

Unit Price

NUT SPRING 116283170100

901830400500 901830400500

0,89 $

Unit Price

DAMPER

4KJ283710000 4KJ283710000

1,34 $

Unit Price

WASHER (23T)

90201065G800 90201065G800

5,56 $

Unit Price

GROMMET(1NL)

904802044700 904802044700

8,37 $

Unit Price

COLLAR(82M)

90387084R500 90387084R500

9,22 $

Unit Price

COLLAR

903870811N00 903870811N00

16,04 $

Unit Price

BOLT, BUTTON HEAD

920170605500 920170605500

4,00 $

Unit Price

BOLT, BUTTON

920170603500 920170603500

4,03 $

Unit Price

SEAT 2

4XY2848K0000

4XY2848K0100

54,34 $

Unit Price

FRAME, SADDLEBAG 1

4XY284730000 4XY284730000

358,51 $

Unit Price

PLUG

903380725900 903380725900

5,75 $

Unit Price

AMORTISSEUR 1

4YE284150000 4YE284150000

Not available

STAY, FRONT GUARD 1

4YE284130100

4YE284130200

166,41 $

Unit Price

COLLAR

903870811N00 903870811N00

16,04 $

Unit Price

BOLT, FLANGE

958070801400

958170801400

4,16 $

Unit Price

BOLT, BUTTON HEAD(4TR)

920140804000 920140804000

7,09 $

Unit Price

BOLT, BUTTON

920140801600 920140801600

5,25 $

Unit Price

BOLT, BUTTON

920140802000 920140802000

6,13 $

Unit Price

BOLT, FLANGE(JN5)

958270801600

958170801600

3,74 $

Unit Price

NUT, CAP

953070880000 953070880000

3,94 $

Unit Price

PARE-SACOCHE

5JC2841K0000 5JC2841K0000

Not available

BOLT, FLANGE

958140801600 958140801600

5,09 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SADDLEBAG 1 of your Yamaha XVZ13TFL of 1999. Let us know if you have any questions.
