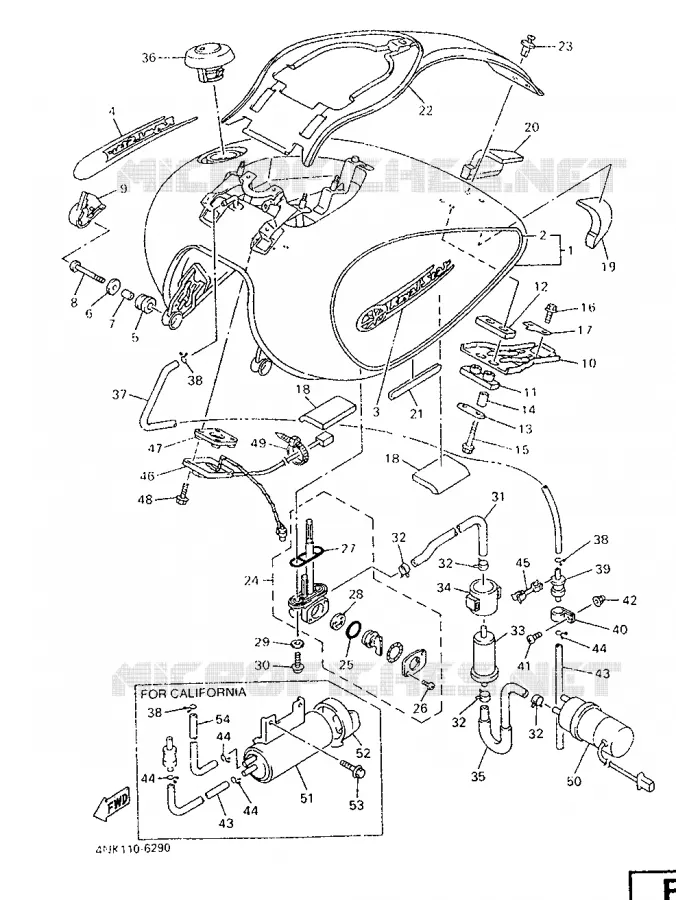

FUEL TANK FOR YAMAHA ROYALSTAR 1996

SEAT

RESERVOIRE A ESSENCE

4NK241101001 4NK241101001

Not available

.JEU D EMBLEMES

4NK242400100 4NK242400100

Not available

.JEU D EMBLEMES

4NK242401000 4NK242401000

Not available

.JEU D EMBLEMES

4NK242402100 4NK242402100

Not available

EMBLEME 1

4NK241610000 4NK241610000

Not available

EMBLEME 2

4NK241620000 4NK241620000

Not available

GROMMET(4AA)

904801854900 904801854900

12,44 $

Unit Price

WASHER, PLATE (J10)

902010669700 902010669700

4,00 $

Unit Price

COLLAR 849833160000

903870602700 903870602700

8,09 $

Unit Price

BOLT, BUTTON

920170603500 920170603500

4,03 $

Unit Price

CACHE LATERALE

4NK241290000 4NK241290000

Not available

SUPPORT 1, RESERVOIR A ESSENCE

4NK241910000 4NK241910000

Not available

DAMPER, LOCATING 1

2GH241810000 2GH241810000

10,05 $

Unit Price

DAMPER, LOCATING 3

2GH241830000 2GH241830000

8,78 $

Unit Price

WASHER, SPECIAL

2GH241860000 2GH241860000

5,92 $

Unit Price

COLLAR (1M1)

903870629900

903870655300

9,22 $

Unit Price

BOLT, FLANGE

958170602500 958170602500

3,86 $

Unit Price

BOLT, FLANGE

958170601400 958170601400

4,16 $

Unit Price

RONDELLE, SPECIALE

4NK241860000 4NK241860000

Not available

SILENT-BLOC

4NK241810000 4NK241810000

Not available

SILENT-BLOC

4NK241820000 4NK241820000

Not available

SILENT-BLOC

4NK241830000 4NK241830000

Not available

MOLD, FUEL TANK

31A241880100 31A241880100

14,14 $

Unit Price

COUVRE RESERVOIR

4NK2171A0000 4NK2171A0000

Not available

RIVET(4JH)

902690707600 902690707600

3,78 $

Unit Price

FUEL COCK ASSY 1

2GU245000100

2GU245000200

62,27 $

Unit Price

SEAL, COCK

3AJ245340000

3AJ245340100

6,69 $

Unit Price

SCREW, PAN HEAD (J10)

985800300800 985800300800

2,10 $

Unit Price

O-RING

4X8245120000 4X8245120000

7,76 $

Unit Price

VALVE PACKING

3AJ245230000

3AC245230000

16,29 $

Unit Price

WASHER, PLATE(3MB)

902020518700 902020518700

1,68 $

Unit Price

SCREW 256241430000

901490601100 901490601100

7,02 $

Unit Price

FUEL PIPE 1

4NK243110000

4NK243110100

43,35 $

Unit Price

CLIP (7K7)

904671104400 904671104400

8,37 $

Unit Price

FILTER ASSY

1FK245600000

1FK245601000

31,95 $

Unit Price

BRACKET, FILTER

1FK245660000 1FK245660000

22,23 $

Unit Price

PIPE 2

4NK243120000 4NK243120000

26,48 $

Unit Price

CAP ASSY

4NK246021000

4NK246022000

213,12 $

Unit Price

PIPE 10

4NK243210000

4NK243210100

56,65 $

Unit Price

CLIP

904671000800

90467100A100

1,27 $

Unit Price

VANNE DE RENVOI COMPLETE

25H241800000 25H241800000

Not available

CLAMP

904611510000

904641501400

2,61 $

Unit Price

SCREW, BINDING

989070501200 989070501200

2,10 $

Unit Price

NUT, CROWN(47X)

901760505400 901760505400

3,58 $

Unit Price

HOSE (L450)

904451027200

904451014400

11,40 $

Unit Price

HOSE (L400)

904451169600

90445116K900

20,33 $

Unit Price

CLIP

904670900600

90467090A200

1,47 $

Unit Price

CLIP

904671000800

90467100A100

1,27 $

Unit Price

CLAMP(2YK)

904641310300 904641310300

5,50 $

Unit Price

SENDER UNIT ASSY,

4NK857520000

4NK857520100

147,15 $

Unit Price

GASKET, SENDER UNIT

5G3857530000 5G3857530000

17,07 $

Unit Price

BOLT, WITH WASHER

901190507100 901190507100

3,58 $

Unit Price

CLAMP(4FM)

904641307300

904641519500

4,93 $

Unit Price

FUEL PUMP COMP.

4NK139070000

4NK139070100

616,20 $

Unit Price

BANDE, RASERVOIR A ESSENCE

1UL241700000 1UL241700000

Not available

COVER, CANISTER

2JU2419E0000 2JU2419E0000

Not available

BOLT, FLANGE

958170601000 958170601000

2,29 $

Unit Price

DURITE

90445110G500 90445110G500

Not available
