FRONT BRAKE CALIPER

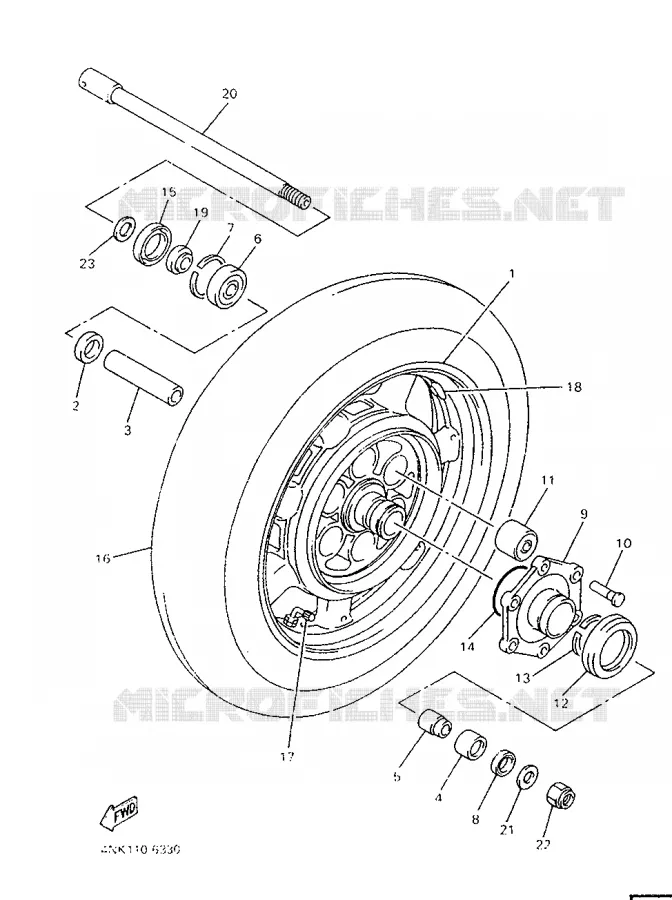

REAR WHEEL FOR YAMAHA ROYALSTAR 1996

REAR BRAKE CALIPER

REAR CAST WHEEL

4NK2533800WG

4NK2533801WG

625,64 $

Unit Price

FLANGE, SPACER

2H7253150000 2H7253150000

3,72 $

Unit Price

COLLAR(4NK)

903872008H00 903872008H00

18,65 $

Unit Price

BEARING

933173267700

933113269800

74,97 $

Unit Price

COLLAR(4NK)

903872007J00 903872007J00

35,11 $

Unit Price

BEARING(3BC)

933063043700 933063043700

42,85 $

Unit Price

CIRCLIP(26H)

990095250000 990095250000

15,10 $

Unit Price

OIL SEAL (25X35X7-256)

931022506400 931022506400

17,46 $

Unit Price

CLUTCH, HUB

26H253660000

26H253660100

260,86 $

Unit Price

PIN (26H)

902491216700 902491216700

11,69 $

Unit Price

DAMPER

1FK253640000 1FK253640000

39,22 $

Unit Price

HUB DUST SEAL

1J7253190100

Not available

CIRCLIP (647)

934404502200 934404502200

15,10 $

Unit Price

O-RING (1J7)

932106834700 932106834700

11,36 $

Unit Price

OIL SEAL(3BC)

931064002700 931064002700

18,01 $

Unit Price

TIRE (150-90B15M-C 74H D404)

941151508M00

941151513D00

491,89 $

Unit Price

TIRE 150-90B15M-C

941151509W00

941151513W00

228,30 $

Unit Price

VALVE, RIM (2JE)

939000001600

939000002500

23,58 $

Unit Price

BALANCER, WHEEL

29L253980000

5MT253980000

16,32 $

Unit Price

BALANCER, WHEEL

29L253981000

5MT253981000

17,01 $

Unit Price

BALANCER, WHEEL

29L253982000

5MT253982000

18,30 $

Unit Price

COLLAR (26H)

90387200J200 90387200J200

16,75 $

Unit Price

AXE, ROUE

4NK253810000 4NK253810000

Not available

WASHER, PLATE (1J7)

90201185R700

902011862000

5,12 $

Unit Price

NUT, SELF-LOCKING

901851816700

901851800900

18,89 $

Unit Price

WASHER(3JP)

929032060000 929032060000

4,88 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Yamaha XVZ13AHC of 1996. Let us know if you have any questions.
