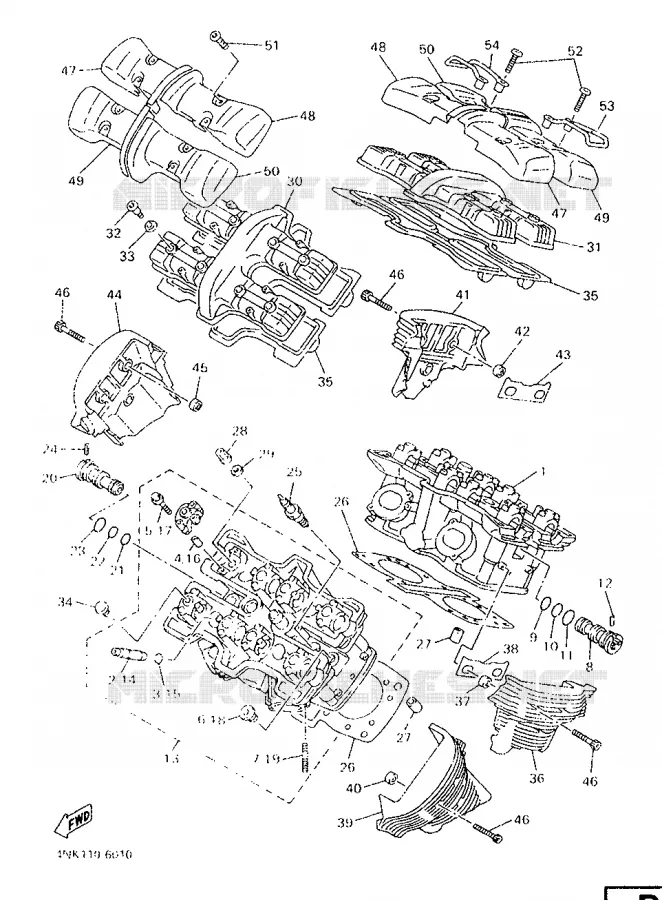

CYLINDER HEAD FOR YAMAHA ROYALSTAR 1996

CRANKSHAFT / PISTON

CYLINDER HEAD ASSY

4NK111100000 4NK111100000

2 109,36 $

Unit Price

GUIDE, INTAKE VALVE

30X111331000 30X111331000

43,86 $

Unit Price

CIRCLIP (26H)

934401211700 934401211700

0,36 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

BOLT, WASHER BASED (4H7)

901050615300 901050615300

4,04 $

Unit Price

PLUG, STRAIGHT SCREW (33M)

903401810100 903401810100

13,17 $

Unit Price

BOLT, STUD(2GG)

956170862000 956170862000

5,65 $

Unit Price

JOINT 1

26H124690100 26H124690100

19,06 $

Unit Price

O-RING (26H)

932101662900 932101662900

7,71 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

O-RING (26H)

932102163100 932102163100

8,16 $

Unit Price

PIN, SPRING

902540300800

916903002500

6,13 $

Unit Price

CYLINDER HEAD ASSY 2

4NK111200000 4NK111200000

2 027,12 $

Unit Price

GUIDE, INTAKE VALVE

30X111331000 30X111331000

43,86 $

Unit Price

CIRCLIP (26H)

934401211700 934401211700

0,36 $

Unit Price

PIN, DOWEL(3XW)

995100801600

918081602300

4,63 $

Unit Price

BOLT, WASHER BASED (4H7)

901050615300 901050615300

4,04 $

Unit Price

PLUG, STRAIGHT SCREW (33M)

903401810100 903401810100

13,17 $

Unit Price

BOLT, STUD(2GG)

956170862000 956170862000

5,65 $

Unit Price

JOINT 1

26H124690100 26H124690100

19,06 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

O-RING (26H)

932102163100 932102163100

8,16 $

Unit Price

PIN, SPRING

902540300800

916903002500

6,13 $

Unit Price

SPARK PLUG DPR7EA-9

947010026200 947010026200

5,32 $

Unit Price

BOUGIE D, ALLUMAGE (ND X22EPR-U9)

947010037900 947010037900

Not available

GASKET, CYLINDER HEAD 1

1NL111810000

1NL111810200

58,35 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

NUT (26H)

901791041400 901791041400

9,77 $

Unit Price

WASHER, PLATE (26H)

90201102G900 90201102G900

7,77 $

Unit Price

COVER, CYLINDER HEAD 1

4NK111910000 4NK111910000

218,56 $

Unit Price

COVER, CYLINDER HEAD 1

4NK111910000 4NK111910000

218,56 $

Unit Price

BOLT(4BP)

90109066F000 90109066F000

10,14 $

Unit Price

RUBBER, MOUNT 1

4KG1111G0000

5EA1111G0000

23,73 $

Unit Price

PLUG (31M)

903381015000 903381015000

3,75 $

Unit Price

GASKET, HEAD COVER 1

4NK111930000 4NK111930000

62,13 $

Unit Price

COUVERCLE LATERAL DE CULASSE 2

4NK111860000 4NK111860000

Not available

DAMPER, ENGINE MOUNT 1

4NK153160000 4NK153160000

48,01 $

Unit Price

GASKET

4NK111950000 4NK111950000

11,72 $

Unit Price

COUVERCLE LATERAL DE CULASSE 3

4NK111870000 4NK111870000

Not available

DAMPER, ENGINE MOUNT 1

4NK153160000 4NK153160000

48,01 $

Unit Price

COUVERCLE LATERAL DE CULASSE 1

4NK111850000 4NK111850000

Not available

DAMPER, ENGINE MOUNT 1

4NK153160000 4NK153160000

48,01 $

Unit Price

GASKET

4NK111950000 4NK111950000

11,72 $

Unit Price

COUVERCLE LATERAL DE CULASSE 4

4NK1111H0000 4NK1111H0000

Not available

DAMPER, ENGINE MOUNT 1

4NK153160000 4NK153160000

48,01 $

Unit Price

BOLT, SOCKET HEAD

913140602000 913140602000

4,00 $

Unit Price

COVER 1

4NK1111M0000 4NK1111M0000

207,20 $

Unit Price

COVER 2

4NK1111N0000 4NK1111N0000

216,17 $

Unit Price

COVER 3

4NK1111P0000 4NK1111P0000

130,24 $

Unit Price

COVER 4

4NK1111R0000 4NK1111R0000

207,20 $

Unit Price

BOLT, BUTTON HEAD(4NK)

920140601400 920140601400

3,94 $

Unit Price

BOLT, BUTTON HEAD(4NK)

920140603000 920140603000

2,39 $

Unit Price

BRACKET, CYLINDER HEAD COVER

4NK111520000 4NK111520000

88,14 $

Unit Price

BRACKET, CYLINDER HEAD COVER 2

4NK111420000 4NK111420000

88,14 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Yamaha XVZ13AHC of 1996. Let us know if you have any questions.
