SWINGARM

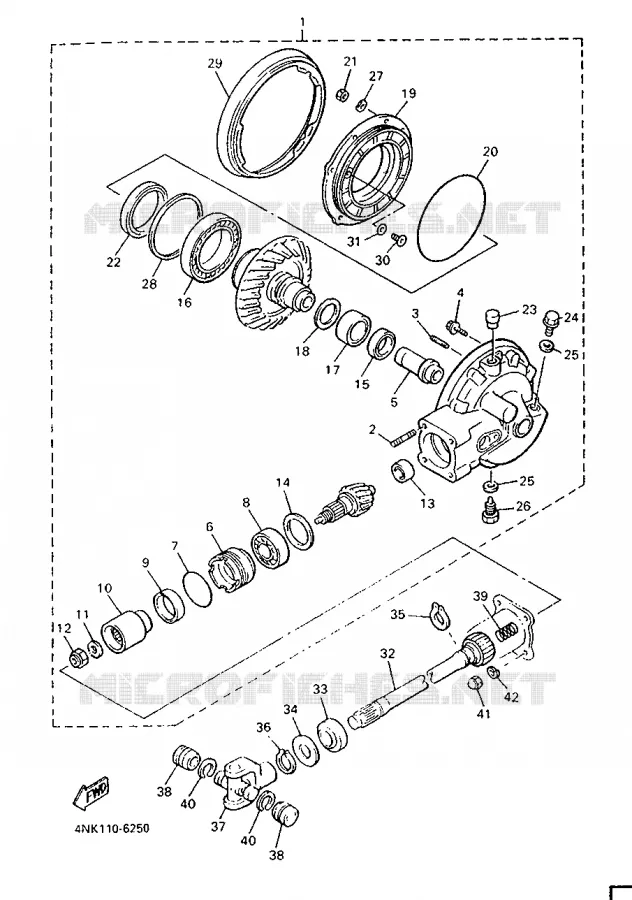

FINAL DRIVE SHAFT / GEAR COUPLING FOR YAMAHA ROYALSTAR 1996

REAR SHOCK ABSORBER

REAR AXLE GEAR CASE

4NK461010000

999990304900

1 794,18 $

Unit Price

BOLT, STUD (5E5)

901161059300

901161036100

12,94 $

Unit Price

BOLT, STUD(2GG)

901160842700

956170862000

5,65 $

Unit Price

FLANGE BOLT

90105100A400 90105100A400

14,03 $

Unit Price

.COLLIER DE GUIDE

1FK461530000 1FK461530000

Not available

RETAINER, BEARING

4H7461250000 4H7461250000

37,45 $

Unit Price

O-RING (4H7)

932106042600 932106042600

11,29 $

Unit Price

BRG, R-B 6305RB1 62MM 245G KY

933063053300 933063053300

129,72 $

Unit Price

OIL SEAL (4H7)

931013809800 931013809800

24,06 $

Unit Price

COUPLING, GEAR

4H7461230100 4H7461230100

260,08 $

Unit Price

WASHER, PLATE(3JP)

90201166R500 90201166R500

16,44 $

Unit Price

NUT(3JP)

901791666100 901791666100

24,94 $

Unit Price

BEARING ASSY

2H7461020000 2H7461020000

67,20 $

Unit Price

SHIM, THRUST (0.30T)

1J717537Y030 1J717537Y030

9,51 $

Unit Price

SHIM, THRUST (0.40T)

1J717537Y040 1J717537Y040

9,51 $

Unit Price

SHIM, THRUST (0.50T)

1J717537Y050 1J717537Y050

9,51 $

Unit Price

OIL SEAL (30X42X7-1J7)

931013008400 931013008400

21,44 $

Unit Price

BRG, R-B 16014C2 110MM 433G KY

933160140300 933160140300

113,04 $

Unit Price

BRG, CYL-CAL ROLLER 80G KY

933114372900 933114372900

97,78 $

Unit Price

WASHER, THRUST

22U461180012 22U461180012

10,05 $

Unit Price

WASHER, THRUST

22U461180014 22U461180014

10,05 $

Unit Price

WASHER, THRUST

22U461180016 22U461180016

10,05 $

Unit Price

WASHER, THRUST

22U461180020 22U461180020

10,05 $

Unit Price

BEARING HOUSING

1FK461520100 1FK461520100

286,69 $

Unit Price

O-RING(59V)

932115469800 932115469800

24,46 $

Unit Price

NUT(6TA)

953370860000 953370860000

5,60 $

Unit Price

OIL SEAL (4H7)

931027016700 931027016700

31,18 $

Unit Price

BREATHER COMP.

56W175900000 56W175900000

21,49 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

903401413200 903401413200

8,37 $

Unit Price

GASKET

214111980100 214111980100

3,98 $

Unit Price

PLUG, STRGHT SCREW

903401414900 903401414900

24,80 $

Unit Price

WASHER(6TA)

929070870000 929070870000

0,68 $

Unit Price

SHIM, RING GEAR (0.30T)

1J746117Y030 1J746117Y030

5,70 $

Unit Price

SHIM, RING GEAR (0.40T)

1J746117Y040 1J746117Y040

5,70 $

Unit Price

SHIM, RING GEAR (0.50T)

1J746117Y050 1J746117Y050

5,70 $

Unit Price

COVER, HOUSING

1FK461540000 1FK461540000

33,31 $

Unit Price

STOPPER, RING GEAR

1FK461560000 1FK461560000

19,48 $

Unit Price

SHIM, STOPPER

1FK461570015 1FK461570015

0,59 $

Unit Price

SHIM, STOPPER

1FK461570020 1FK461570020

0,59 $

Unit Price

SHAFT, DRIVE

4NK461720000

4XY461720000

365,00 $

Unit Price

OIL SEAL(1FK)

931082300700

931084301300

26,93 $

Unit Price

WASHER, PLATE (4H7)

90201231A200 90201231A200

3,74 $

Unit Price

CIRCLIP (4H7)

934102305600 934102305600

3,94 $

Unit Price

CIRCLIP (537)

934102203900 934102203900

7,20 $

Unit Price

CROSS JOINT COMP.

4X7461800000 4X7461800000

290,08 $

Unit Price

BEARING(2HR)

933999992600 933999992600

35,32 $

Unit Price

SPRING, COMPRESSION (2H7)

905011649100 905011649100

4,03 $

Unit Price

CIRCLIP (4X7)

934402008800 934402008800

6,44 $

Unit Price

NUT, CROWN(2GG)

901761007500 901761007500

10,04 $

Unit Price

YBS67-10 WASHER, SPRING

929901010000 929901010000

3,94 $

Unit Price
