TRANSMISSION

CROSS SHAFT FOR YAMAHA ROYALE VENTURE 1989

GEAR SHIFT SELECTOR DRUM / FORKS

HOLDER

2WE175240000 2WE175240000

28,75 $

Unit Price

SPRING, COMPRESSION (5A8)

905017563800 905017563800

54,57 $

Unit Price

CAM, DRIVEN

2WE175270000 2WE175270000

52,51 $

Unit Price

MIDDLE GEAR COMP.

26HW17510000

26HW17510200

465,72 $

Unit Price

WASHER, PLATE(1FK)

90201252K400 90201252K400

22,34 $

Unit Price

WASHER(1FK)

902092128100 902092128100

29,96 $

Unit Price

BRG, R-B 6209RSH2-C2 85MM 412G

933062090100 933062090100

121,58 $

Unit Price

NUT (4X7)

901794432800 901794432800

37,28 $

Unit Price

SHIM, PINION

4X7175310015 4X7175310015

4,26 $

Unit Price

SHIM, PINION

4X7175310030 4X7175310030

4,26 $

Unit Price

SHIM, PINION

4X7175310050 4X7175310050

4,26 $

Unit Price

BRG, TAPERED ROLLER 62MM KY

933320002800 933320002800

61,31 $

Unit Price

WASHER, PLATE (1J7)

902012563400 902012563400

13,33 $

Unit Price

SPACER, EXPANSION

2H7175710100 2H7175710100

17,65 $

Unit Price

BRG, TAPERED ROLLER 52MM KY

933320002400 933320002400

65,65 $

Unit Price

YOKE, JOINT

26H175560000 26H175560000

147,84 $

Unit Price

WASHER, PLATE (1J7)

902011463300 902011463300

7,77 $

Unit Price

NUT

901791431700 901791431700

22,18 $

Unit Price

HOUSING, BEARING

26H175510000 26H175510000

116,13 $

Unit Price

OIL SEAL (35X63X16.5-1J7)

931013508500 931013508500

27,32 $

Unit Price

O-RING (2H7)

932107136000 932107136000

16,40 $

Unit Price

SHIM, PINION (0.15T)

26H175310015

3UF175311000

3,53 $

Unit Price

SHIM, PINION (0.30T)

26H175310030

3UF175313000

4,03 $

Unit Price

BOLT, FLANGE(6TA)

958110803000

958170803000

4,16 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

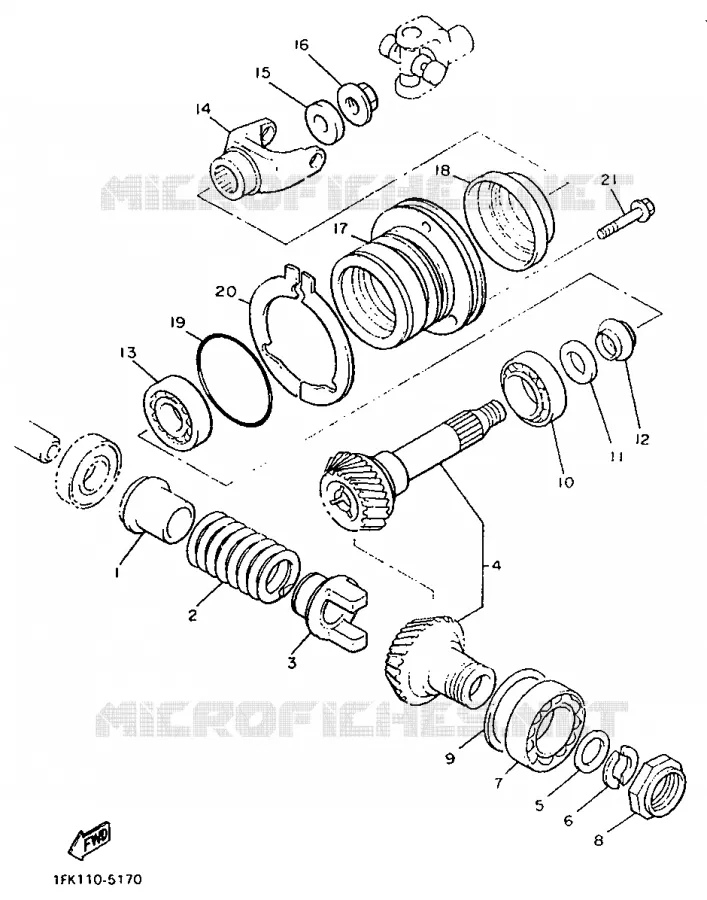

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CROSS SHAFT of your Yamaha XVZ13TD of 1989. Let us know if you have any questions.
